Home > Products > Electrostatic Powder Coating Equipment > Dual Powder Guns Electrostatic Box Feeder Vibrating Powder Coating System
Dual Powder Guns Electrostatic Box Feeder Vibrating Powder Coating System
- Ningbo / Shanghai
- Credit Card
You May Like
-
Triboelectric Powder Coating Gun
-
Electrostatic Powder Coating Equipment Spray Gun for Matallic Powder
-
XT-888 Manual Electrostatic Aluminium Powder Coating Machine
-
Good Quality High Voltage Cascade for Electrostatic Powder Spray Gun XT-201
-
Electrostatic Powder Coating Machine Circuit Board for XT-201
-
Electrostatic Powder Coating Machine Circuit Board for XT-101
Product Details
| Condition | New | Type | Other, electrostatic powder coating machine | |
| Substrate | Iron | Coating | Powder Coating | |
| Place of Origin | Jiangsu, China | Brand Name | Xintu | |
| Model Number | XT-101DV | Voltage | 110V/220V | |
| Power(W) | 45W | Dimension(L*W*H) | 51*51*66cm | |
| Weight | 55 kg | Certification | CE ISO9001 SGS | |
| Warranty | 1 Year | After-sales Service Provided | Overseas third-party support available |
Product Description

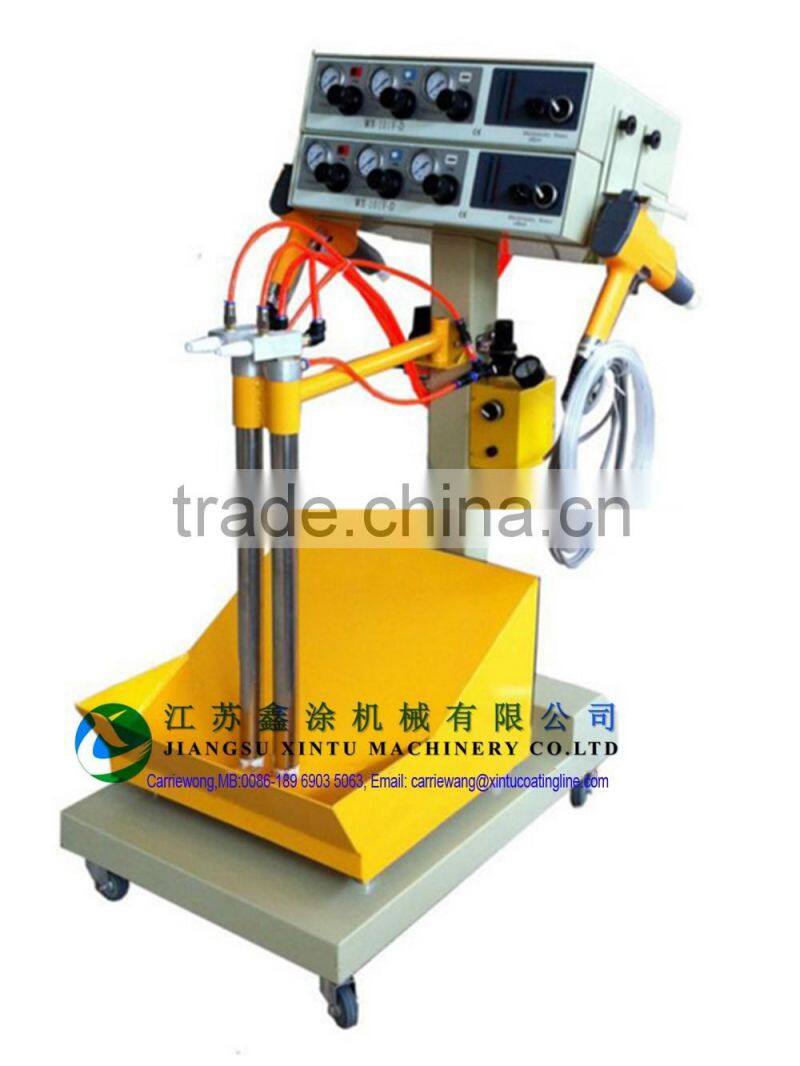

Dual system Vibratory powder coating gun
Model:XT-101DV
1.Features::
The machine be used on powder coating production which need frequently and quickly change colors ,it's designed use original powder box,minimal color change times,Save time.
For direct transport from the original powder box, no need use powder hopper,Complete emptying of powder box thanks to the vibrating table.
dual system:For two workers operate this machine at the same time
2.. TECHNICAL REFERENCE
INPUT VOLTAGE | FREQUENCY | POWER | OUTPUT HV. | OUTPUT CURRENT |
110/220V AC | 50/60HZ | 45W | 0~100KV | 0~150μA |
SOLENOID VALVE | AIR-IN PRESSURE | AIR-OUT PRESSURE | AIR CONSUMPTION | POWDER-OUT RADIOV DC |
0-0.6MPA | 0-0.4MPA | 13.2M³/H (0.4MPA) | 500G/MIN | |
POLARITY | SPRAY GUN G.W | TOTAL G.W | PACKING DIMENSION | DELIVERY TIME |
NEGATIVE | Approx. 750G | Approx.55~68KG | 51*51*66CM | 2~3 DAY |
Vibrator Motor:
Work temperature range: -10°C - 45°C
3. STANDARD CONFIGURATION
CONTROL GENERATOR 1 SET
POWDER SPRAY GUN 1 SET
POWDER FEEDING BOX 1 SET
MOVABLE TROLLEY 1 SET
CABLES,HOSE & ACCESSORIES 1 SET
OPEARATION MANUAL 1 SET

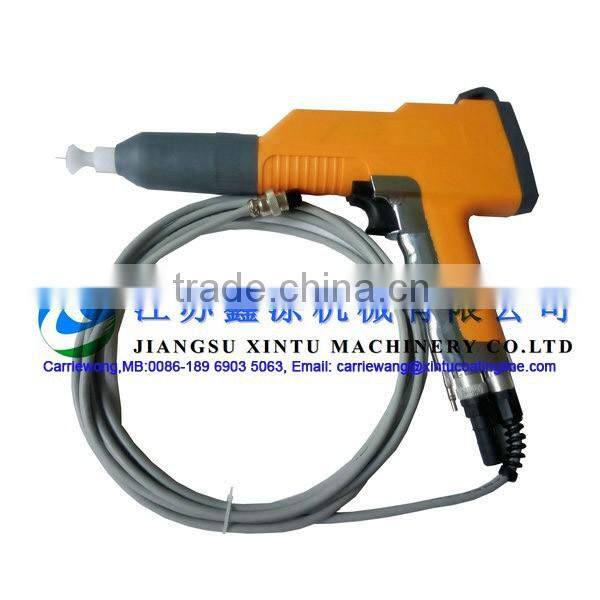

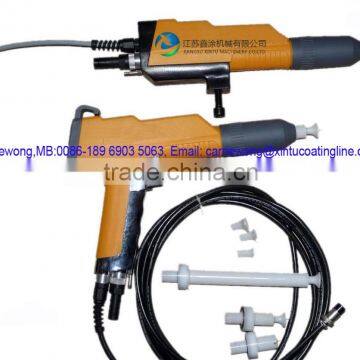

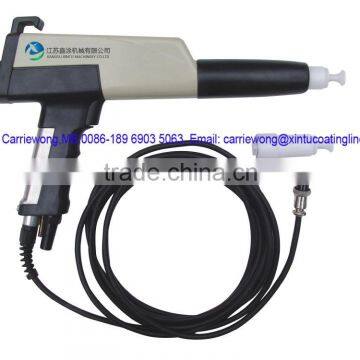

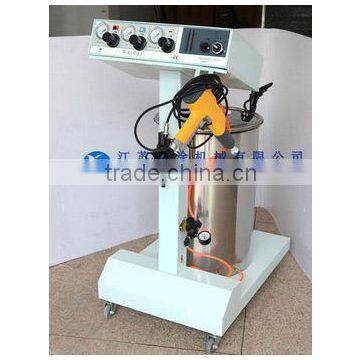

4. REFERENCE PHOTOS

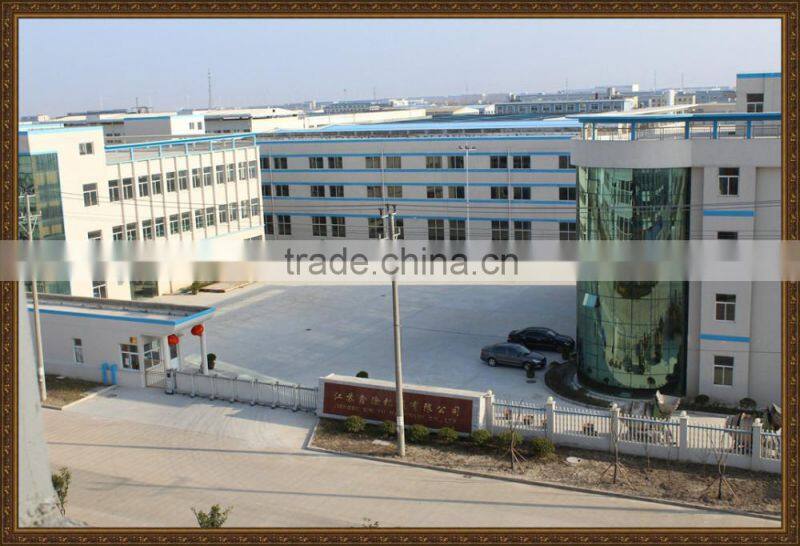

5. COMPANY REFERENCE
6. CONTACT INFORMATION
Contact Us
- Jiangsu Xintu Machinery Co., Ltd.
- Contact nameHenry zhang Chat Now
- Phone0086-0513-83833325
- AddressJiang Feng Road 15 ,Binghai industrial zone, Nantong, Jiangsu
