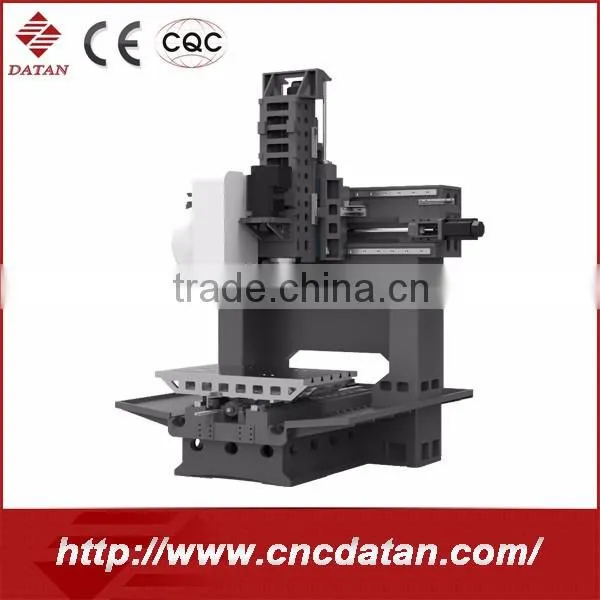

[ DATAN ] GQ700 Series Cnc Machining Center

Name: [ DATAN ] GQ700 Series Cnc Machining Center
Brand: DATAN
SKU: 133923189

US$ 30,000 - 32,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Vertical

Place of Origin:

Zhejiang, China

Hangzhou Datian CNC Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai/ningbo

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Vertical

Place of Origin Zhejiang, China

Brand Name DATAN

Model Number GQ700

Voltage 220V/380V

Power(W) 7.5/11 KW

Dimension(L*W*H) 3200x2400x4300 mm

Weight 80000 kg

Certification ISO CE

Warranty 1 Year

After-sales Service Provided Engineers available to service machinery overseas

An upgraded version of medium-sized vertical machining center.
High rigidity as high-speed milling machine.
Can be full-stroke high-precision machining.
Processing efficiency is increased by 30% comparing to the same specification of vertical machining center.
The flatness of the milled plane is enhanced by 10%.

Machine parameters

Model No.			GQ600	GQ700	GQ800	GQ1300	GQ1500

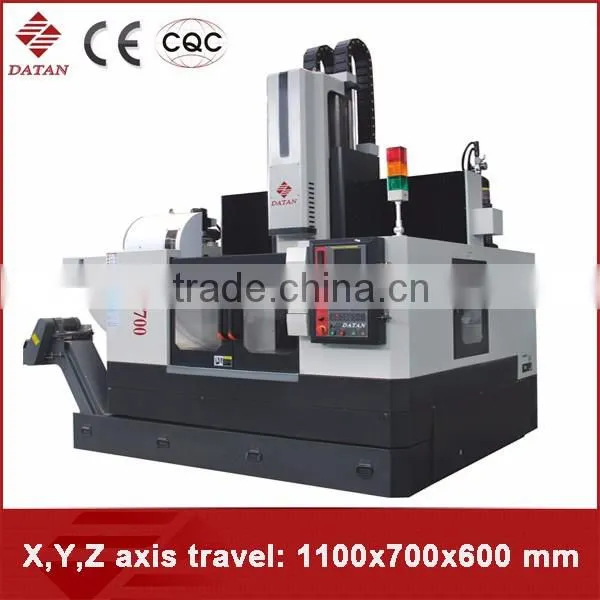

Capacity	X axis travel	mm	1000	1100	1300	1300	1600
	Y axis travel	mm	600	700	800	1300	1500
	Z axis travel	mm	50	600	600	600	600
	Spindle nose to worktable surface	mm	100~600	150-750	150-750	150-750	150-750
Worktable	Worktable size(L*W)	mm	1000×600	1100*700	1300*800	1300*1300	1500*1500
	Max load on the table	Kg	500	900	1000	1500	1800
	T-slot size	mm	518120	518120	518140	91890	1322100
Spindle	Spindle speed	rpm	100-10000	100-10000	100-10000	160-8000	160-8000
	Spindle taper/spindle shank		NO.40	NO.40	NO.40	NO.50	NO.50
	Max spindle inner diameter	mm	70	70	80	100	100
	Spindle motor	kw	7.5/11	7.5/11	7.5/11	11/15	11/15
Feed rate	X.Y.Z rapid traverse	m/min	36/36/24	36/36/24	36/36/24	20/20/15	20/20/15
Feed rate	Max cutting feed rate	mm/min	10-10000	10-10000	10-10000	10-10000	10-10000
A.T.C	Tool storage capacity	Pc	Arm type24	Arm type24	Arm type24	Arm type24	Arm type24
	Max tool diameter	mm	150(80)	150(80)	150(80)	150(80)	150(80)
	Max tool length	mm	300	300	300	300	300
	Tool change time(T-T)	sec	4.5	4.5	4.5	4.5	4.5
Accuracy	Positioning accuracy	mm	0.025	0.025	0.025	0.025	0.025
Accuracy	Repeatability positioning accuracy	mm	0.015	0.015	0.015	0.015	0.015
Machine size	Machine height	mm	4300	4300	4300	4600	4600
	Power requirement	KVA	25	25	30	30	30
	Space requirement(L*W)	mm	3000*2200	3200*2400	3400*2600	4000*4500	4500*4600
	Net machine weight	T	6	8	9	13	15.5
	X.Y.Z axis drive motor	Kw	7.5/3.5/.35	7.5/3.5/.35	7.5/3.5/.35	7.5/3.5/.35	7.5/3.5/.35

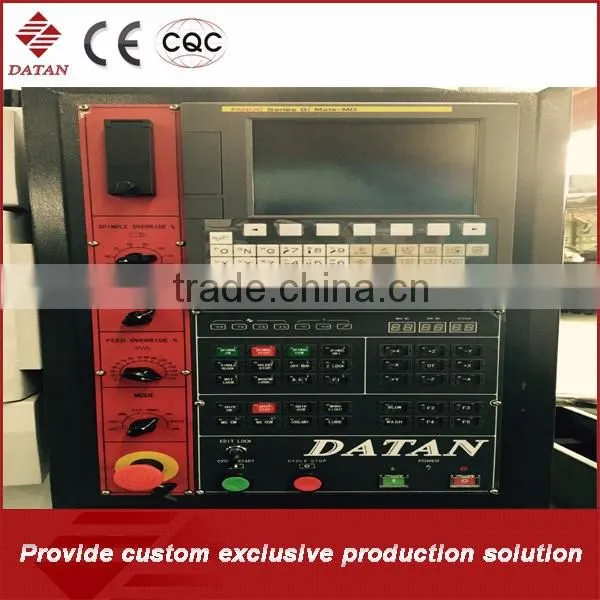

	Contorl system	FAUNC-0i mate MD
