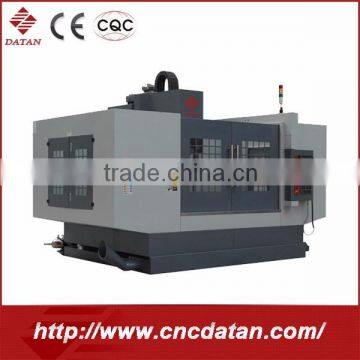

[ DATAN ] ME1500 Series Large Cnc Machining Center

Name: [ DATAN ] ME1500 Series Large Cnc Machining Center
Brand: DATAN
SKU: 133923195
Availability: InStock

Hangzhou Datian CNC Machine Tool Co., Ltd.

US$ 35,000 - 49,800 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Vertical

Place of Origin:

Zhejiang, China

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai /ningbo

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Vertical

Place of Origin Zhejiang, China

Brand Name DATAN

Model Number ME1500

Voltage 220V/380V

Power(W) 11/15 KW

Dimension(L*W*H) 4250x3250x2550 mm

Weight 12000 kg

Certification ISO CE

Warranty 1 Year

After-sales Service Provided Engineers available to service machinery overseas

DATAN ME1300 series large cnc machining center

Y axis is treated with four guide rails, together with the super wide guide rail and base, all means it can carry large workpieces;
Rails are scraping by artificial precision, thus have higher contact stiffness and precision stability;
Gear spindle box and ZF gearbox are available for large cutting force customers.

Machine parameters

Model No.			ME1300	ME1500	ME1600	ME1800
Capacity	X axis travel	mm	1300	1500	1600	1800
	Y axis travel	mm	700	800	900	920
	Z axis travel	mm	610	700	700	700
	Spindle nose to table surface	mm	150-760	170-870	180-880	180-880
	Spindle nose to column surface	mm	785	880	980	1025
Worktable	Table size (L×W)	mm	1400x650	1700x800	1700x800	1900x900
	Max load on the table	kg	1000	1500	2200	3000
	T-slot size	mm	18x5x100	22x5x135	22x5x135	22x7x120
Spindle	Spindle speed	rpm	60-8000	6000	6000	6000
	Spindle taper/spindle shank	mm	7/24 BT40	7/24 BT50	7/24 BT50	7/24 BT50
	Max spindle inner diameter	mm	80	80	100	100
	Spindle motor	kw	11(15)	11(15)	15(18.5)	15(18.5)
Feed rate	X,Y,Z rapid traverse	M/min	18/18/15	18/18/15	15/15/12	15/15/12
Feed rate	Max cutting feed rate	M/min	10	10	6	6
A.T.C	Tool storage capacity	pc	Arm type 24	Arm type 24	Arm type 24	Arm type 24
	Max tool diameter	mm	150(80)	150(80)	150(80)	150(80)
	Max tool length	mm	300	300	300	300
	Tool change time(T-T)	sec	2.5	3.5	3.5	3.5
Accuracy	Positioning accuracy	mm	0.01	0.015	0.015	0.015
Accuracy	Repeatability positioning accuracy	mm	0.005	0.006	0.006	0.006
Machine size	Machine height	mm	2500	2550	2550	2770
	Space requirment(L×W)	mm	3900X2730	4250X3250	4910X3500	4960X3500
	Net machine weight	kg	10000	12000	12500	14200
	Power requirment	KVA	30	40	40	45
	Drive motor	kw	2.0/3.5/2.0	4.0/4.0/4.0	4.0/7.0/4.0	4.0/7.0/4.0
	Control system		FANUC 0iMD	FANUC 0iMD	FANUC 0iMD	FANUC 0iMD
