[ DATAN ] SCK250 Series Slant Bed Cnc Lathe

[ DATAN ] SCK250 Series Slant Bed Cnc Lathe thumbnail-1
[ DATAN ] SCK250 Series Slant Bed Cnc Lathe thumbnail-2
[ DATAN ] SCK250 Series Slant Bed Cnc Lathe thumbnail-3
[ DATAN ] SCK250 Series Slant Bed Cnc Lathe thumbnail-4
[ DATAN ] SCK250 Series Slant Bed Cnc Lathe thumbnail-5
[ DATAN ] SCK250 Series Slant Bed Cnc Lathe thumbnail-6
[ DATAN ] SCK250 Series Slant Bed Cnc Lathe photo-1

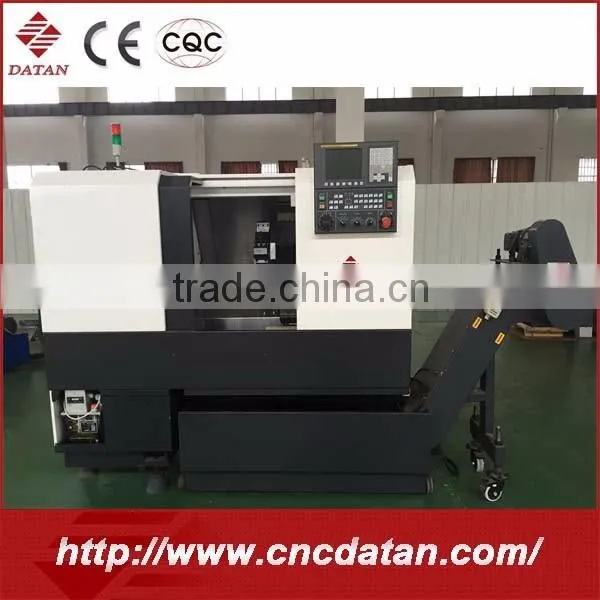

[ DATAN ] SCK250 Series Slant Bed Cnc Lathe photo-2

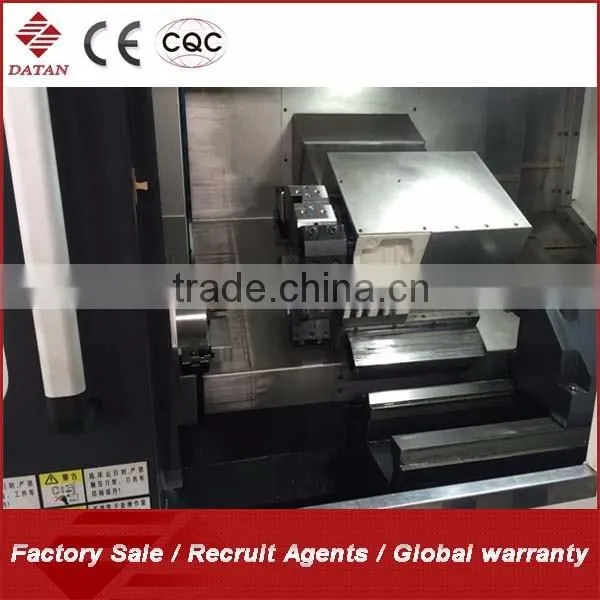

[ DATAN ] SCK250 Series Slant Bed Cnc Lathe photo-3

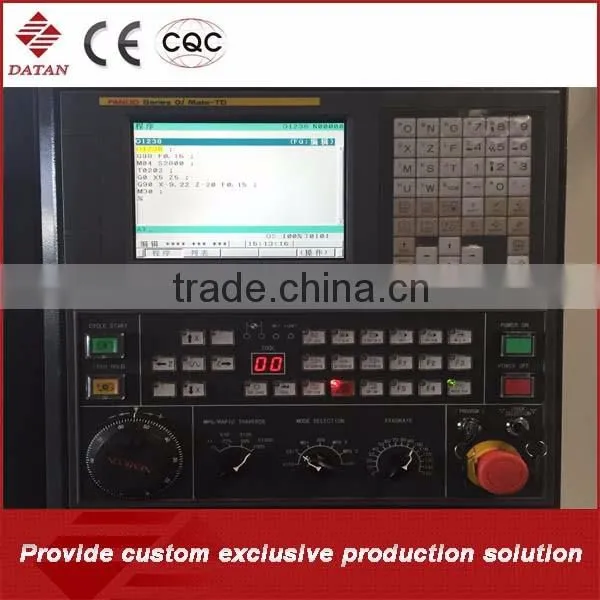

[ DATAN ] SCK250 Series Slant Bed Cnc Lathe photo-4

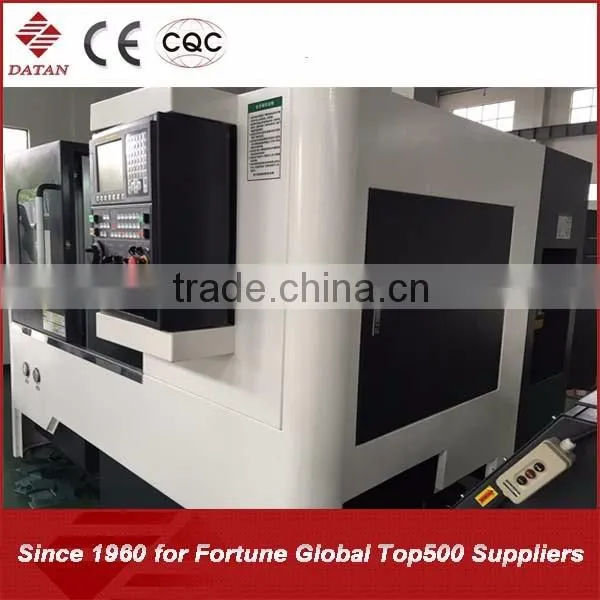

[ DATAN ] SCK250 Series Slant Bed Cnc Lathe photo-5

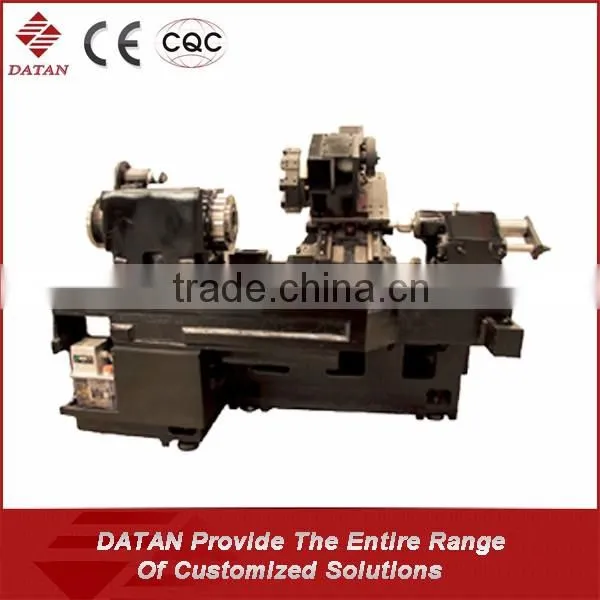

[ DATAN ] SCK250 Series Slant Bed Cnc Lathe photo-6
US$ 11,000 - 28,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Turning Center
CNC or Not:
CNC
Contact Supplier Request Quote Chat Now
Hangzhou Datian CNC Machine Tool Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Turning Center
CNC or Not CNC
Automatic Grade Automatic
Max. Swing Diameter 500 mm
Place of Origin Zhejiang, China
Brand Name DATAN
Model Number SCK250
Voltage 220V/380V
Power(W) 11 kw
Dimension(L*W*H) 2290x1900x1780 mm
Weight 3500 kg
Certification ISO CE
After-sales Service Provided Engineers available to service machinery overseas
[ DATAN ] SCK250 series slant bed cnc lathe

DATAN SCK250 series cnc lathe slant bed.

  1. Equipped with automatic lubrication system,cooling chip removal device,full closed protect,self diagnosis tips and warnings.
  2. Provide sustained guide and ball screw lubrication, ensure machine is always in good working condition, improve the automation level of Mechanical processing, ensure the machine long time production and processing.



  [ DATAN ] SCK250 series slant bed cnc lathe

Machine parameters
Markter Type
SCK160 SCK200 SCK250 SCK320 SCK400 SCK600

Processin

grange

Max swing diameter

over bed

 (mm) Φ380 Φ480

Φ 500

 Φ520 Φ630 Φ800

Swing diameter

of sliding plate

 (mm) Φ140 Φ160 Φ 280 Φ280 Φ320 Φ680

Max turning diameter

 (mm) 380 480 360  - -   -
Max cutting length (mm)

280(post)

200(Turret)

350(post)

225(Turret)

 430 500/750 650/1000 1500
Spindle Spindle speed range (r/mm) 50-6000 50-4200 3000 1800 5~800
Spindle bore (mm) Φ 56 Φ 63 Φ 62 Φ 86 Φ 100
Work clamping form - Manual /  Pneumatic / Hydraulic

Spindle motor

power(servo)

 (Kw) 3.7 7.5 11 7.5 Op:11 15 Op:22 22
Feed Z-axis stroke (mm) 350 400 500 500/750 700/1050 1000/1500
X-axis stroke (mm) 350 400 220 220 320 400
Rapid moving speed (m/min) 20 10
Carriage

Repeatability

accuracy X/Z

 (mm) 0.005 0.003
Carriage type - Tool post or Horizontal six/eight-station
Tool dimension (mm) 20x20 25x25 32x32
Change time (s) 0.5 0.3 0.5 0.6
Workplaces

Workplaces precision

 - IT 6

Wordplace sroughness

 - Ra0.8(N) / Ra1.6(H)
Control CNC System - GSK 980TDc / KND / SYNTEC / FANUC
Dimensions of Tool(LxWxH) (mm) Please ask for details
Weight (kg) 1700 2600 3500 4000 5000 10000



Product Description

[ DATAN ] SCK250 series slant bed cnc lathe



Finished parts

  [ DATAN ] SCK250 series slant bed cnc lathe

Related Products

[ DATAN ] SCK250 series slant bed cnc lathe [ DATAN ] SCK250 series slant bed cnc lathe [ DATAN ] SCK250 series slant bed cnc lathe



Company Information

 [ DATAN ] SCK250 series slant bed cnc lathe

[ DATAN ] SCK250 series slant bed cnc lathe



FAQ

1. Confirm the purchase

  1. FOB Shanghai / ningbo or CIF, LCL or FCL shipping.
  2. Payment terms: T/T or L/C or other ways contact us.
  3. Package: Plywood case.
  4. Delivery time: Within 20 working days after the down payment. (Actual delivery time depends on actual order.

2. Check the acceptance
Receive machine,please check:

  1. Examine the content of the packing list,the product quantity to both consistent,and accessories;
  2. Machine tool details if they 're normal, If have the trace of replacement and maintenance, If have other effects use of the problem.

If happens above declare,please contact us immediately.



3. Customer service

  1. Warranty period: We can send you the machines' components for free in the first one year.
  2. After-sell service: We can supply site commissioning and training abroad for the buyer, but the buyer needs to pay the relevant expense.
  3. The buyer will pay for:Air tickets, Food, board & lodging, and local transportation in buyer's country.
