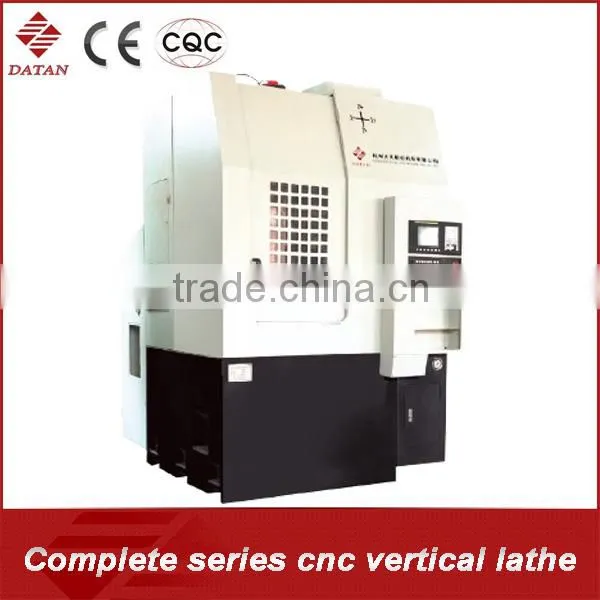

[ DATAN ] VCK Series Vertical Cnc Lathe Machine

Name: [ DATAN ] VCK Series Vertical Cnc Lathe Machine
Brand: DATAN
SKU: 133923141
Availability: InStock

Hangzhou Datian CNC Machine Tool Co., Ltd.

US$ 20,000 - 70,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Vertical

CNC or Not:

CNC

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Vertical

CNC or Not CNC

Automatic Grade Automatic

Max. Swing Diameter 1300 mm

Place of Origin Zhejiang, China

Brand Name DATAN

Model Number VCK

Voltage 380V

Power(W) 11~60 kw

Dimension(L*W*H) Optional

Weight Optional

Certification CE ISO

After-sales Service Provided Engineers available to service machinery overseas

Machine parameters

Model No.		VCK 513	VCK 514	VCK 516	VCK 518	VCK 5110
Capacity	Standard Chuck	10", 12"	12", 15"	21", 24 "	24"	Φ800mm Φ1000mm
	Max. Swing Dia.	550 mm	750 mm	900 mm	1100 mm	1300 mm
	Max.Machining Dia.	400 mm	500 mm	700 mm	900 mm	1100 mm
	Max.Workpiece hight	480 mm	600 mm	800 mm	1000 mm	1000mm
Accuracy	Position	0.01 mm	0.01 mm	0.01 mm	0.01 mm	0.01mm
Accuracy	Repeating	±0.003 mm	±0.003 mm	±0.003 mm	±0.003 mm	±0.003mm
Travel	X axis	350 mm	620 mm	750 mm	850 mm	1000 mm
Travel	Z axis	550 mm	800 mm	1000 mm	1000 mm	1200 mm
Spindle	Spindle Speed	2500 rpm	2000 rpm	1000 rpm	800 rpm	600 rpm
	Spindle Speed shifting	Stepless	Stepless	Stepless	Stepless	Stepless
	Spindle Power	11/15kw	11/15kw	30/37kw	45/60kw	45/60kw
Servo Turret	Tool Station	horizontal 8	vertical6 (horizonta 8)	vertical 5	vertical 5	vertical 5
	Tool Size	25×25mm	25×25 mm	32×32 mm	32×32 mm	32×32 mm
	Boring Bar Size	Φ40 /Φ32 mm	Φ40 /Φ32 mm	Φ50 /Φ40 mm	Φ50 /Φ40 mm	Φ50 /Φ40 mm
Feedrate	Rapid Feedrate X/Z	18 m/min	18 m/min	15 m/min	12 m/min	12 m/min
Feedrate	Cutting Feedrate	15 m/min	15 m/min	15 m/min	15 m/min	15 m/min
Power input	Power	15 KVA	30 KVA	50 KVA	70 KVA	70 KVA
Power input	Air pressure	0.5 Mpa	0.5 Mpa	0.5 Mpa	0.5 Mpa	0.5 Mpa
Machine size	Height	2320mm	2670 mm	3500 mm	3800 mm	4000 mm
	Length	2060 mm	1960 mm	2330 mm	2600 mm	3000 mm
	Width	1580 mm	1650 mm	1650 mm	2200 mm	2600 mm
Tank	Cooling water	180 L	180 L	200 L	200 L	200 L
