[ DATAN ] SCK160 Series Slant Bed Cnc Lathe

Name: [ DATAN ] SCK160 Series Slant Bed Cnc Lathe
Brand: DATAN
SKU: 133923171
Availability: InStock

Hangzhou Datian CNC Machine Tool Co., Ltd.

US$ 11,000 - 28,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Turning Center

CNC or Not:

CNC

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Turning Center

CNC or Not CNC

Automatic Grade Automatic

Max. Swing Diameter 380 mm

Place of Origin Zhejiang, China

Brand Name DATAN

Model Number SCK160

Voltage 220V/380V

Power(W) 3.7 kw

Dimension(L*W*H) 1920x1550x1650 mm

Weight 1700 kg

Certification ISO CE

After-sales Service Provided Engineers available to service machinery overseas

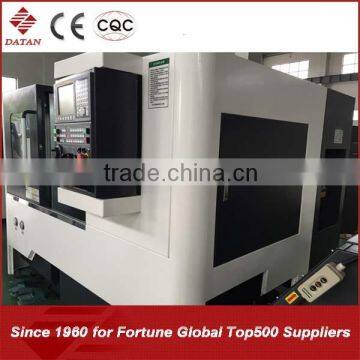

DATAN SCK160 series cnc lathe slant bed.

Equipped with automatic lubrication system,cooling chip removal device,full closed protect,self diagnosis tips and warnings.
Provide sustained guide and ball screw lubrication, ensure machine is always in good working condition, improve the automation level of Mechanical processing, ensure the machine long time production and processing.

Machine parameters

Markter			Type
Markter			SCK160	SCK200	SCK250	SCK320	SCK400	SCK600
Processin grange	Max swing diameter over bed	(mm)	Φ380	Φ480	Φ 500	Φ520	Φ630	Φ800
	Swing diameter of sliding plate	(mm)	Φ140	Φ160	Φ 280	Φ280	Φ320	Φ680
	Max turning diameter	(mm)	380	480	360	-	-	-
	Max cutting length	(mm)	280(post) 200(Turret)	350(post) 225(Turret)	430	500/750	650/1000	1500
Spindle	Spindle speed range	(r/mm)	50-6000	50-4200		3000	1800	5~800
	Spindle bore	(mm)	Φ 56	Φ 63		Φ 62	Φ 86	Φ 100

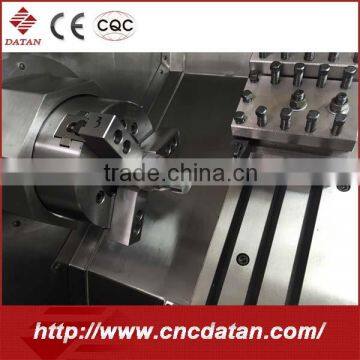

	Work clamping form	-	Manual / Pneumatic / Hydraulic
	Spindle motor power(servo)	(Kw)	3.7	7.5	11	7.5 Op:11	15 Op:22	22
Feed	Z-axis stroke	(mm)	350	400	500	500/750	700/1050	1000/1500
	X-axis stroke	(mm)	350	400	220	220	320	400
	Rapid moving speed	(m/min)	20					10
Carriage	Repeatability accuracy X/Z	(mm)	0.005			0.003

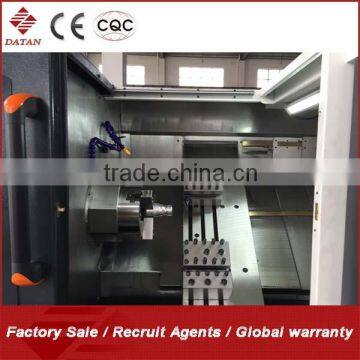

	Carriage type	-	Tool post or Horizontal six/eight-station
	Tool dimension	(mm)	20x20	25x25				32x32
	Change time	(s)	0.5			0.3	0.5	0.6
Workplaces	Workplaces precision	-	IT 6
Workplaces	Wordplace sroughness	-	Ra0.8(N) / Ra1.6(H)

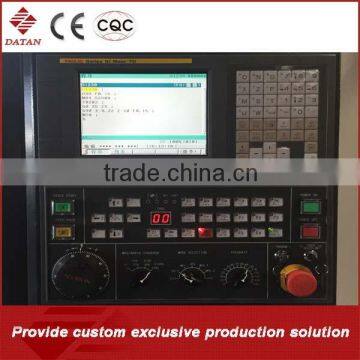

Control	CNC System	-	GSK 980TDc / KND / SYNTEC / FANUC
Dimensions of Tool(LxWxH)		(mm)	Please ask for details
Weight		(kg)	1700	2600	3500	4000	5000	10000
