Specifications of wire straightening machine , wire making machine , ring straightening machine
reasonable price
good quality
long life

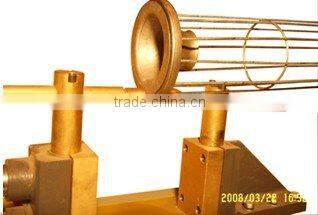

filter cage making machine
atomatic running

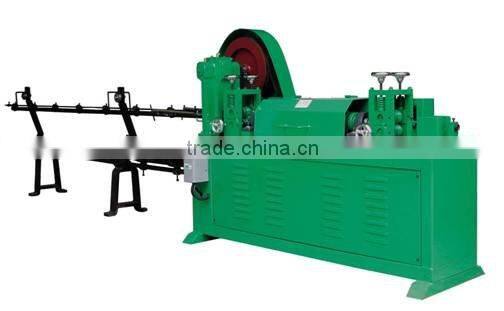

wire straightening machine
!)straighten raw steel wires
2)cut it into set length
it is used to straighten raw steel wires and cut the wires into certain lengths, such straightened wires are then used as bars to form filter cage bodies
steel wire thickness :3-5mm
Input voltage | 380V(3p) 220V(3p) | Rated capacity | 2.2 kva |
Power frequency | 50 or 60Hz | Diameter Of wires | 3—5mm |
Insulated grade
| F | weight | Kg |
wire straightening and cutting machine with CE Certificate.
to make wire straightening and cutting.
wire diameter from 2mm to 6mm,
speed:more than 45m/min,
length of the wire:0.7m ---12m
weight:650kg
Straightness and cutting face is to meet international standard.
Directly deciding its size as well as length, the cutting is accurate and flat.
With strict quality control, best performance, durables and little breakdown rate.
Sound is slight during running, no vibration and to install underground screws not required
