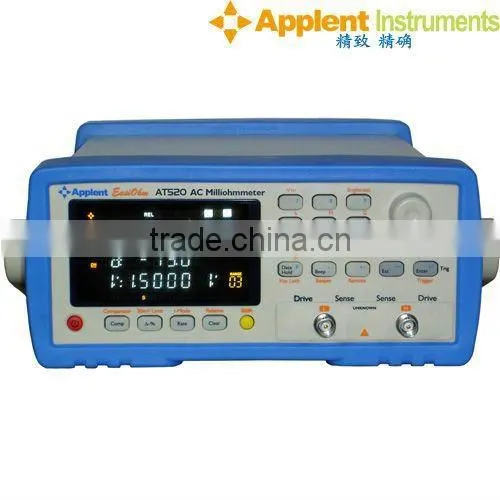

AT520 Battery Tester AC Resistance and DC Voltage AC Low Ohm Meter

AT520 Battery Tester AC Resistance and DC Voltage AC Low Ohm Meter thumbnail-1
AT520 Battery Tester AC Resistance and DC Voltage AC Low Ohm Meter thumbnail-2
AT520 Battery Tester AC Resistance and DC Voltage AC Low Ohm Meter photo-1
AT520 Battery Tester AC Resistance and DC Voltage AC Low Ohm Meter photo-2
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Applent
Model Number:
AT520
Contact Supplier Request Quote Chat Now
Changzhou Applent Instruments Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Hangzhou Ningbo Shenzhen Guangzhou etc
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name Applent
Model Number AT520

1. Descriptions



AT520 battery meter can be used to test internal resistance and voltage of battery simultaneously. AT520 applies to the product sorting and factory inspection of the battery produce line, Compatible HIOKI 3560 and Agilent 43388. All kinds of contact resistance, Li-battery, alkaline cell and lead accumulator determination of degradation and estimate of lifetime, UPS test on line and lead accumulator factory inspection can use AT520 series to test.



AT520 Battery Tester

SPECIFICATIONS

Parameters

AC resistance, DC voltage, X, Z, θ, L,

Accuracy

Resistance: 0.3%

Voltage: 0.05%

Inductance: 1%

Measurement Range

Resistance: 1μΩ - 3.2kΩ

Voltage: 100μV - 60V DC

Inductance: 10nH - 1H

Signal Source

AC 1kHz, open-circuit voltage < 20mV, measurement current: < 10mA

Range

Automatic and manual with 6 ranges

Speed

20 times/second, 6 times/second, 1 time/second

Result Display

Show, ΔABS, Δ%, θ, sorting results

Max Reading

Resistance: 32,000, Voltage: 60,000

Adjustment

Short-circuit reset for all range, REL function

Comparator

30 groups record, NG-LO, GD-IN, NG-HI display and output. beep is adjustable

Trigger

Internal, manual, and external

Interface

RS232C and Handler interface (PLC)

Others

Detection of damage test wire,

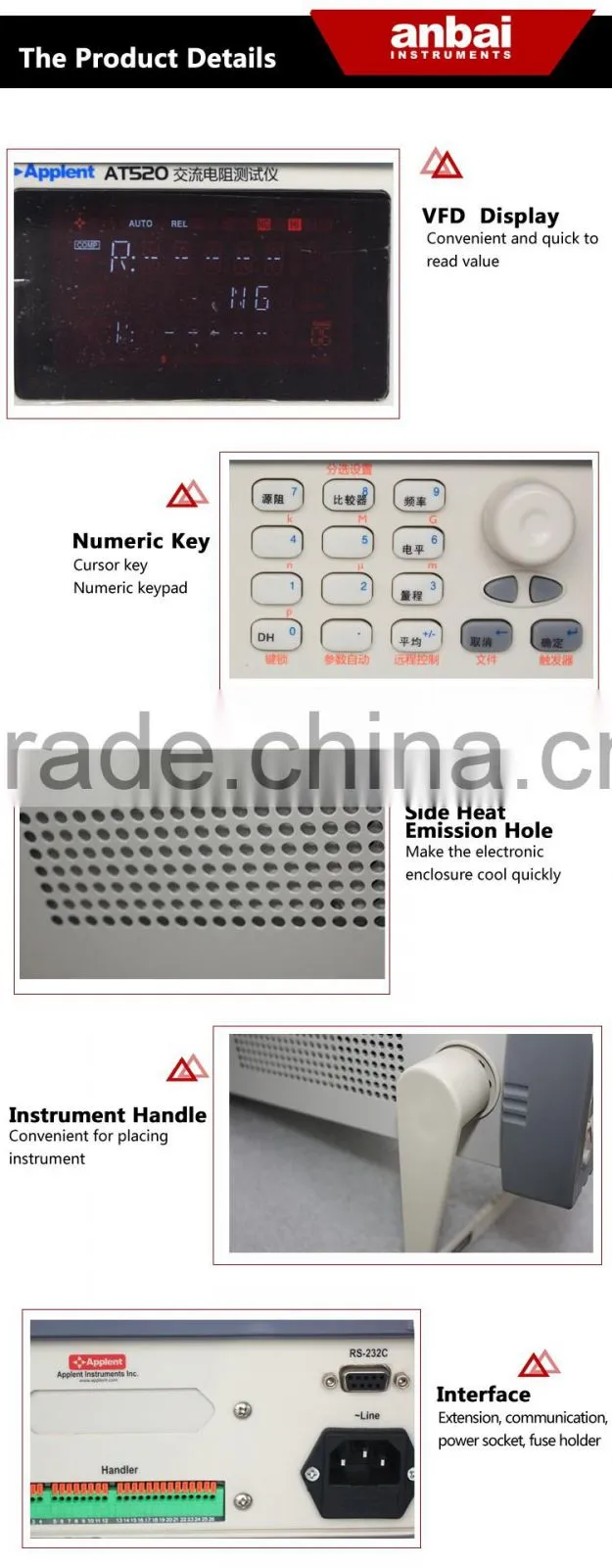

four-color vacuum fluorescent screen VFD display,

keypad lock and data hold function

GENERAL FEATURES

Power Supply

Voltage: 198V AC - 240V AC  Frequency: 50Hz   Power: Max 15VA

Dimension & Weight

264mm (Width)x107mm (Height)x350mm (Depth)  4kg

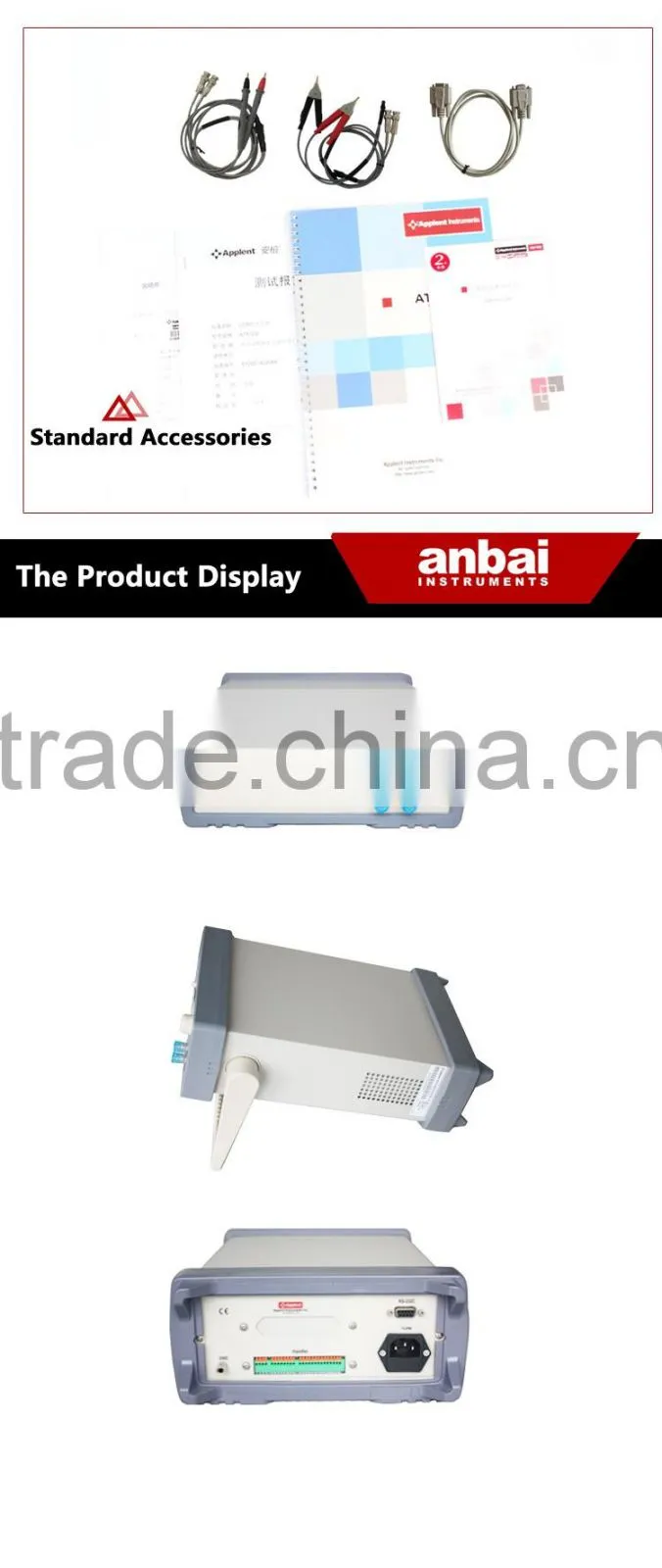

ORDERING INFORMATION

Accessories

ATL505 kelvin test wire

ATL108 RS232 interface cable

Optional Accessories

ATL506A: test probe

ATL506: test leads



Product Description
