680UF/450V 35*50 Screw Terminal aluminium electrolytic capacitor

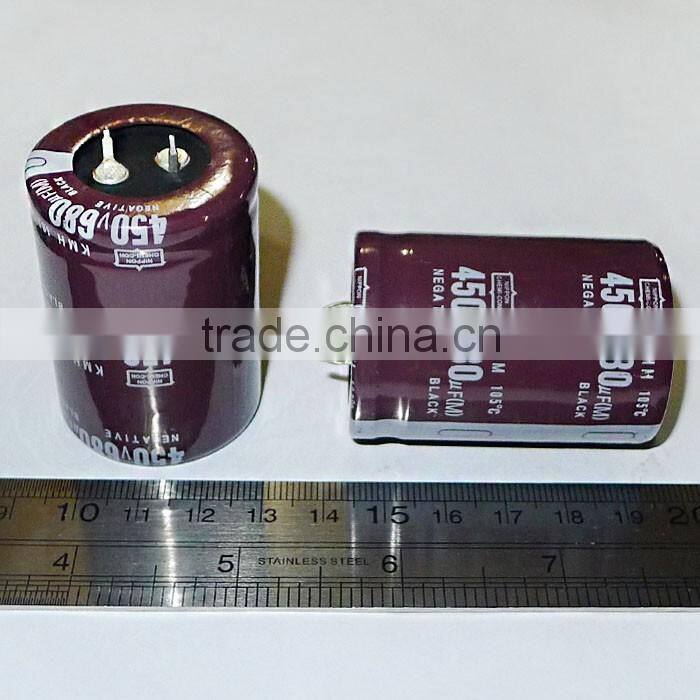

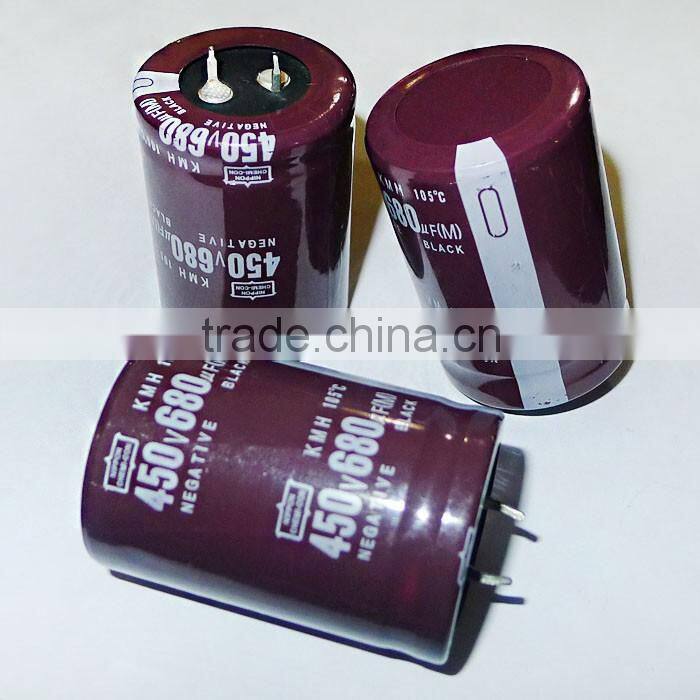

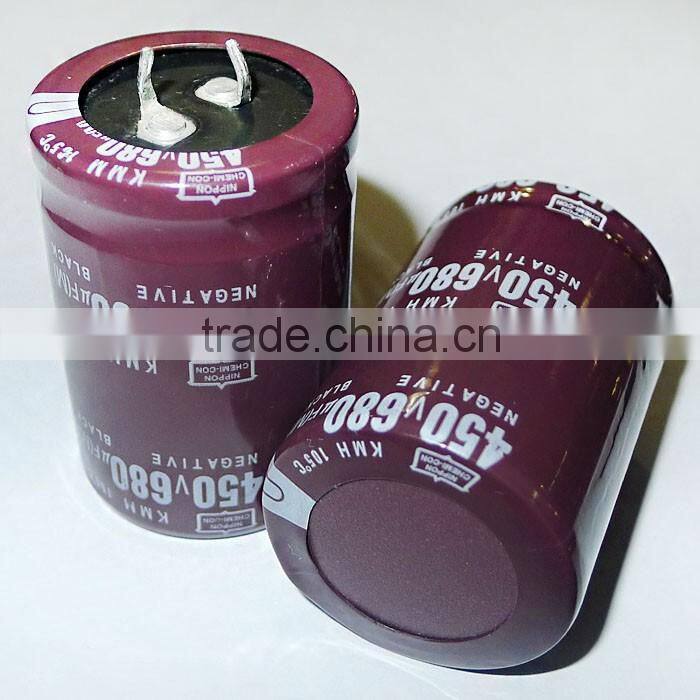

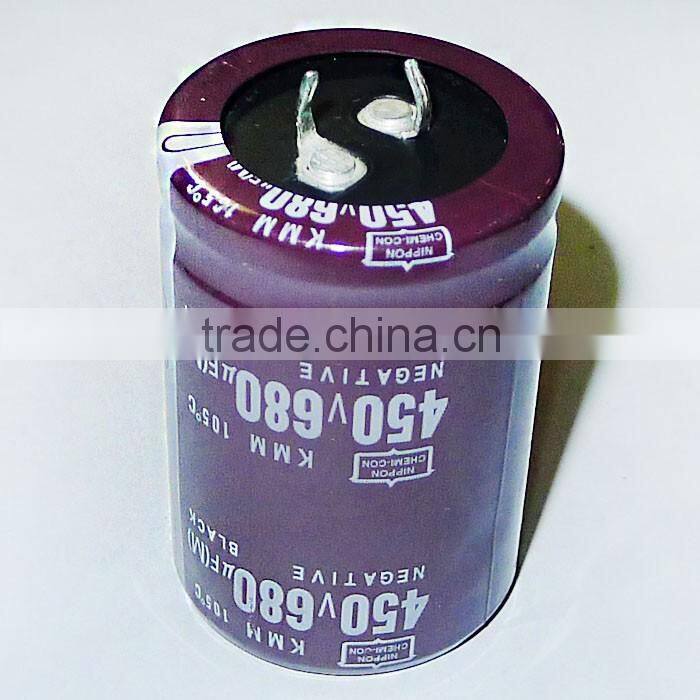

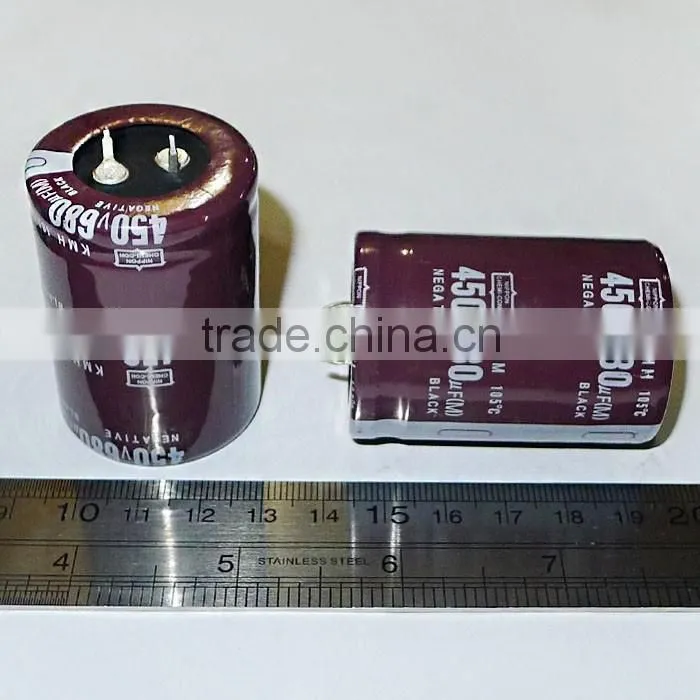

1,PICTURE
2.Description
*Load life of 3000 hours at 105℃
*HigH Ripple current.
*Used for computers powers.Hi-ripple circuit of electric vehicle,electric train,general-purpose inverter ect.
12.SPECIFICATIONS
| Item | Charactristics |
| Opretating Temperature | -40~+105 |
| Rated Voltage Range(V) | 16~450 |
| Nominal capacitance range(μF) | 47~47000 |
| Capacitance Tolerance(20℃,120Hz) | ±20% |
| Leakage current(μA) | 1≤0.01CV or1.5mA.Whichever is smaller(at 20℃,after 5 minutes) c:Nominal capacitance(μF)v:Rated voltage(V) |
| Dosslpation Factor(20℃.120Hz) | Rated voltage(v) | 16 | 25 | 35 | 50 | 63~100 | 400~450 |
| tano | 0.50 | 0.40 | 0.35 | 0.30 | 0.20 | 0.20 |
| Load Life(+105℃) | Time | 3000hours |
| Leakage current | Not more than the special valued | |
| Capacitance Change | Within ±20% of the initial value | |
| Dissipation Factor | No more than 200% of the soecified value |
| Sheif Life(+105℃) | Time | 500hours |
| Leakage Current | Notmore than the specified value | |
| Capacitance Change | Within ±20% of the intial value | |
| Diissipation Factor | Not more than 200% of the specified value |
| Temperature Stability(129Hz) | Rated voltage | 16~100 | 160-200 | 250-450 | |
| Impedance Ratio |
Z-25℃/Z+20℃ | 4 | 4 | 4 | |
| Z-40℃/Z+20℃ | 15 | - | - | ||
