Detailed Product Description of BZC400ZYII

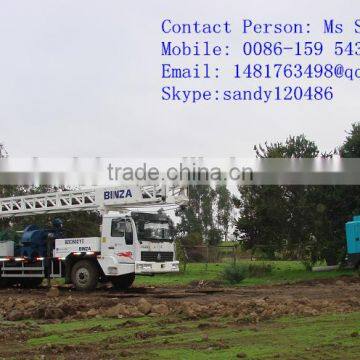

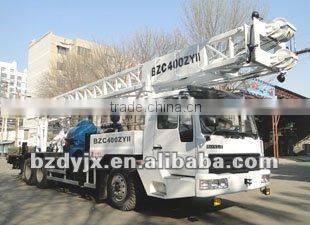

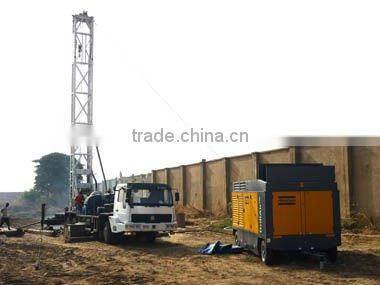

BZC400ZY is a kind of rotary drilling machinery, the drilling rig is equipped with 6x4 SINOTRUK truck crane chassis, and the transfer case, main drive, gearbox, dual-winch, slurry pump, rotary table, drill tower and steel wire feeding system are all mounted on the chassis.
Three-phase AC generating set(MF) provides the vehicle mounted drilling machine with convenience for welding operation and equipment maintenance at night. of course, equipped with 55kw electric motor, when mains supply is available, the drill rig can operate using the power supply directly.
According to the geological conditions, BZC400ZY truck mounted drilling rig can be equipped with air compressor to achieve pneumatic down-the -hole hammer drilling. If equipped with air water separator, dual-wall drill pipe and other related devices, the drilling equipment is also able to realize reverse circulation drilling. If equipped with drill tools like hydraulic DTH drilling.
BZC400 ZY is applicable for drilling into clay, sand, bed rock, basalt strata, and more.
Technical parameter
Drilling depth(M) 80 400
Drilling diameter(mm) 1500 500
Speed of turntable(r/min) 21.2;36;63.2;100.6;155;20.2(reverse)
Torque of turntable(KN.m) 18;10.6;6;3.8;2.5;18.9(reverse)
Single rope lifting capacity of main windlass(KN) 45
The capacity of main windlass(KN) 270
Singlerope lifting capacity of hydraulic windlass(KN) 40
The capacity of hydraulic windlass(KN) 160
