BZC500BDF Truck Mounted Water Well Drilling Rig
- 15 Set / Sets per Month
- Tianjin Shanghai Qingdao and others
- T/T
- China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
- 100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
- HY-50H Small Domestic Hydraulic Water Well Drilling Rig of China
- 50m Depth Core Drilling Rig Portable Diamond in Mountain
- TSP core bit, BQ NQ HQ PQ core drill bits, HWL, wireline core barrels, diamond coring bits, hard formation, deep hole rock core recovery
- 1.5M 3M inner tube assembly, wireline core barrels, head assembly, impregnated diamond drilling, hard formation coring, deep hole rock core recovery
Product Details
Condition: | New | Type: | Rotary Drilling Rig | Power Type: | Other, Diesel and motor |
Place of Origin: | Shandong, China | Brand Name: | BINZUAN | Model Number: | BZC500BDF |
Usage: | Water Well | Voltage: | 380 | Power(W): | 191000 |
Dimension(L*W*H): | 12470x2490x3700mm | Weight: | 21500kgs | Certification: | ISO9001:2008, SGS, BV |
Warranty: | 1 year for free and service forever | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Dongfeng truck 8*4 drive formDiesel power 191kw/260Hp
BW850/4-80 mud pump
30kw generator
Good quality and competitive price
Main features:

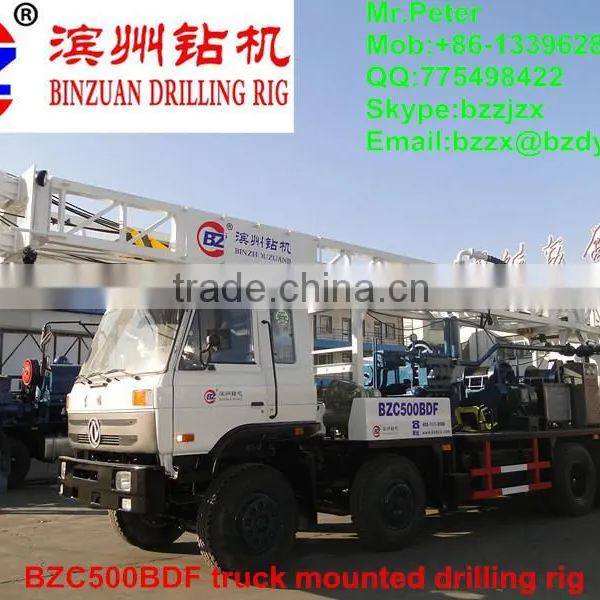

1. BZC500BDF truck mounted drilling rig is designed by our engineers. It is a kind of truck mounted and rotary drilling rig.
2. The truck chassis adopts the 8×4 special crane chassis of brand DONGFENG TRUCK and the main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable, drilling tower, feed mechanism are set up on the chassis.
3. This rig is a rotary drilling rig with directional circulation. It is equipped with BW850/4-80 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.
4. The power of drilling rig comes from the truck engine; the rig has distribute implement and hydraulic system.
5. We can install the spare electric engine and clutch implement according to client’s requirement, so that the rig can work with diesel engine or electric engine.

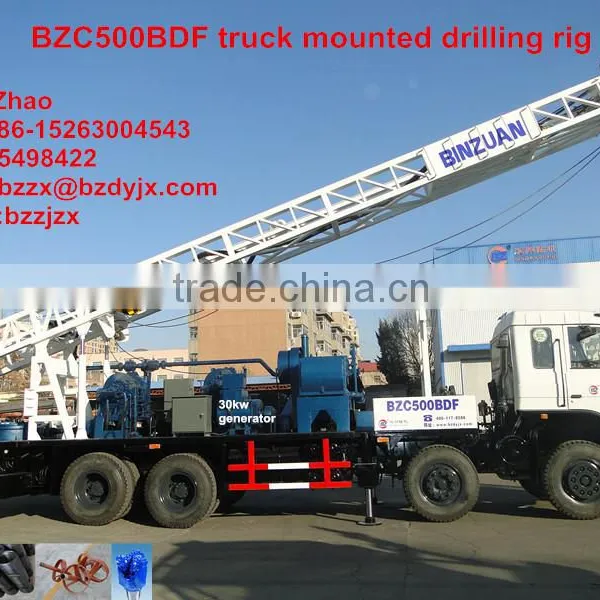

6. We set up a generator (MF) which is convenient to illuminate or work at night.
There are pressure device on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.
7. The main drive of rig is mechanical and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are air operated.
8. According to client’s requirement, the rig can carry out down-the-hole hammer drilling with USA Sullair, Japan PDSKIOOS, Sweden Atlas, China Kaishan, Hongwuhuang; can carry out air lifting reverse circulation drilling with air-water tap, double-wall drilling pipe, gas-water separator; can carry out Hydraulic DTH hammer drilling rock breaking with 850/4-80 mud pump; can carry out core-drilling with other special drilling tools.
9. The appearance of rig is pretty. It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.
Technical parameter | ||||
Drilling depth(M) | 500 | |||
Opening diameter(mm) | 500 | |||
Inner diameter of the rotary table(mm) | 500 | |||
Speed of turntable(r/min) | 117; 102; 60; 38; 22; 13; 16(reverse) | |||
Torque of turntable(KN.m) | 5.4------34 | |||
Single rope lifting capacity of main windlass(KN) | 40 | |||
Maximum lifting capacity of main windlass(KN) | 240 | |||
Single rope lifting capacity of assistant windlass(KN) | 40 | |||
Maximum lifting capacity of assistant windlass(KN) | 160 | |||
The lifting capacity of main hook(KN) | 240 | |||
The lifting capacity of assistant hook(KN) | 160 | |||
The effective height of drilling tower(mm) | 11500 | |||
The height of drilling tower (mm) | 12043 | |||

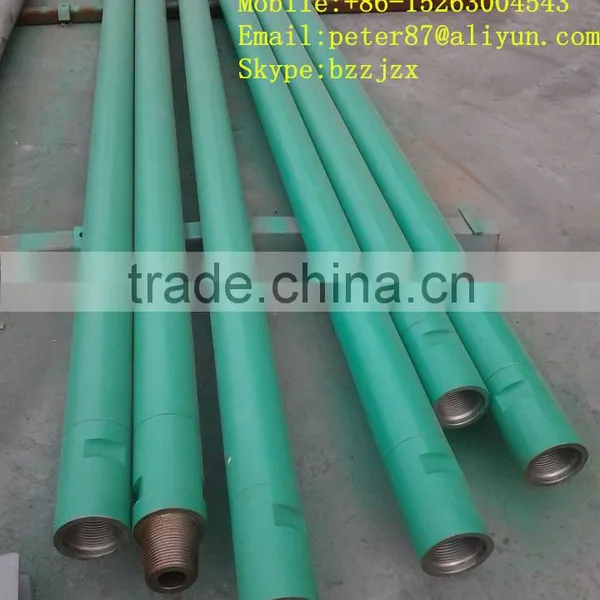

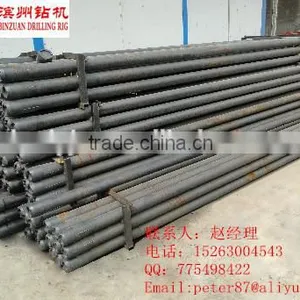

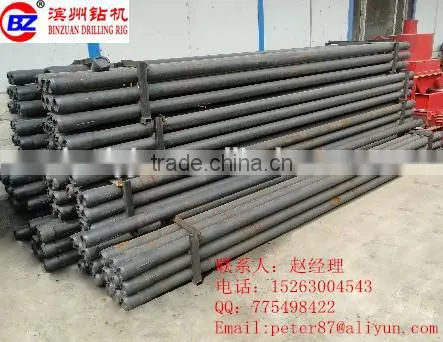

Drill pipe | Kelly bar(mm) | 108×108×7500 | ||
Assistant pipe (mm) | 89×10×6000 | |||
BW850/4-80 plunger pump | Diameter of cylinder (mm) | 106 | ||
Stroke of piston (mm) | 155 | |||
Theoretical flow (L / min) | 500 600 700 850 | |||
Rated pressure (MPa) | 7 6 5 4 | |||
Pounding times (min-1) | 136 160 187 219 | |||
Diameter of suction tube (mm) | 106.4 | |||
Diameter of drain pipe (mm) | 64 | |||
Input speed (r / min) | 900 | |||
Input power (kW) | 80 | |||
Overall dimensions (mm) | 2200*1230*1300 | |||
Weight (t) | 2.8 | |||
Truck chassis | Drive form | 8×4 | ||
Engine | Model | YC6A260-46 water cooled four stroke diesel engine | ||
Rated power(KW/Hp) | 191/260 | |||
Speed(r/min) | 2300 | |||
Electric generator | Rated power (kW) | 30 | ||
Rated voltage(v) | 400 | |||
Speed (r/min) | 1480 | |||
Electric motor | Rated power (kW) | 55 | ||
Rated voltage(v) | 400 | |||
Speed (r/min) | 1480 | |||
The highest speed(Km/h) | 75 | |||
Weight(kg) | 21500 | |||
Transport size(L*W*H)(mm) | 12470x2490x3700 | |||
Working size(L*W*H)(mm) | 12000x5380x13690 |
