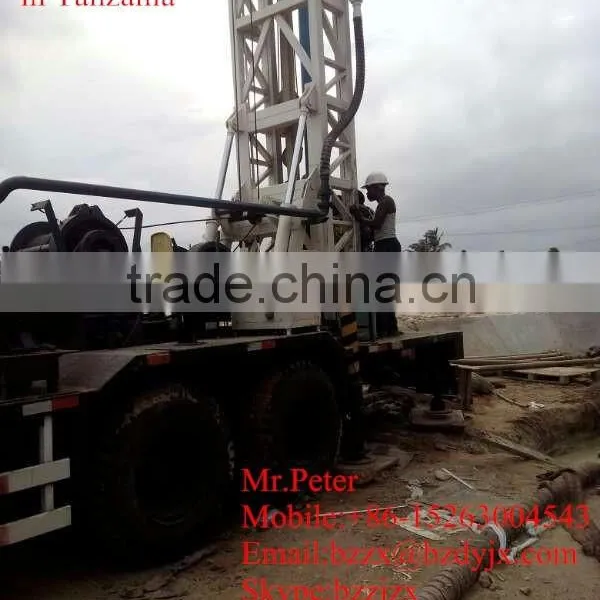

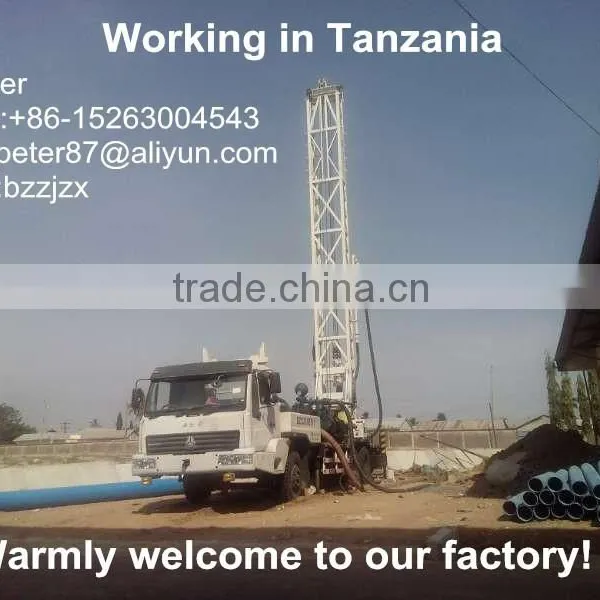

BZC350ZYII Truck Mounted Drilling Rig in Tanzania
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin or the others ports
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
BZC350DF Truck Mounted Drilling EquipmentUS$ 100,000 - 200,000MOQ: 1 Piece -
BZC500BDF Truck Mounted Water Well Drilling RigUS$ 165,000 - 250,000MOQ: 1 Set
-
BZC500BDF Water Well Drilling RigUS$ 150,000 - 250,000MOQ: 1 Set
-
BZCY600BZY Full Hydraulic Truck Mounted Drilling Rig for SaleUS$ 219,500 - 250,000MOQ: 1 Set
-
Truck Mounted Drilling Rig-the Best 350m Drilling Rig and Competitive PriceUS$ 100,000 - 200,000MOQ: 1 Piece
Condition
New
Type
Rotary Drilling Rig
Power Type
Diesel
Place of Origin
Shandong, China
Brand Name
BINZUAN
Model Number
BZC350ZYII
Usage
Water Well
Voltage
380V
Power(W)
132KW
Dimension(L*W*H)
12560*2490*3740
Weight
19340kgs
Certification
ISO,SGS,BV
Warranty
1 year for free and service forever
After-sales Service Provided
Engineers available to service machinery overseas
Main features of BINZA brand water well drilling rig

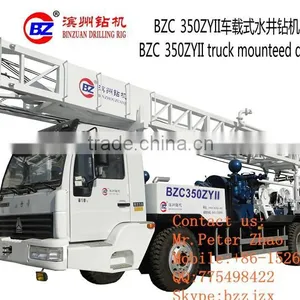

BZC350ZYII truck mounted drilling rig is designed by our engineers. It adopts truck mounted and is a rotary drilling rig.
The truck chassis is adopted the special crane chassis of brand SINOTRUK, the main transmit, transmission power, gearbox, sets of windlass, mud pump, sewage pump,mast are setup on the chassis.
The power of drilling rig comes from the truck engine, the rig setups distribute implement and hydraulic system.
We can upset the spare electric engine and clutch implement according to clients requirement, so that the rig can work with diesel engine or electric engine.
We can setup a generator (15kw) , so that it is convenience to illuminate or work at night.
Technical parameter | ||||
Drilling depth(M) |
300
|
|||
Drilling diameter(mm) |
500 |
|||
Speed of turntable(r/min) |
21.23663.2100.615520.2reverse |
|||
Torque of turntable(KN.m) |
1810.663.82.518.9reverse |
|||
Single rope lifting capacity of windlass(KN) |
30 |
|||
the max torque of whole machine(KN.m) |
40.55 |
|||
The lifting capacity of hook(KN) |
180 |
|||
Bearing capacity of mast (KN) |
180 |
|||
The height of mast (mm) |
11500 |
|||
Bearing capacity (t) |
25 |
|||

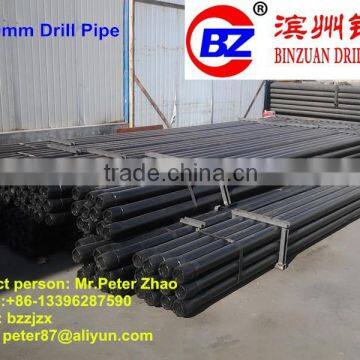

Pipe |
Kelly (mm) |
108×108×7500 |
||
Assistant pipe (mm) |
89×10×5500 |
|||
|
Hydraulic pump
|
Model |
CB-HP50/32Z |
||
Pump delivery (ml/r) |
50/32 |
|||
Rated speed (r/min) |
3500-3700 |
|||
Rated pressure(MPa) |
20 |
|||
|
BW850/2A
plunger pump
|
Diameter of cylinder (mm) |
150 |
||
Stroke of piston (mm) |
180 |
|||
Theory of flow (L / min) |
600 850 |
|||
Rated pressure (Mpa) |
3 2 |
|||
Pounding times (min-1) |
58 82 |
|||
Diameter of suction tube (mm) |
127 |
|||
Diameter of drain pipe (mm) |
64 |
|||
Input speed (r / min) |
470 |
|||
Input power (kw) |
40 |
|||
Overall dimensions (mm) |
2000*1030*1400 |
|||
Weight (t) |
1.5 |
|||
|
Truck chassis
|
Model |
TAZ5191TXJ |
||
Drive form |
6×4 |
|||
|
Engine
|
Model |
TBD226B-6 |
||
Rated powerKW |
132 |
|||
Speed r/min |
2300 |
|||
Size L*W*H(mm) |
11110×2490×2500 |
|||
Electric generator |
Model |
MF |
||
Rated power (kw) |
15 |
|||
Rated voltage(v) |
400 |
|||
Rated current(A) |
27 |
|||
Speed (r/min) |
1500 |
|||
Frequency(Hz) |
50 |
|||
Protection level |
IP21 |
|||
Insulation Class |
H |
|||
The best working gear (or speed) |
5th gear1000-1400r/min |
|||
The highest speed(Km/h) |
75 |
|||
Weight (kg) |
19340 |
|||
Transport sizeL*W*H(mm) |
12160*2490*3440 |
|||
Working sizeL*W*H(mm) |
11110*2490*13110 |
|||
