Main features:

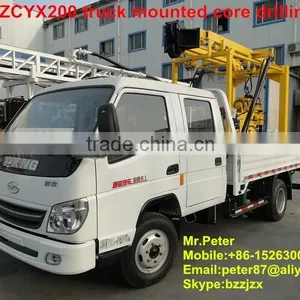

- 1. BZCYX200 truck mounted core drilling rig is a versatile hydraulic vertical drilling rig.
- 2. The truck chassis adopts the 4*2 special chassis of brand TANGJUN, the transmission system, hoist, mud pump and others important parts are installed on this chassis, the layout is reasonable and compact, easy to operate.
- 3. The BW-160 mud pump is installed on the chassis, it has high pressure and large flow, it can ensure the drilling depth and drilling diameter.
- 4. This drilling rig include mobile devices, it can achieve moving by itself, easy to operate on the wellhead.
- 5. The drilling tower adopts hydraulic automatic retractable tower, it can easily to operate up and down.
Adaptation:
Geological prospecting and exploration, roads and high-rise building foundation exploration, a variety of concrete inspection hole structure, rivers and dams, roadbed grouting hole drilling and grouting directly, civil wells and geothermal central air conditioning.
Technical parameter | |||
Drilling depth(m) |
30-200 |
||
Drilling diameter(mm) |
300-75 |
||
Borehole inclination(°) |
90-75 |
||
Vertical speed(r/min) |
64;128;287;557 |
||
Vertical stroke(mm) |
450 |
||
Single rope lifting capacity of main hoist(kn) |
16 |
||
Rope capacity of main hoist(m) |
35 |
||
Reel lifting speed(r/min) |
17;35;75;151 |
||
The height of tower(mm) |
7000 |
||
The effectiveheight of tower(mm) |
6500 |
||
Kelly pipe(mm) |
59*53 |
||
Drilling pipe(mm) |
42;50;60 |
||
Weight(kg) |
1150 |
||
Diesel engine |
Model:ZS1115 diesel engine |
||
Rated power: 14.7kw/2200rpm | |||
BW-160 mud pump |
Rated flow(L/min) |
160 |
|
Rated pressure(Mpa) |
1.3 |
||
Drive power(kw) |
5.15 |
||
Weight(kg) |
160 |
||
Dimension(mm) |
1110*725*965 |
||
Truck chassis |
Model |
TANGJUN OULING 95HP 3.3M double tailgate light truck |
|
Drive form |
4*2 |
||
Diesel engine |
Model |
Quanchai 4B2-95C40 |
|
Emission standard |
Euro IV |
||
Rated power(kw) |
70 |
||
Speed(r/min) |
3200 |
||
