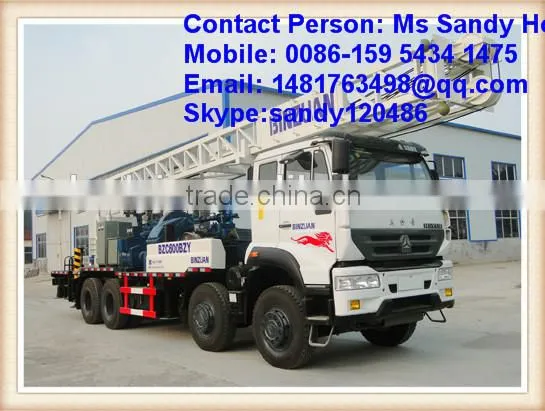

600 Meters Truck Mounted Water Well Drilling Rig BZC600BZYUS$ 1 - 148,000MOQ: 1 Set
-
Technical parameter OF BZC600BZY
Drilling depth(M)
600
Drilling diameter(mm)
500
Speed of turntable(r/min)
12.8;22.3;38.5;59.8;102.7;117.6;16.1(reverse)
Torque of turntable(KN.m)
41.4;23.8;13.8;10.6;5.1;4.5;32(reverse)
Single rope lifting capacity of windlass(KN)
50
The capacity of main windlass(KN)
300
Single rope lifting capacity of hydraulic windlass(KN)
50
The capacity of hydraulic windlass(KN)
200
The lifting capacity of hook(KN)
300
Bearing capacity of mast (KN)
360
The height of mast (mm)
12043
Bearing capacity (t)
36
Pipe
Kelly (mm)
108×108×7500
Assistant pipe (mm)
89×10×5500
Hydraulic pump
Model
CBHP-80/63
Pump delivery (ml/r)
80/63
Rated speed (r/min)
2000
Rated pressure(MPa)
20
3NB-130 piston pump
Diameter of cylinder (mm)
100 110 120 130 140
Stroke of piston (mm)
160
Theory of flow (L / min)
1000
Rated pressure (Mpa)
5
Pounding times (min-1)
135
Diameter of suction tube (mm)
152
Diameter of drain pipe (mm)
65
Input speed (r / min)
565
Input power (kw)
95
Overall dimensions (mm)
2160*1400*1300
Weight (t)
3.9
Truck chassis
Model
SINOTRUK
Drive form
8×4
Engine
Model
SINOTRUK
Rated power(KW)
196
Speed (r/min)
2300
Size (L*W*H)(mm)
11510×2480×2800
Electric generator
Model
MF
Rated power (kw)
30
Rated voltage(v)
400
Rated current(A)
27
Speed (r/min)
1480
Frequency(Hz)
50
Protection level
IP21
Insulation Class
H
The best working gear (or speed)
5th gear(1000-1400r/min)
The highest speed(Km/h)
70
Weight (kg)
25960
Transport size(L*W*H)(mm)
12386*2480*3837
Working size(L*W*H)(mm)
11123*2480*13618
2. Advantages
1. Fast construction speed, can save your precious time and finish the engineering in
advance.
2. Load feedback system with less energy consumption, more energy saving.
3. Large torque, anti-sticking.
4. Deep depth, big diameter.
5. We have independent R&D department, with independent intellectual property rights, and ensure the sustainable upgrading of product performance.
6. We have strong construction technology and professional construction team, we can guide customers according to their construction problems from inquiry to after-sales.
