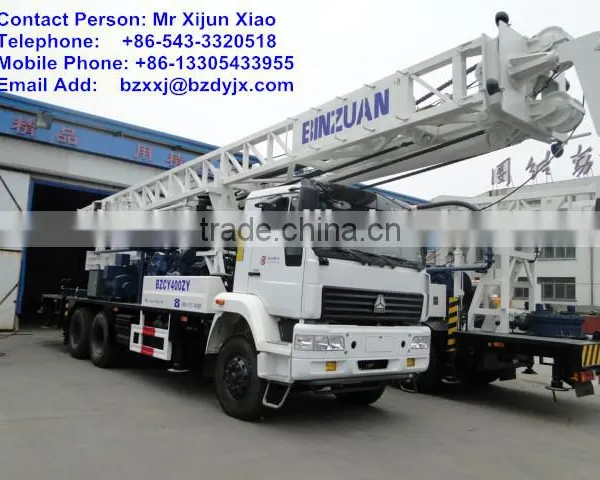

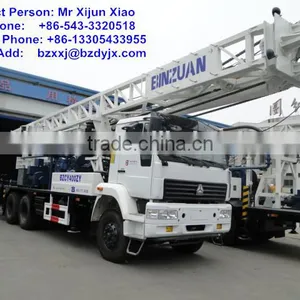

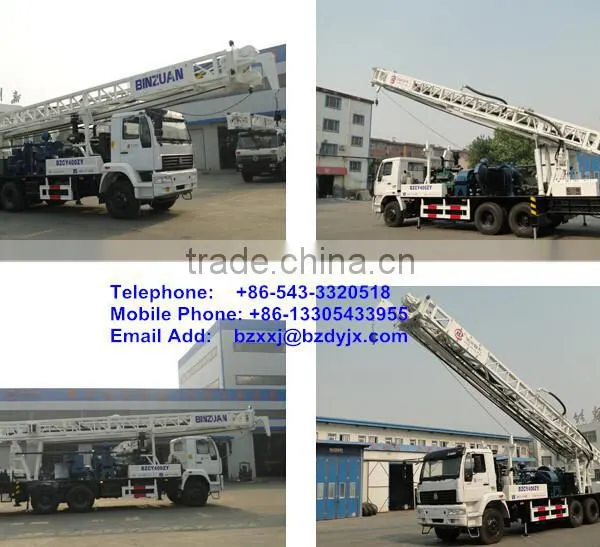

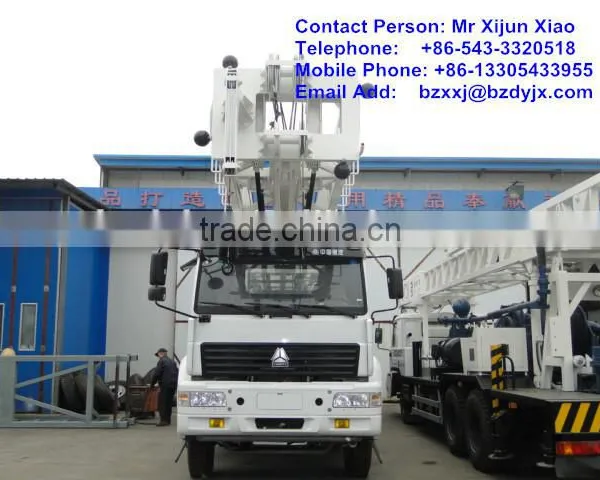

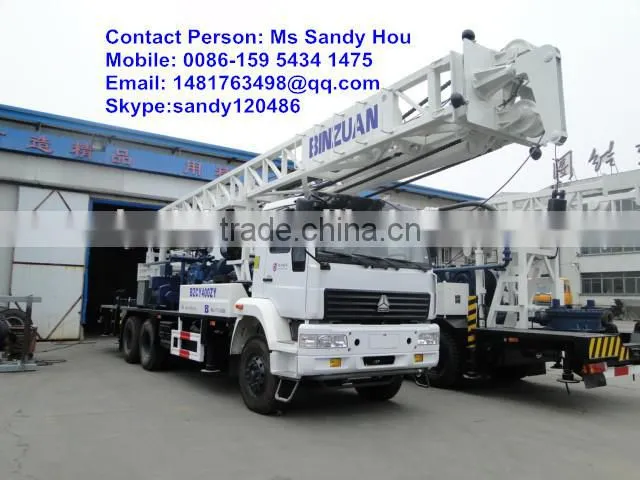

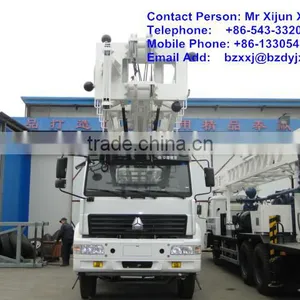

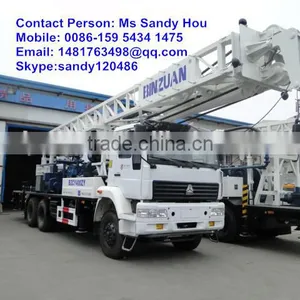

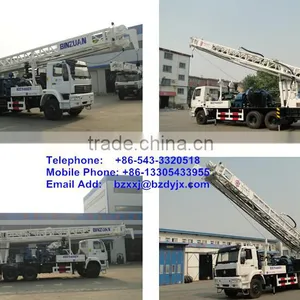

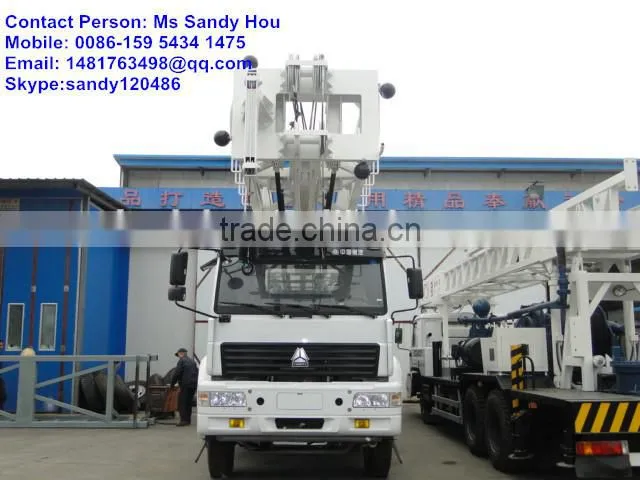

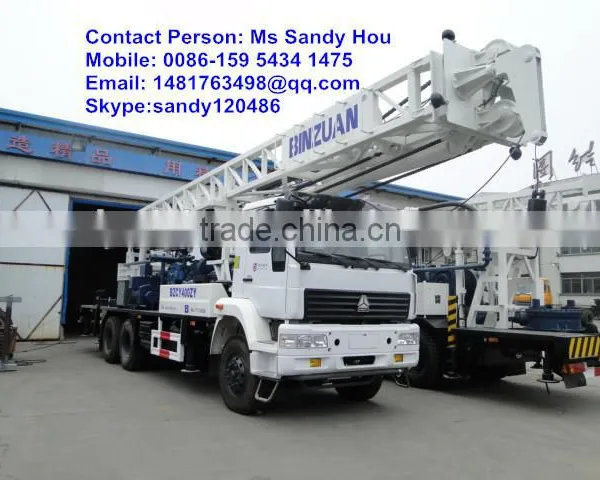

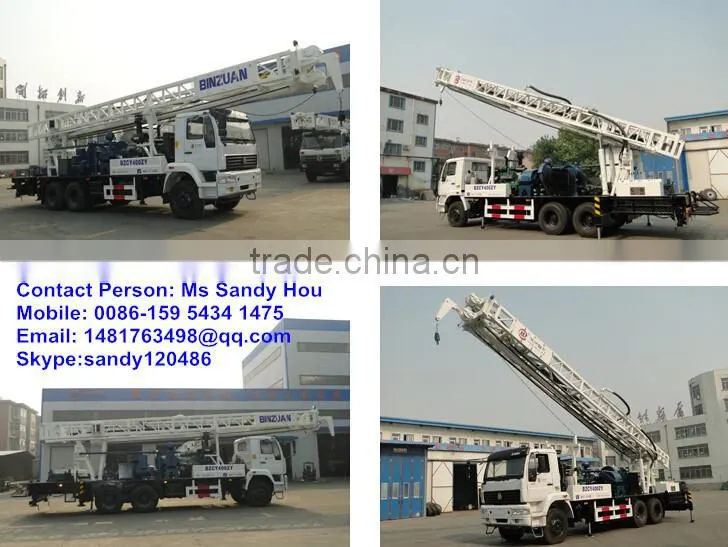

- BZCY400ZY truck mounted water drilling equipment is a directly rotary drilling rig. This truck chassis is adopt the 6×4 special chassis of brand SINOTRUK, 11.00R20 steel off-road tire tread, with good off-road performance.

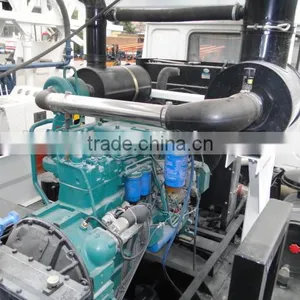

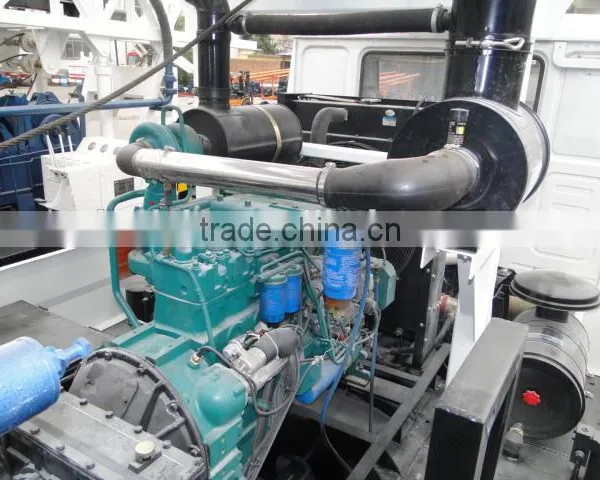

- This rig has very compact structure, the engine of chassis is adopted WP7.210E40 diesel engine, the power is 155kw(strong power) The drilling rig has independent diesel engine (DEUTZ-WP6G125E22), the power is 92kw. Not only meet the drilling requirements, but also reduce energy consumption, it is very affordable.
- This rig is design principle is an advanced hydraulic cylinder for drilling, stepless lift, it can be achieved automaic drilling. it can automatically adjust the drilling speed for different geological conditions.
- The drilling process can be achieved in pressruized drilling technology, adjust different pressure for different geological conditions, and can be viewed drilling pressure by pressure gauge. At the same time, it can adjust the drilling speed.
- The drilling rig can achieved fast drilling by manually, especially for soil. It can achieved different speed for different soil.

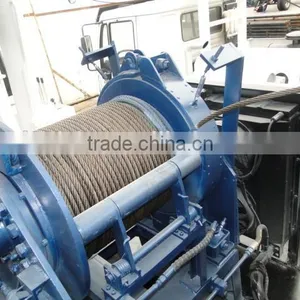

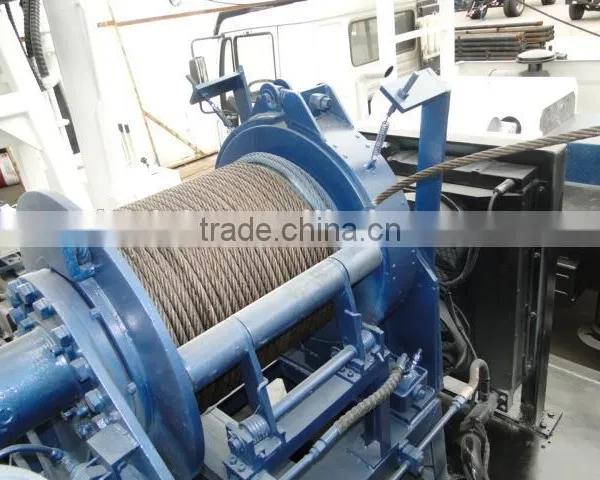

- It has a large lifting force hydraulic main hoist, stepless lift, and to achieve release rope quickly. When upgrading heavy, the lifting speed need slow to aviod crash the turntable and wellhead board. When put down single drill pipe, operate the quick handle, it can achieved release rope quickly like mechanical hoist.
- It has a hydraulic tool hoist, the tool hoist has large lifting force and quick lifting speed, it is both easy to loading drill tools, drill pipe and drill accessories transport, and can slide up and down with anchors, its very convenient to load and unload the drill pipe.
- It has a hydraulic cylinder control double card board forward and backward, it makes the insurance card board closed, to achieve stuck or release the pipe joints.
- It use integrated design of pneumatic, to achieve the BW850/2A mud pump clutch using pneumatic remote control, it has high degree of automation and easy-saving operation.
- It is installed 4 hydraulic legs and 2 mechanical legs, every hydraulic leg rod with locknut. After leveling the rig, it can lock the cylinder use locknut. So, even if the cylinder leaks, the chassis is not instability.
- The turntable use stir bars, internal turntable use spiral arc gear to transmission, it has large torque, it about 2 times of similar products at domestic and foreign.
- It is installed a generator (30kw) , so that it is convenient to illuminate or work at night.
- The hydraulic system use open system, the chassis and drilling rig are separately manipulated, it can avoid misuse. Winter oil heater and summer oil radiator are installed, to adapt to different seasons hydraulic oil for heating and cooling.
- This drilling rig equipped with an auxiliary unloading cylinder, it can be used to promote the turntable ratchet, to achieve auxiliary unloading the drill pipe.
Technical parameter
Drilling depth(M)
400
Drilling diameter(mm)
500
Speed of turntable(r/min)
117;102;60;38;23;13;16(reverse)
Torque of turntable(KN.m)
5.4---50(reverse)
Single rope lifting capacity of main windlass(KN)
45
The capacity of main windlass(KN)
270
Single rope lifting capacity of tool windlass(KN)
20
The rope capacity of tool windlass(m)
40
The height of mast (mm)
12500
Bearing capacity (t)
36
Pipe
Kelly (mm)
108×108×7500
Assistant pipe (mm)
89×10×5500
Hydraulic pump
Pump delivery (ml/r)
50/32
BW850/2A
plunger pump
Diameter of cylinder (mm)
150
Stroke of piston (mm)
180
Theory of flow (L / min)
600 850
Rated pressure (Mpa)
3 2
Pounding times (min-1)
58 82
Truck chassis
Model
SINOTRUK
Drive form
6×4
Engine
Rated power(KW)
155
Size (L*W*H)(mm)
10198×2490×2980
Drilling rig engine
Type
DEUTZ-WP6G125E22
Power(kw)
92
Speed (r/min)
2200
Electric generator
Model
MF
Rated power (kw)
30
Weight (kg)
21650
Transport size(L*W*H)(mm)
12740×2490×4210
Working size(L*W*H)(mm)
10780×3040×13800
1. Questions and answers
1.Are you trading company or manufacturer?We are professional manufacturer since 1953, and our factory mainly produce water well drilling rig, core drilling rig, DTH drilling rig, piling rig, etc. Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.
2.Are your products qualified?Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.
3,How about your machine quality? All of our machines hold the ISO, QC certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.
4,Do you have after service?Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provid the training for your staff.
5,What about the qaulity warranty?
We offer one-year quality warranty for machines' main body.
6,How long can you deliver the machine?
Generally, we can deliver the machine in 10 days.
2. Advantages
1. Fast construction speed, can save your precious time and finish the engineering in
advance.
2. Load feedback system with less energy consumption, more energy saving.
3. Large torque, anti-sticking.
4. Deep depth, big diameter.
5. We have independent R&D department, with independent intellectual property rights, and ensure the sustainable upgrading of product performance.
6. We have strong construction technology and professional construction team, we can guide customers according to their construction problems from inquiry to after-sales.
