Help CenterSmall Lcd Monitor Hdmi 8"
US$ 80 - 500
MOQ: 1 Unit
Key Specifications
Get Latest Price
Products Status:
Stock
Application:
Other, embedded, racked, locked on the wall etc
Screen Size:
Other, 8"
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/ Hong kong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Products Status
Stock
Application
Other, embedded, racked, locked on the wall etc
Screen Size
Other, 8"
Response Time
10ms
Brightness
250cd/m
Interface Type
D-Sub, DVB, DVI, HDMI, RS232C, S-Video, TV-out, YPBPR
Contrast Ratio
500:1
Resolution
Other, 800*600
Widescreen
No
Panel Type
TFT
Pixel Pitch
0.0675(H)*0.2025(V)
Brand Name
Anrecson
Model Number
LC-MI0801E
Place of Origin
Guangdong, China
Specifications
1, China top 10 brand2, factory for OEM/ODM
3, HItachi Vendor
4, 15 years experience
5, professional foreign trade team

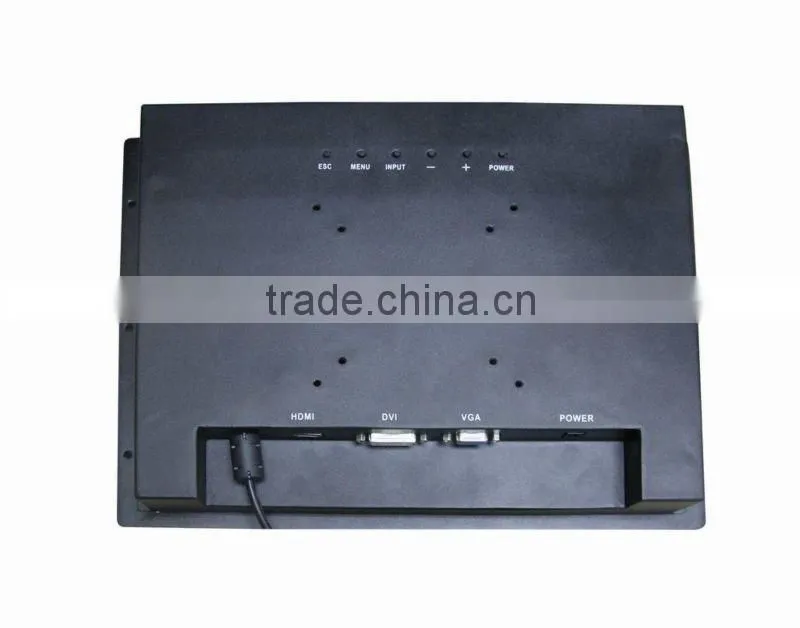

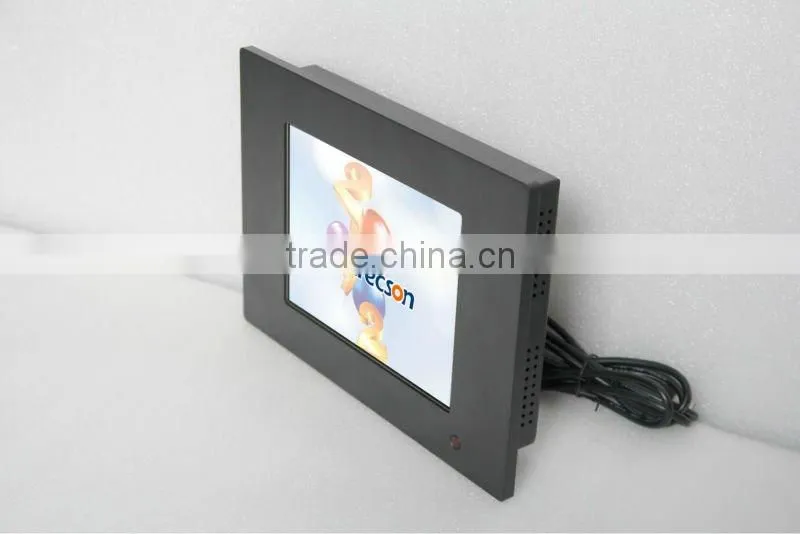

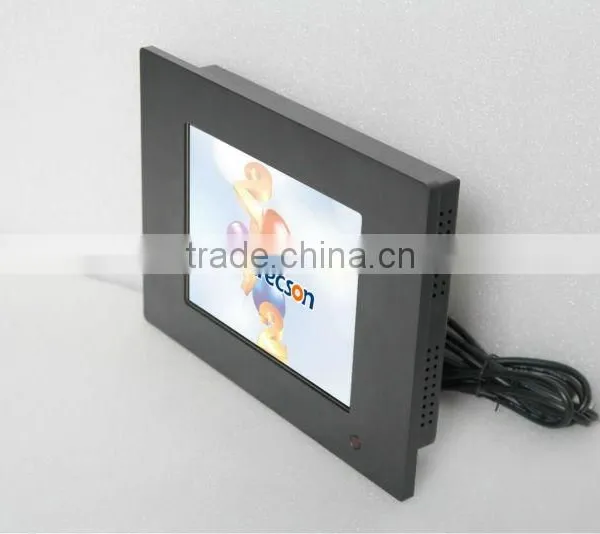

8" industrial touch lcd monitor
1,Aluminum Bezel
2,samsung panel
3,wide temperature from -20 to 80 degree.
4,. ip65
5. HD
6, touch optional
7,any customized service
8,our products with CE,RoHS,FCC,CCC certificates0
trade term:
1, Ex work, FOB, CIF
2, payment term: 100% deposit for sample
30%deposit and 70% balance before shipment
3, lead time: 2~14 working days for sample
14~30 working days according to the mass production quantity.
Bitmap
| |||
| 8" Industrial Monitor( Embedded Mount) | |||
| Mode Name | LC-MI0801E | ||
| Screen Size | 8″ | ||
| Active Display Area (mm) | 162mm(W)×121.5mm(H) | ||
| Display Mode | 4:3 | ||
| LCD Type | TFT-LCD | ||
| Resolution | 800×600 | ||
| Display Color | 16.7M | ||
| Pixel Pitch(mm) | 0.0675(H)×0.2025(V) | ||
| Brightness(nits) | 250cd/m2 | ||
| Contrast Ratio | 500:1 | ||
| Viewing Angle | 140(H) /120(V) | ||
| Response Time | 10ms | ||
| Backlight | LED backlights | ||
| Interface | D-Sub15 pin(VGA),HDMI | ||
| Optional interface | DVI/ BNC | ||
| Power | DC12V 2A 50HZ/60HZ | ||
| Power Consumption | =<10W (Max) | ||
| Plug & Play | DDC 1/2B | ||
| OSD Control | Auto adjust, Brightness, Contrast, Hori. / Vert. Position, Clock, phase, Color, Language.. | ||
| MENU | Chinese/English(other languages supported) | ||
| Mount Method | |||
| Mounting | Embedded Mount | ||
| Optional Mounting Way | VESA 75mm/100mm | ||
| Certificate Approval | CE,RoHS,CCC,FCC,ISO9000(optional UL) | ||
| Warranty | 1.5 years | ||
| Application | |||
| ATM/ Kiosk/Transportation/ Industrial Automation/Medical Treatment | |||
Send Inquiry to This Supplier
Business Type
Manufacturer, Trading Company
Year Established
2009

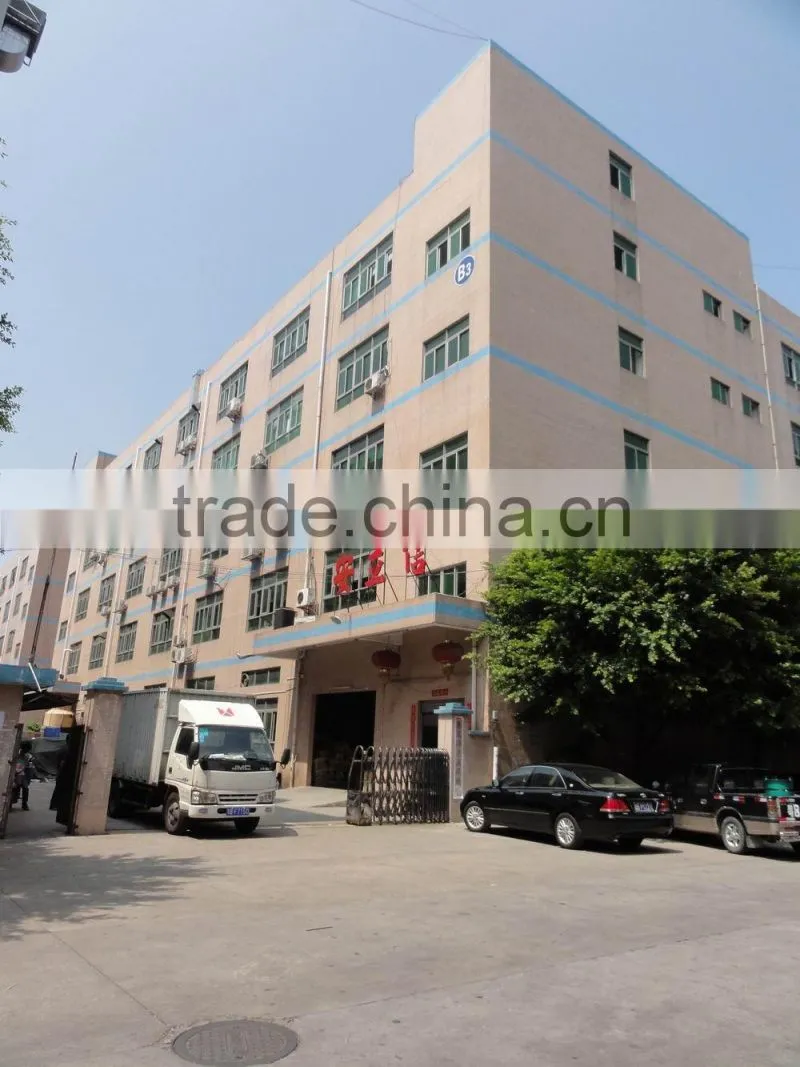

Factory Size
