Help Center17" Chassis LCD Monitor
Related Products

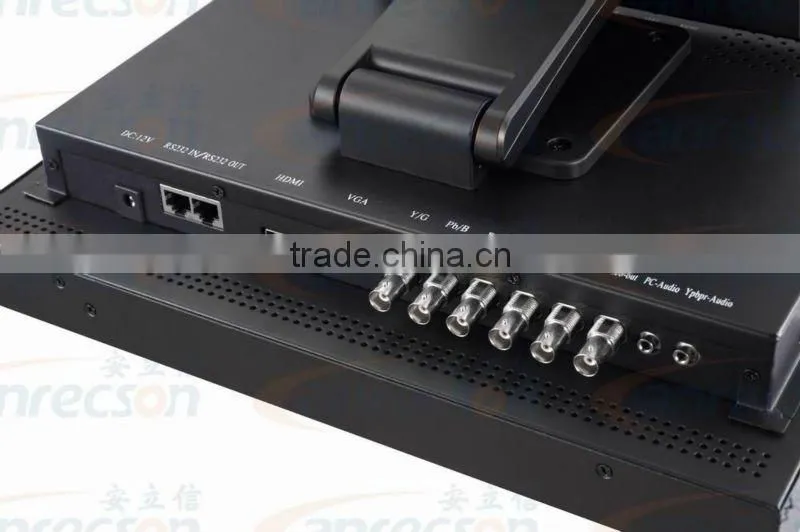

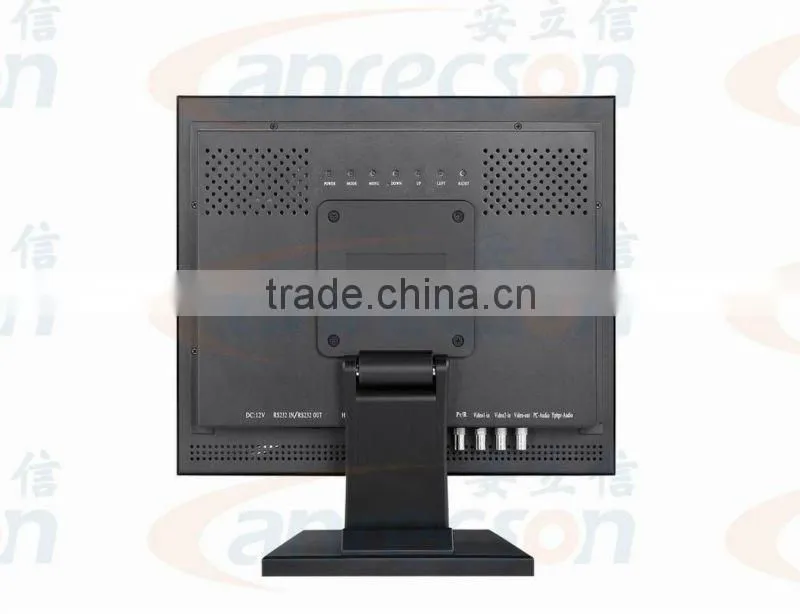

17 inch chassis lcd monitor
1, simple design with metal case
2, A+ panel
3, wide operating temperature
4, vesa mount/chassis
5, vga, hdmi,DVI etc
6, long life to 60,000hrs non-stop running
trade term:
1, Ex work, FOB, CI
2, payment term: 100% deposit for sample
30%deposit and 70% balance before shipment
3, lead time: 2~14 working days for sample
14~30 working days according to the mass production quantity
Project |
parameter |
|
Specification model |
LC-MS1701 |
|
PANEL SIZE |
17″ |
|
ACTIVE DISPALYAREA |
337.92mm(W)×270.336mm(H) |
|
DISPLAY MODE |
4:3 |
|
LCD TYPE |
TFT-LCD |
|
RESOLUTION |
1280×1024 |
|
MAX DISPLAY COLOR |
16.7M |
|
PIXEL PITCH(mm) |
0.264(H)×0.264(V) |
|
BRIGHTNESS(nits) |
250cd/m2 |
|
CONTRAST RATIO |
1000:1 |
|
VIEW ANGLE |
1700/1600 |
|
RESPONSI TIME |
4ms |
|
V-FREQUENCCY |
60Hz |
|
Input and Output | ||
Composite video input and output |
2 (BNC×2)/1(BNCX1) |
|
Y,Pb,Pr/Y,Cb,Cr input |
1 (BNC×3) |
|
VGA input |
1 |
|
RS232 Control mouth input/output |
RJ45X2 |
|
HDMI |
1 |
|
VIDEO | ||
System |
PAL/NTSC/SECAM |
|
OSD display | ||
MENU |
Chinese/English |
|
POWER | ||
Power input |
DC:12V/4A |
|
Max in operation |
=<25W |
|
Standby power loss |
<3W |
|
