Help Center24" Chassis Lcd Monitor
Related Products
Specifications
1, China top 10 brand2, HItachi/Toshiba Vendor
3, reliable quality
4, professional foreign trade team

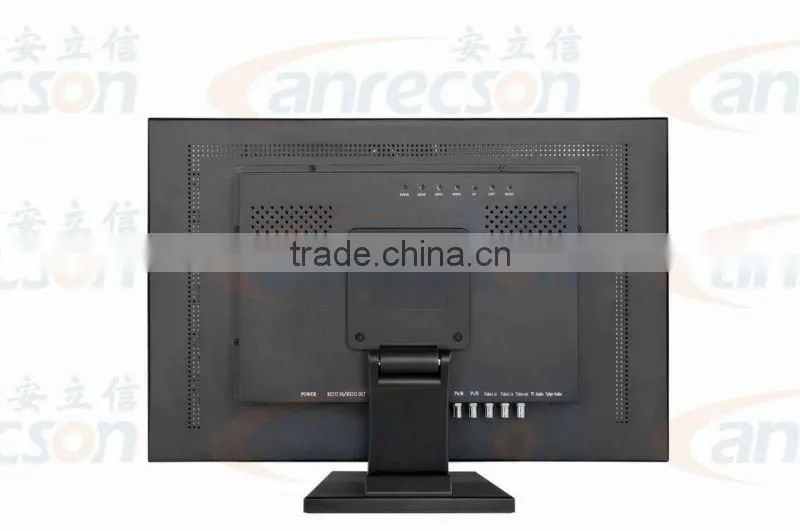

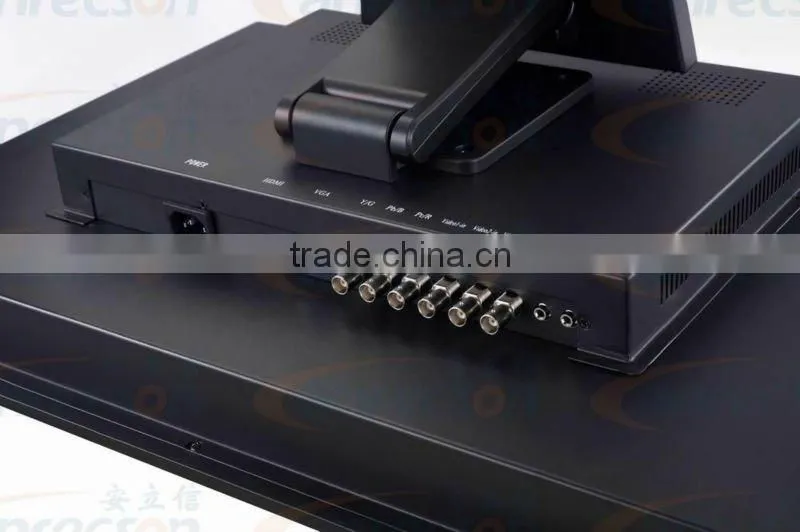

24" chassis lcd monitor
1, simple design with metal case
2, A+ panel
3, wide operating temperature
4, vesa mount/chassis
5, vga, hdmi,DVI etc
6, long life to 60,000hrs non-stop running
trade term:
1, Ex work, FOB, CIF
2, payment term: 100% deposit for sample
30%deposit and 70% balance before shipment
3, lead time: 2~14 working days for sample
14~30 working days according to the mass production quantity
Project |
parameter |
|
Specification model |
LC-MS2401 |
|
PANEL SIZE |
24″ |
|
ACTIVE DISPALYAREA |
525.07.6mm(W)×297.22mm(H) |
|
DISPLAY MODE |
16:9 |
|
LCD TYPE |
TFT-LCD |
|
RESOLUTION |
1920×1080 |
|
MAX DISPLAY COLOR |
16.7M |
|
PIXEL PITCH(mm) |
0.2715(H)×0.2715(V) |
|
BRIGHTNESS(nits) |
300cd/m2 |
|
CONTRAST RATIO |
1000:1 |
|
VIEW ANGLE |
1780/1780 |
|
RESPONSI TIME |
1.5ms |
|
V-FREQUENCCY |
60Hz |
|
Input and output | ||
Composite video input |
2 (BNC×2) |
|
Y,Pb,Pr/Y,Cb,Cr input |
1 (BNC×3) |
|
VGA input |
1 |
|
HDMI input |
1 |
|
RS232 Control mouth input and output |
RJ45X2 |
|
Composite video Output |
1 (BNC×1) |
|
VIDEO | ||
System |
PAL/NTSC/SECAM |
|
OSDdisplay | ||
MENU |
Chinese/English |
|
POWER | ||
Power input |
AC100V~240V,50/60Hz |
|
Max in operation |
=<16.7W (Max) |
|
Standby power loss |
<3W |
|
