19" rack mount lcd monitor with VGA,DVI,HDMI
Feature Descriptions:
1.Aluminum bezel with IP 65
2. Various of Sizes range from 5" to 46"( such as 5”,7", 8", 10.4", 12.1", 15", 17", 19", 20", 21.5", 22", 24", 26", 32", 37", 40", 42", 46" etc.), with 1.5 years’ warranties
3. Optional touch screen: 4-wire/5-wire Resistive, Infrared, SAW, Capacitive, with USB or RS232 touch screen interface.
4. With CE, RoHs, FCC, ISO 9001 approved
5. Wide temperature from -20 to 80 degree
6. Color of 16.7M make image more natural, fine and smooth.
7. Customized service is available
8. Long life span. Support 24hours all day and 365 days continuous heavy burden work
9. Applicable to ATM, kiosk, transportation, automatic vending machine, POS, gaming machine, medical device, etc, industrial areas
Data sheet:
| Specification | |
| 19" Industrial Monitor( Racked Mount) | |
| Mode Name | LC-MI1901R |
| Screen Size | 19" |
| Active Display Area (mm) | 376.32mm(W)×301.056mm(H) |
| Display Mode | 4:3 |
| LCD Type | TFT-LCD |
| Resolution | 1280×1024 |
| Display Color | 16.7M |
| Pixel Pitch(mm) | 0.294(H)×0.294(V) |
| Brightness(nits) | 250cd/m2 |
| Contrast Ratio | 1000:1 |
| Viewing Angle | 170(H) /160(V) |
| Response Time | 3.7ms |
| Backlight | LED |
| Interface | D-Sub15 pin(VGA),DVI,HDMI |
| Power | DC12V 4A 50HZ/ 60HZ/ 75HZ |
| Power Consumption | <=25W (Max) |
| Plug & Play | DDC 1/2B |
| OSD Control | Auto adjust, Brightness, Contrast, Hori. / Vert. Position, Clock, phase, Color, Language.. |
| MENU | Chinese/English(other languages supported) |
| Mount Method | |
| Mounting | Racked Mount |
| Optional Mounting Way | VESA 75mm/100mm |
| Certificate Approval | CE,RoHS,CCC,FCC,ISO9001 |
| Warranty | 1.5 years |
| Application | |
| ATM/ Kiosk/Transportation/ Industrial Automation/Medical Treatment | |

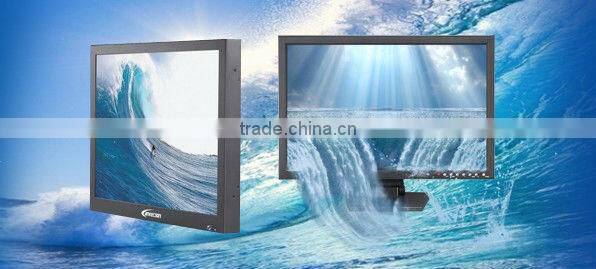

Product Showing:

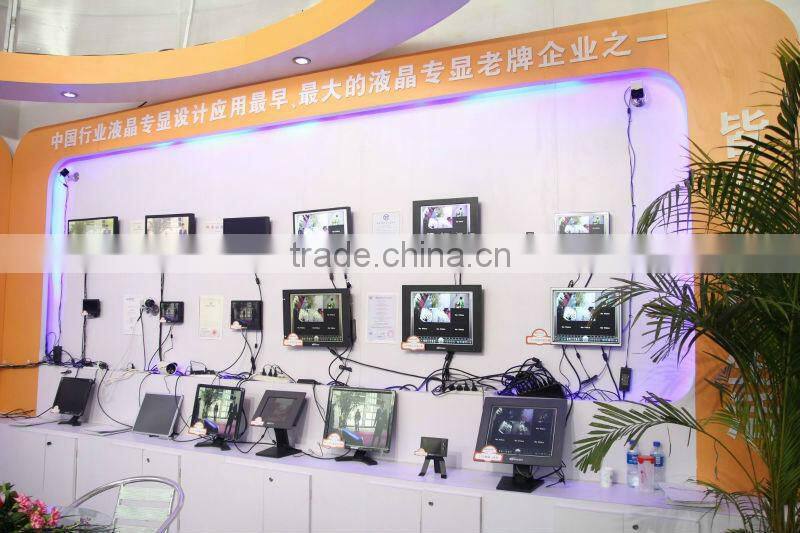

Company Showing
