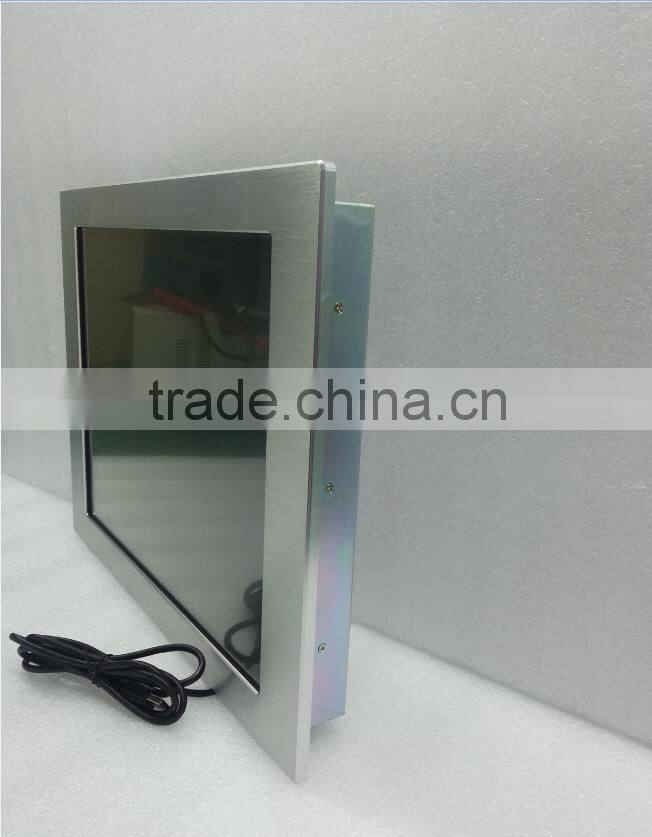

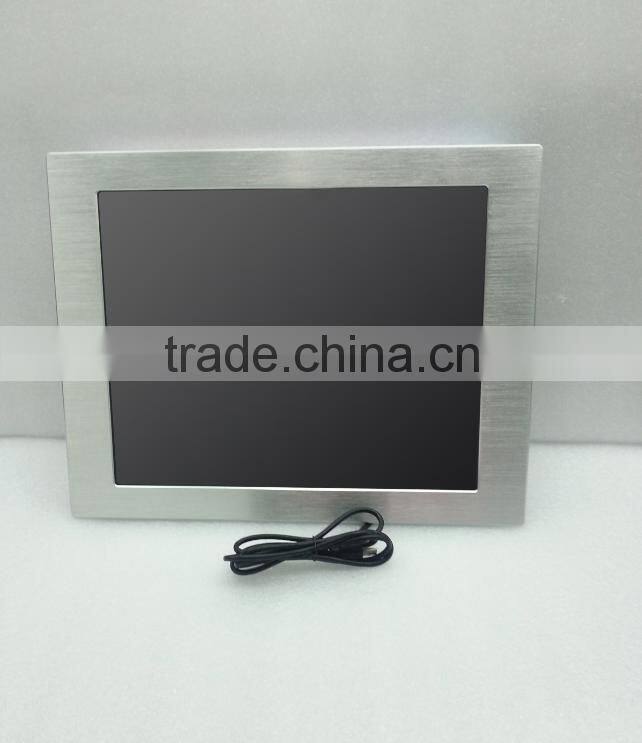

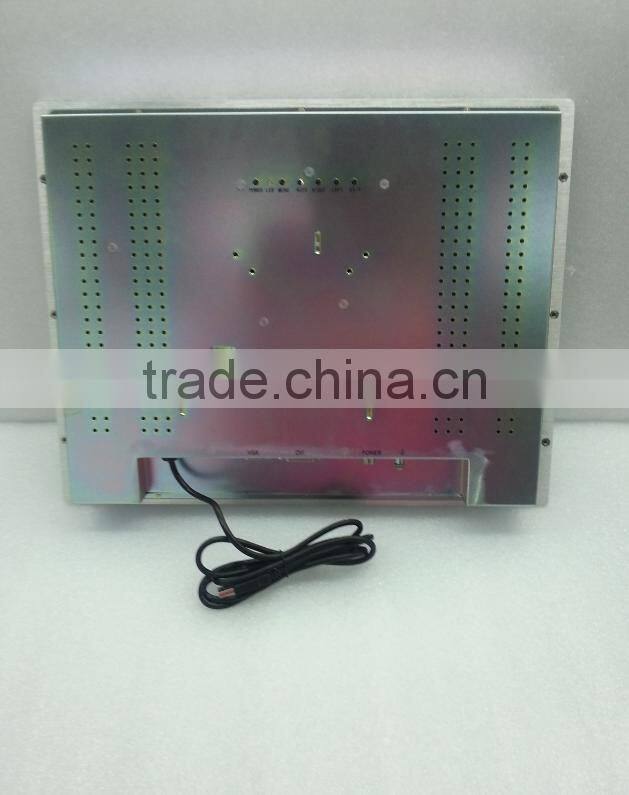

17" Industrial lcd touchscreen ip 65 monitor Embedded mount alumium bezel monitor
Features:
1. Aluminun bezel on the front, VESA Mount(75/100), VGA, HDMI, DVI input.
2. We can provide monitors from 5"-98", special size, resolution and interface is also available. Panel PC is available from your side.
3. With Samsung panel, and its A/D board is industrial grade with wide operating temperature from -20 to +80 degree, can be applied to special conditions.
4. Optional touchscreen: Resistive, Infrared, SAW, Capacitive, with RS232, USB, PS/2 touchscreen interface.
5. 1.5 years warranty and more than 50, 000h life span.
6. 5"-10.4" is with LED as backlight, 12"-20' CCFL, 22"-82" LED.
7. Applicable to ATM, kiosk, transportation, automatic vending machine, POS, gaming machine, medical device, etc, industrial areas.
8. Support English/Chinese/French/German/Italian/Spanish/Portugese/Dutch/Polish, etc.
9. Quick delivery, customer-focused solution with competitive price.
| Mode Name | LC-MI1701 |
| Screen Size | 17" |
| Active Display Area (mm) | 337.92mm(W)×270.336mm(H) |
| Display Mode | 4:3 |
| LCD Type | TFT-LCD |
| Resolution | 1280×1024 |
| Display Color | 16.7M |
| Pixel Pitch(mm) | 0.264(H)×0.264(V) |
| Brightness(nits) | 250nit |
| Contrast Ratio | 1000:1 |
| Viewing Angle | 170(H) /160(V) |
| Response Time | 4ms |
| Backlight | 2 CCFL |

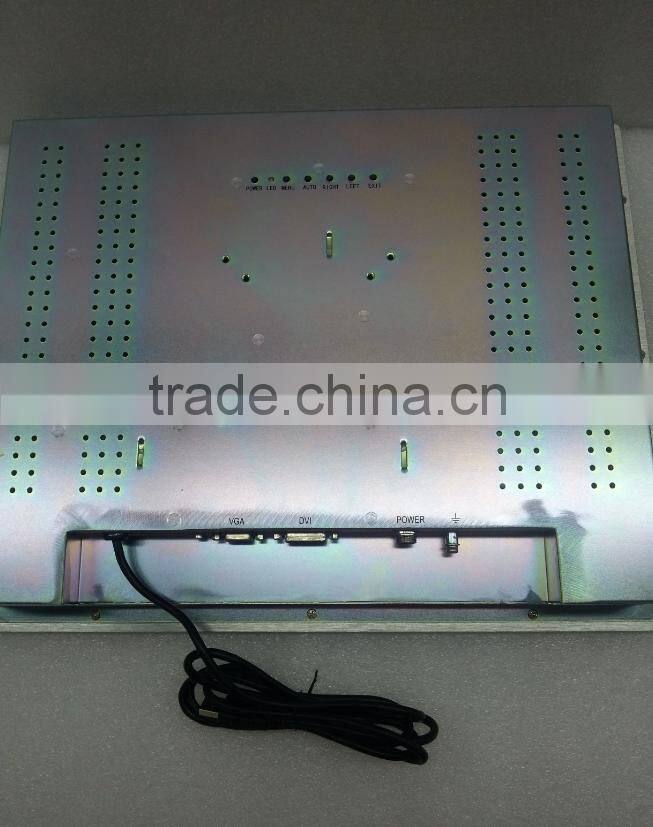

| Interface | D-Sub15 pin(VGA) |
| Optional interface | DVI,BNC |
| Power | DC12V 4A 50HZ/60HZ/70HZ |
| Power Consumption | less than 25W (Max) |
| Plug & Play | DDC 1/2B |
| OSD Control | Auto adjust, Brightness, Contrast, Hori. / Vert. Position, Clock, phase, Color, Language.. |
| MENU | Chinese/English(other languages supported) |
| Mount Method | |
| Mounting | Embedded Mount |
| Optional Mounting Way | VESA 75mm/100mm |
| Touch Type | |
| TouchScreen Type | Resistive(4-wire/5-wire) |
| Optional TouchScreen Type | SAW, IR ,Capacitive |
| TouchScreen interface | Serial (RS232) or USB(B) |
| Dimension(W×H×T) | 430×339×62.5(mm) |
| Certificate Approval | CE,RoHS,CCC,FCC,ISO9000(optional UL) |
| Warranty | 1.5 years |
| Application | |
| ATM/ Kiosk/Transportation/ Industrial Automation/Medical Treatment | |
Anrecson Electronics Co,Ltd was established in 1998,which is worldwide leading
manufacture,specialized in designing & producing touchscreen monitor ,
openframe monitor,industrial monitor,industrial panel pc,CCTV monitor and video wall ect.
>Price Terms:EXW,FOB,CNF,CIF, etc
Why us?
1.Low Price
Factory offer directly
2.High Quality
>15 years experience and China top 10 brand
>Samsung ,AUO,Sharp,LG original panel
>Industrial grade component
>CE,ROHS,FCC,CCC,ISO9001 certificates
3.Good Service
>Prompt response after receiving inquiry
Professional and clear answers about product
>Useful suggestions for your project
>Any customized service available
4.Fast Delivery
>3 to 5 working days for sample
>2 to 3 week for the mass products order
Warranty:
1.5 years (LCD panel and high brightness product: 1 year)
DOA:
If any product has quality problem, excluding damages caused by natural disasters or by human factors,
we give you unconditional replacement within 30 days from the day you receive it.
We undertake all transportation expense for this replacement.
RMA:
Beyond the above mentioned 30 days but within the one and half years of guarantee time,
if any product has quality problem, excluding damages caused by natural disasters or by human factors,
we undertakes half of transportation fee, that is, the customer pays the transportation fee
for the goods back to us and we for the goods back to the customer
Paid Maintenance:
Beyond the warranty time of one and a half years, if any product is in malfunction and needs repairing,
the customer should pay reasonable fee for the repair service according to the established price list
of maintenance and undertake all the transportation fee in the process of repair.
After customer’s agreement, we immediately provide our service for the customer.
