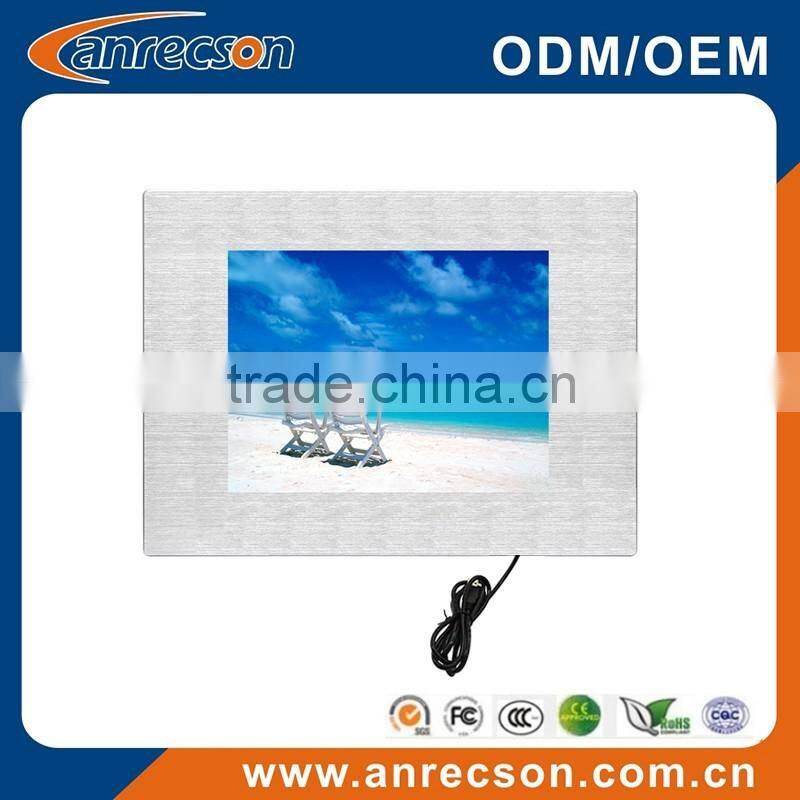

8" industrial touch monitor with aluminum bezel for industrial device IP65
Feature Descriptions:
1.Aluminum bezel with IP 65
2. Various of Sizes range from 5" to 82"( such as 5”,7", 8", 10.4", 12.1", 15", 17", 19", 20", 21.5", 22", 24", 26", 32", 37", 40", 42", 46", 55",65" 70",82" etc.), with 1.5 years’ warranties
3. Optional touch screen: 4-wire/5-wire Resistive, Infrared, SAW, Capacitive, with USB or RS232 touch screen interface.
4. With CE, RoHs, FCC, ISO 9001 approved
5. Wide temperature from -20 to 80 degree
6. Color of 16.7M make image more natural, fine and smooth.
7. Customized service is available
8. Long life span. Support 24hours all day and 365 days continuous heavy burden work
9. Applicable to ATM, kiosk, transportation, automatic vending machine, POS, gaming machine, medical device, etc, industrial areas
Data sheet:
| Specification | ||
| 8" Touch Industrial Monitor | ||
| Model Name | LC-MI0801ET-4R | |
| Screen Size | 8″ | |
| Active Display Area (mm) | 162mm(W)×121.5mm(H) | |
| Display Mode | 4:3 | |
| LCD Type | TFT-LCD | |
| Resolution | 800×600 | |
| Display Color | 16.7M | |
| Pixel Pitch(mm) | 0.0675(H)×0.2025(V) | |
| Brightness(nits) | 250cd/m2 | |
| Contrast Ratio | 500:1 | |
| Viewing Angle | 140(H) /120(V) | |
| Response Time | 10ms | |
| Backlight | LED backlights | |
| Interface | D-Sub15 pin(VGA),DVI,(HDMI BNC OPTIONAL) | |
| Power | DC12V 2A 50HZ/60HZ | |
| Power Consumption | <=10W (Max) | |
| Plug & Play | DDC 1/2B | |
| OSD Control | Auto adjust, Brightness, Contrast, Hori. / Vert. Position, Clock, phase, Color, Language.. | |
| MENU | Chinese/English(other languages supported) | |
| Mount Method | ||
| Mounting | Embedded Mount | |
| Optional Mounting Way | VESA 75mm/100mm | |
| Touch Type | ||
| TouchScreen Type | Resistive(4-wire) | |
| Optional TouchScreen Type | Resistive(5-wire), SAW, IR ,Capacitive | |
| TouchScreen interface | Serial (RS232) or USB(B) | |
| Certificate Approval | CE,RoHS,CCC,FCC,ISO9001 | |
| Warranty | 1.5 years | |
| Application | ||
| ATM/ Kiosk/Transportation/ Industrial Automation/Medical Treatment | ||
Company Showing
CeBIT Hannover 2013, Canton Fair, 2013 ISC WEST, China Sourcing Fair(HK), EXPOSEC 2013(Brazil), Computex Taipei 2013
Worldwide supplier of lcd monitor(open frame monitor, industrial monitor, touch monitor, CCTV monitor, medical monitor, etc), Panel PC, high brightness product, lcd digital signage, transparent LCD, Since 1998
| Remarks: | |||||
| 1. The price is based on USD currency and EXW terms. | |||||
| 2. Payment Terms: 100%T/T in advance for sample; 30% T/T deposit, 70% T/T before shipping for bulk order. | |||||
| 3. Delivery Time: 3-7 workdays for sample, 15-25 workdays for bulk order. | |||||
| 4. Warranty: 18 months | |||||
| 5. Certificates: CE, RoHS, FCC, CCC, ISO | |||||
