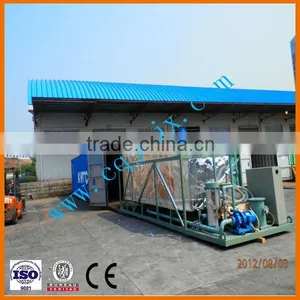

Help CenterZSC Used Black Engine Oil Recycling Machine
Related Products
-
JNC Black Oil Recycling MachineUS$ 290,000 - 360,000MOQ: 1 Set -
Chongqing ZSA-6 Waste Engine Oil Recycling EquipmentUS$ 500,000 - 530,000MOQ: 1 Set
-
ZSA Series Used Engine Oil Recycling MachineUS$ 120,000 - 580,000MOQ: 1 Set
-
Waste Oil Distillery Used Engine Oil Recycling Black Oil Bleaching MachineUS$ 80,000 - 700,000MOQ: 1 Set
-
New Technology for Used Engine Oil Recycling Vacuum Distillation PurifierUS$ 80,000 - 700,000MOQ: 1 Set
ZSC ENGINE OIL RECYCLING PURIFIER SERIES
Through many years’ hard work, the Company successfully developed the ZS-C series engine oil purification and discolourization purifier, which is a breakthrough in oil depolarization – a worldwide difficulty. This purifier can remove the tiny impurity dispersed in oil such as carbon particles and deep oxides, as well as bad substance such as colloid and bitumen. Thus, the clarity of oil recovered, engine oil quality is improved, performance of engine is restored, abrasion reduced. These would ensure correct operation of lubricant system of an engine and extend the life time of engine oil and engine as well. This kind of purifier is applicable to purification of various engine oil used for transport facilities such as ship and automobile.
Features:
( 1)It is a physiochemical application to eliminate the electric charge between polar particulate in waste oil, which is gathered into large particles and separated. The colloid, bitumen and other compound in oil are also removed while harmful gas and the water content are removed by the waste gas cleaner and the vacuum degasses function. Thus, the oil is cleaned and the effective constituent of oil is retained.
( 2)High precision stainless steel net is used, which is anti-corrosive, high temperature resistant and has a good mechanical strength and long lifetime. It is easy to use, and utilizes the economical pressure filter as filter medium.
( 3)Novel structure, good layout and is deemed as a “Mini Refinery”.
( 4)Very straight and evident effect and the machine can be used for multiple purposes.
( 5)Can be tailored to meet the needs of an individual customer..
|
Name |
Unit |
ZSC-1 |
ZSC-2 |
ZSC-3 |
ZSC-5 |
ZSC-8 |
ZSC-10 |
ZSC-15 |
ZSC-20 |
ZSC-25 |
|
capacity |
T/8-10 h |
1 |
2 |
3 |
5 |
8 |
10 |
15 |
20 |
25 |
|
Recovery rate |
% |
82~85% |
|||||||||
Recycled color |
≤3 |
||||||||||
Flash point |
°C |
≥220( According to deal with the oil depends ) |
|||||||||
Total acid |
mgKOH/g |
≤0.1 |
|||||||||
Filtration precision |
μm |
≤5 |
|||||||||
Water content |
ppm |
≤50 |
|||||||||
Working noise |
db(A) |
65~85 |
|||||||||
Pump pressure |
Mpa |
≤0.4 |
|||||||||
Power supply |
380V 50HZ( According to the customer's specific requirements to set ) |
||||||||||
Heating power |
KW |
48 |
60 |
72 |
96 |
126 |
144 |
168 |
216 |
252 |
|
Total power |
KW |
65 |
75 |
90 |
115 |
150 |
165 |
190 |
245 |
295 |
|
Heating time |
Hour |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
|
Filter area |
Square meters |
6 |
10 |
15 |
20 |
25 |
30 |
40 |
50 |
60 |
|
weight |
KG |
2600 |
3000 |
4000 |
5000 |
6000 |
7500 |
9500 |
14000 |
17000 |
|
Parameter list:
Comments: dimension & weight will be changed with the changing the technical specification.
The working principle of waste engine oil recycling purifier
When the equipment starts to work, firstly, the oil entry the filter, large particles of impurities should be removed, then pump the oil into the reactor and heating, plus chemical reagents for reaction, water is removed from the waste oil in the role of physical and chemical, the free carbon, pectin and pigment polymerized. then pump into the large area of filtration system for removal of the polymerized carbon, impurities, colloid, so that the harmful ingredients is removed from waste oil, finally the oil flow out from the outlet reach the standard of clear and transparent. In order to deal with tail gas, the equipment uses the organic solvent spray and absorber device to absorb & dissolve the exhaust gas, so that the gas is friendly with environment. Equipment components: equipment consists of pumps, reactor, heating systems, feed system, filtration systems, and tail gas treatment system.
Heating system consists of the heater, temperature controller, temperature sensors and other components. Waste oil carry out the heat exchange, & remove the water in reactor, which create favorable conditions for reaction of waste oil in the reactor. Filter system consists of large area of the filter components, thus ensuring that the oil after finish the reaction will be timely filtered out, so as to enhance work efficiency and cost savings.
Exhaust gas treatment system:During the process, waste oil being processed will produce a certain smell, in order to protect the environment; we need to deal with emissions. ZSC adopts the special exhaust gas treatment system to dealing these gases. The water solvent to spray and absorb the harmful gas, after absorbed and dissolved the gas should be emission standard.
Control segment and protection system
1) When the power lines of the equipment is short-circuited or current overload, the power protection part starts and cut off power, equipment stops working, so as to protect the safety of equipment.
2) When the oil temperature reaches a temperature set by temperature controller, the controller send out signal, and the heater stops working, Instead the heating can be carried out.
3) When the pressure of the filtration system over design standards, the pressure controller sensing signal, thereby warning and shutdown.
The equipment uses physical and chemical ways to treat the waste oil.
(1) Using heating system to deal with water, so that water content in oil reaches the national standard of no traces.
(2) The use of filtration systems for the filtering of mechanical impurities in waste oil, so that the mechanical impurities are removed.
(3) The use of chemicals to treat the free carbon colloid, asphaltene, pigment in the waste oil, that is polymerization, and then add the adsorption agent for chemical treatment, so that the color of waste oil becomes crystal and clear. This method will not disrupt the nature of oil, that is to say, it will not damage hydrocarbon alkyl components of oil
(Note: the composition of lubricating oil is mainly cycloalkanes.)
