Home > Products > Pressure Oil Purifier > LY PLATE PRESSURE OIL PURIFIER MACHINE SERIES/plate and Frame Oil Filter/oil Filtration Machine

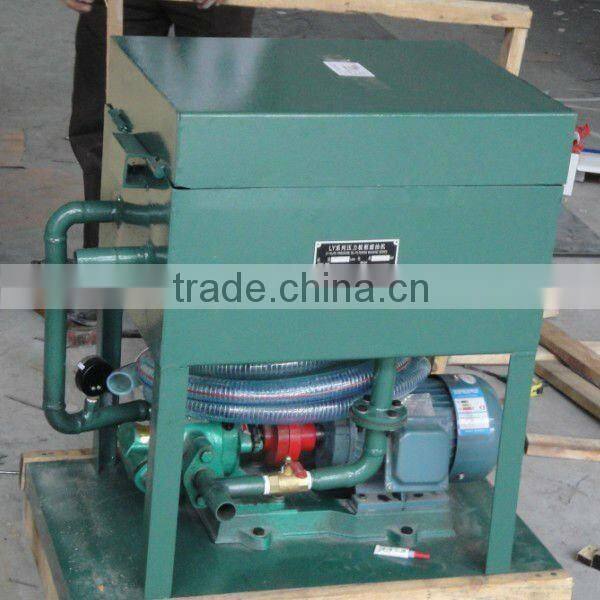

LY PLATE PRESSURE OIL PURIFIER MACHINE SERIES/plate and Frame Oil Filter/oil Filtration Machine
- chongqing or shanghai
- T/T D/P D/A
You May Like
Product Details
| Condition | New | Flow | 200L/M | |
| Working Pressure | Negative Pressure | Place of Origin | Chongqing, China | |
| Brand Name | JunNeng | Model Number | LY-200 | |
| Usage | Other | Voltage | 220~415V | |
| Power(W) | 3KW | Dimension(L*W*H) | Pack | |
| Weight | 200KG | Certification | ISO9001:2000,CE | |
| After-sales Service Provided | No overseas service provided |
Product Description
There is filtering media, such as filtering paper or filtering cloth, installed between the plastic filter board and filter plate that will be fixed to form a single filtering room under the pressure of the packing device. The filtering paper or filtering fuse packed between the filter board and filter plate will play a role of filtering. It's characterized by simple structure, easy operation, low cost, ect.
Technical Parameters
Model | LY-30 | LY-50 | LY-100 | LY-125 | LY-150 | LY-200 | LY-300 | |
Rated FlowL/min | 30 | 50 | 100 | 125 | 150 | 200 | 300 | |
Working pressure MPa | 0∼0.5 | |||||||
Filter Area | ≥0.3 | ≥0.39 | ≥1.3 | ≥1.54 | ≥1.89 | ≥2.01 | ≥3.1 | |
Plate size mm | 280×280 | 320×320 | ||||||
Way for compressing | Manually pressed spiral | |||||||
The number of filter box | 11 | 13 | 17 | 11 | 13 | 19 | 25 | |
The Number of plate | 12 | 14 | 18 | 12 | 14 | 20 | 26 | |
Power supply | 380V 50HZ | |||||||
Total Power (KW) | 0.75 | 1.1 | 2.2 | 2.2 | 3 | 4 | 5.5 | |
Rate r/min | 1440 | |||||||
Filter precision μm | ≤5 | ≤3 | ||||||
Filter size mm | 285×290 | 325×330 | ||||||
Inlet diameter mm | φ32 | φ32 | φ42 | φ50 | φ50 | φ60 | φ60 | |
Outlet diameter mm | φ25 | φ25 | φ38 | φ42 | φ42 | φ50 | φ50 | |
Dimension | L(mm) | 750 | 800 | 850 | 800 | 850 | 920 | 1000 |
W(mm) | 530 | 530 | 530 | 600 | 600 | 600 | 600 | |
H(mm) | 930 | 930 | 930 | 1100 | 1100 | 1100 | 1100 | |
Weight kg | 80 | 95 | 130 | 180 | 210 | 250 | 300 | |
Attention:Dimension and weight will be changed with changing the technical specification.
