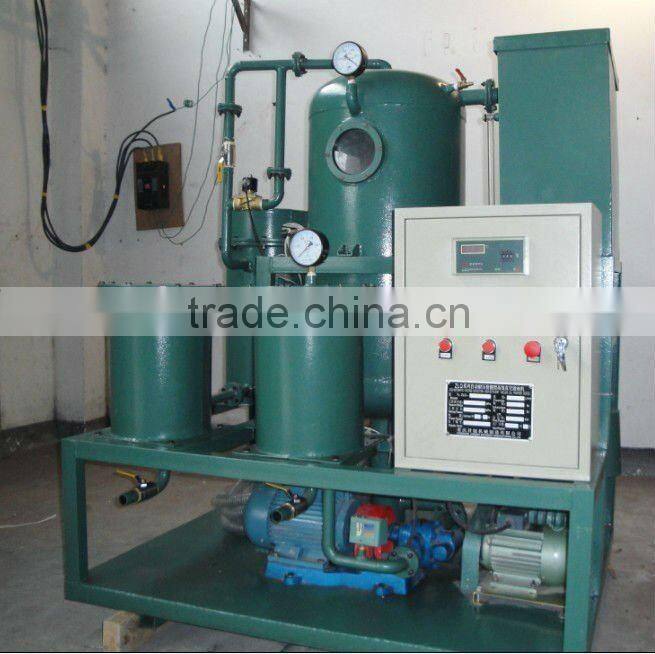

Provide Zl-100 Junneng Hige-efficient Vacuum Oil Purifier/transformer Oil Purifier/insulation Oil Recycling Machine
- chongqing or shanghai
- T/T Money Gram
You May Like
-
ZL Best Quality Single Vacuum Purifier Remove Impurities From Transfomer Oil
-
Two-Stage Vacuum Purifier For Capacitor Oil
-
ZLA Vacuum Filtration Apparatus/Vacuum Oil Purifier
-
ZLC Transformer Oil Recycling Machine/insulation Oil Purifier
-
ZLC New Generation Transformer Oil Purifier/Insulating Oil Dehyation Equipment
-
ZLC Transformer Oil Regeneration Purifier/ Insulating Oil Purification
Product Details
| Condition | New | Flow | 100L/m | |
| Working Pressure | -0.3 | Place of Origin | Chongqing, China | |
| Brand Name | junneng | Model Number | ZL-100 | |
| Usage | Other, vacuum | Voltage | 220~415V | |
| Power(W) | 60Kw | Dimension(L*W*H) | 2*1.8*1.2m | |
| Weight | 600KG | Certification | ISO9001:2000 | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
-Usage:
It is widely used in power plant, hydropower station, electric power company, metallurgy, petrifaction, railroad, etc. It can purify unqualified transformer oil, mutual-inductor oil, switch oil and capacitor oil, also rapidly dehydrate, degasify and purify oil. Meanwhile, it also has the function of drying electric machine and injecting oil to electric equipment.
---Characteristics:
A: Super dehydration and degasification system. We adopt large cubage to rapidly separate water and gas from oil.
B: Reliable heating system to ensure heating and stable oil temperature.
C: Precise filtration system adopts high-grade filtration materials which has advantages of good mechanical intensity, multi-level filtration, gradually intensive and high filtration precision system.
D: Advanced pressure protection device and infrared control system can avoid the influence of wrong operation.
E: Integration has chain security protection. It can automatically control the oil pressure and oil level.
F: This machine can be used with BZ series of transformer oil discoloring device together to add the function of acid-removing, discoloring, uncombined carbon removing, and reducing damage.
Technical Parameters
Model | ZL-20 | ZL-30 | ZL-50 | ZL-70 | ZL-100 | ZL-150 | ZL-200 | |
Rated Flow( L/min) | 20 | 30 | 50 | 70 | 100 | 150 | 200 | |
Vacuum Range | -0.05— -0.099Mpa | |||||||
Temperature Range | 60—80 Degree centigrade | |||||||
Oil pump pressure | 0.05-0.3Mpa | |||||||
Total Power (kw) | 25 | 25 | 32 | 32 | 42 | 50 | 60 | |
Breakdown Voltage | ≥55kv | |||||||
Power | 50HZ 380V | |||||||
Working Noise | 65—80 db(A) | |||||||
Cleanliness | ≤NAS 6 (NAS1638) | |||||||
Water content in oil | ≤5ppm | |||||||
Gas content in oil | ≤0.1% | |||||||
Filter precision | ≤5um | |||||||
Inlet (outlet) diameter(mm) | 33 | 33 | 48 | 48 | 60 | 60 | 60 | |
Dimension(mm) | L | 1100 | 1100 | 1200 | 1250 | 1300 | 1400 | 1550 |
W | 700 | 700 | 800 | 850 | 900 | 1000 | 1200 | |
H | 1300 | 1350 | 1400 | 1450 | 1520 | 1600 | 1800 | |
Attention: Dimension and weight will be changed with changing the technical specification.
