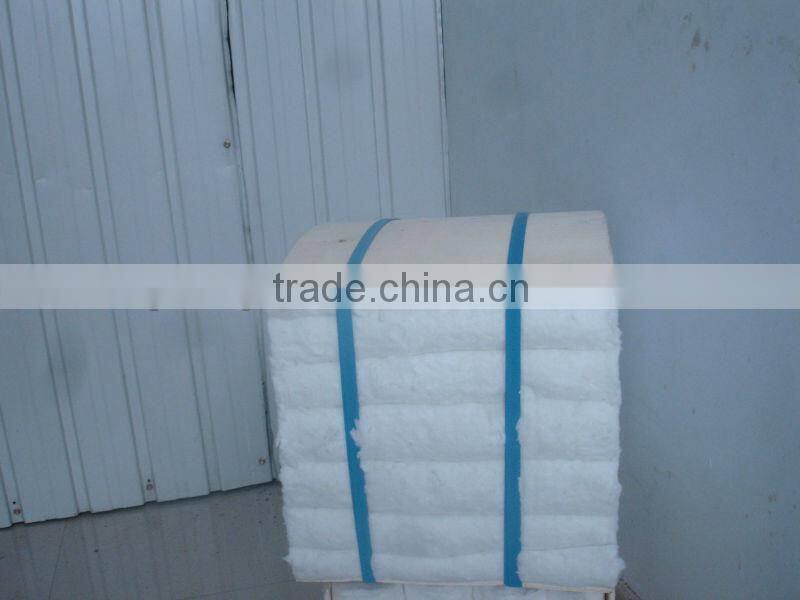

Ceramic Fiber Module ( 1140~1430 Celsius Degree)

Specifications

Ceramic fiber module:
Maximum temperature:1430C
size:300x300x200/250mm
density:200/220kg/m3
anchor and stud are available.

• LUYANGWOOL ceramic fiber module are made from LUYANG ceramic fiber blanket. These blocks are specially designed to meet or improve the thermal insulation requirements of industrial furnaces.



           Application



• Ceramic industry~ low mass kiln cars,contiual and batch kiln,door linings,glazing,porcelain furance liners.
• Power generation~ duct lining,heat recovery,boiler insulation,stack linings
• Refing and petrochemical: ethylene furnace roof and wall,pyrolysis furnace lining,reformer furnace roof and wall.boiler lining.
• Steel industry~heat treat furnace,ladle pre-heaters and covers,soaking pit covers and seals,heaters and reformer lining.
• Others:incineration equipment,burner blocks,induction furnace covers,glass tempering furnace.

          Technical Data Sheet

• Shringkage on heating (%)   1350CX24h ≤-3
• Slag content ( diameter ≥0.212mm)(%): ≤20

          Standard Specification

• Width:  300mm
• Thickness: 200/250mm
• Density: 200-220kg/m3
