Home > Products > New Products > Anti Tracking Breakout Breakout

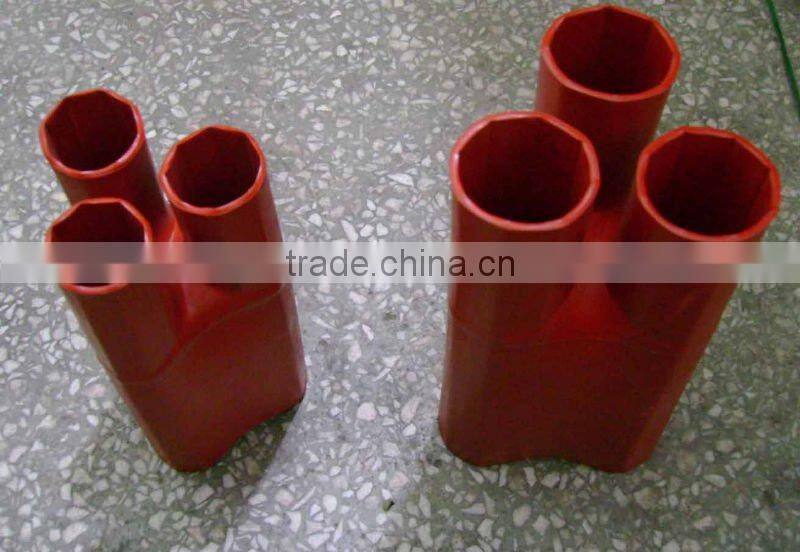

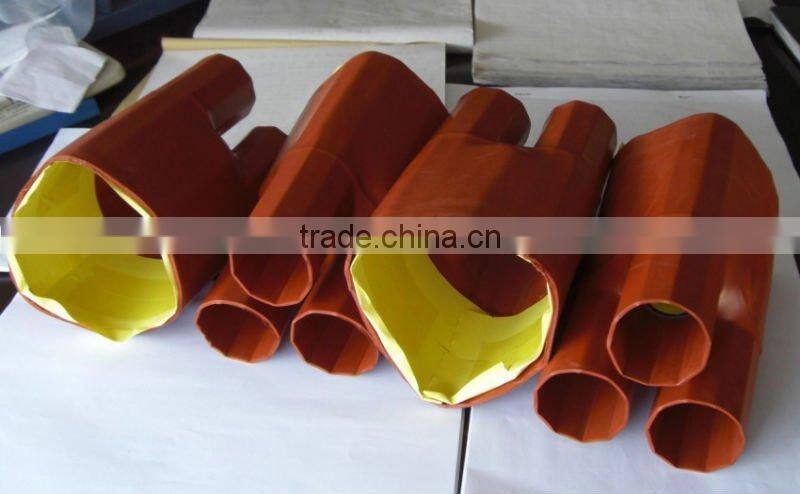

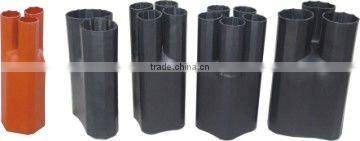

Anti Tracking Breakout Breakout
Negotiable
/ Piece
500 Pieces(Min. Order)
- Ningbo
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | HEAG | |
| Model Number | ZT-4.3 | Type | Heat Shrinkable | |
| Material | PE |
Product Description
Specifications
There are 3 clors: red, black and mauve. Dia of body and finger is available. The elongation at breakis 300%, and longitudinal
| Specification | Dia of Body | Dia of finger | size of conductor(mm2) | usage range | color |
| ZT-2.0 | 22/12 | 11/3.5 | 10-16mm2 | LV termination for 2 cores | black |
| ZT-2.1 | 38/19 | 15/5 | 25-50mm2 | ||
| ZT-2.2 | 58/23 | 26/8.5 | 70-120mm2 | ||
| ZT-2.3 | 88/42 | 33/14 | 150-240mm2 | ||
| ZT-3.00 | 26/20 | 11/5.4 | LV,HV termination for 3 cores | black,redmauve | |
| ZT-3.0 | 53/26 | 25/7 | 10-16mm2 | ||
| ZT-3.1 | 73/39 | 30/10 | 25-50mm2 | ||
| ZT-3.2 | 88/48 | 38/15 | 70-120mm2 | ||
| ZT-3.3 | 108/60 | 47/18 | 150-240mm2 | ||
| ZT-3.4 | 125/70 | 65/25 | 300-500mm2 | ||
| ZT-4.0 | 33/22 | 13/5 | 10-16mm2 | LV termination for 4 cores | black |
| ZT-4.1 | 40/26 | 16/6 | 25-50mm2 | ||
| ZT-4.2 | 64/33 | 26/7.5 | 70-120mm2 | ||
| ZT-4.3 | 76/42 | 33/11 | 150-240mm2 | ||
| ZT-5.0 | 35/21 | 13/5 | 10-16mm2 | LV termination for 5 cores | black |
| ZT-5.1 | 52/29 | 16/5 | 25-50mm2 | ||
| ZT-5.2 | 80/39 | 26/10 | 70-120mm2 | ||
| ZT-5.3 | 93/46 | 33/11 | 150-240mm2 |
