Description of Heat Shrink Tube
1. Heat shrink tube is a mechanically expanded extruded plastic tube ordinarily made of nylon or polyolefin, which shrinks when heated in an effort to return to the relaxed diameter it originally had when extruded.
2.Heat shrink tube is used to insulate wires, providing abrasion resistance and environmental protection for stranded and solid wire conductors, connections, joints and terminals in electrical engineering. It can also be used to repair the insulation on wires or to bundle them together, to protect wires or small parts from minor abrasion, and to create cable entry seals, offering environmental sealing protection.

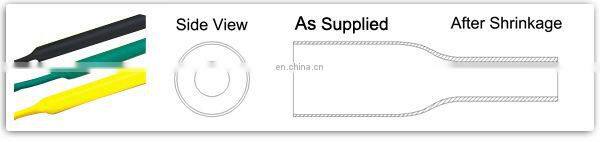

Diagrammatic Drawing of Heat Shrink Tube
Data sheet of cable sleeve
| ltem No. | As Supplied | After Shrinkage | Packing (M/Roll) | ||
| I.D(mm) | Thickness | I.D(mm) | Thickness | ||
| BT-1 | 1.0 | 0.2±0.05 | 0.5 | 0.4±0.05 | 400 |
| BT-1.5 | 1.5 | 0.2±0.05 | 0.75 | 0.4±0.05 | 300 |
| BT-2 | 2.0 | 0.25±0.05 | 1.0 | 0.45±0.1 | 200 |
| BT-2.5 | 2.5 | 0.25±0.05 | 1.25 | 0.45±0.1 | |
| BT-3 | 3.0 | 0.25±0.05 | 1.5 | 0.45±0.1 | 100 |
| BT-3.5 | 3.5 | 0.25±0.05 | 1.75 | 0.45±0.1 | |
| BT-4 | 4 | 0.25±0.05 | 2.0 | 0.45±0.1 | |
| BT-5 | 5 | 0.35±0.05 | 2.5 | 0.55±0.1 | |
| BT-6 | 6 | 0.35±0.05 | 3.0 | 0.55±0.1 | |
| BT-7 | 7 | 0.35±0.05 | 3.5 | 0.55±0.1 | |
| BT-8 | 8 | 0.35±0.05 | 4.0 | 0.55±0.1 | |
| BT-9 | 9 | 0.35±0.05 | 4.5 | 0.55±0.1 | |
| BT-10 | 10 | 0.35±0.05 | 5.0 | 0.60±0.1 | |
| BT-11 | 11 | 0.35±0.05 | 5.5 | 0.60±0.1 | |
| BT-12 | 12 | 0.35±0.05 | 6.0 | 0.70±0.1 | |
| BT-13 | 13 | 0.35±0.1 | 6.5 | 0.70±0.1 | |
| BT-14 | 14 | 0.35±0.1 | 7.0 | 0.70±0.1 | |
| BT-15 | 15 | 0.35±0.1 | 7.5 | 0.70±0.1 | |
| BT-16 | 16 | 0.35±0.1 | 8.0 | 0.70±0.1 | |
| BT-17 | 17 | 0.35±0.1 | 8.5 | 0.70±0.1 | 50 |
| BT-18 | 18 | 0.35±0.1 | 9.0 | 0.80±0.1 | |
| BT-20 | 20 | 0.4±0.1 | 10.0 | 0.90±0.1 | |
| BT-22 | 22 | 0.5±0.1 | 11.0 | 0.90±0.1 | |
| BT-25 | 25 | 0.5±0.1 | 12.5 | 0.90±0.1 | |
| BT-28 | 28 | 0.5±0.1 | 14.0 | 0.90±0.1 | |
| BT-30 | 30 | 0.5±0.1 | 15.0 | 1.00±0.2 | 25 |
| BT-35 | 35 | 0.5±0.1 | 17.5 | 1.00±0.2 | |
| BT-40 | 40 | 0.5±0.1 | 20.0 | 1.00±0.2 | |
| BT-50 | 50 | 0.5±0.1 | 25.0 | 1.00±0.2 | |
| BT-60 | 60 | 0.6±0.1 | 30.0 | 1.20±0.2 | |
| BT-70 | 70 | 0.6±0.1 | 35.0 | 1.20±0.2 | |
| BT-80 | 80 | 0.6±0.1 | 40.0 | 1.20±0.2 | |
| BT-90 | 90 | 0.6±0.1 | 45.0 | 1.3±0.2 | |
| BT-100 | 100 | 0.7±0.1 | 50.0 | 1.3±0.2 | |
| BT-150 | 150 | 0.8±0.1 | 475.0 | 1.60±0.2 | |
Approved Data of cable sleeve
UL2240, 105°C, 660V, VW-1, CSA, 125°C, 660V, OFT
F:105°C(UL, CSA)
F2:125°C(UL, CSA)
F32:125°C(UL,DSA)

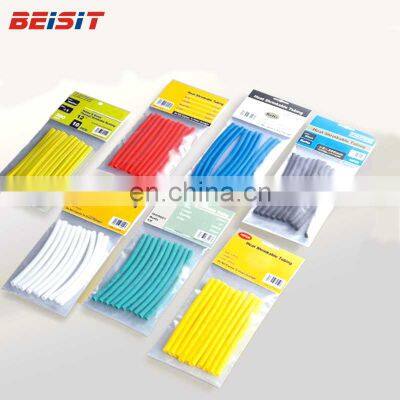

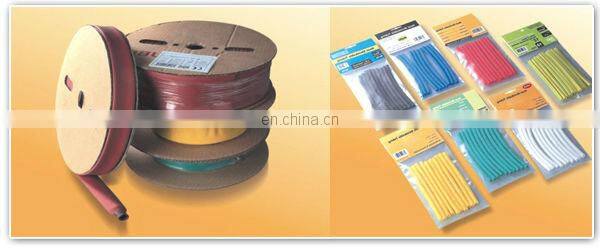

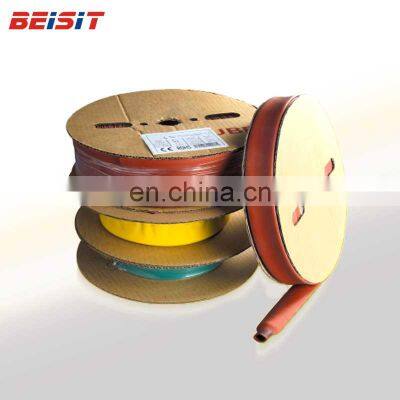

Package of cable sleeve
A.Common Packing: certain meters per roll+Export Carton,
B.100 pcs+Polybag+Label+Export Carton,
C.Customized Packing:Polybag packing, Header card packing, Blister with card packing, Double blister packing, Canister packing, other packing can be supplied according customers request.
Packing for delivery of cable sleeve

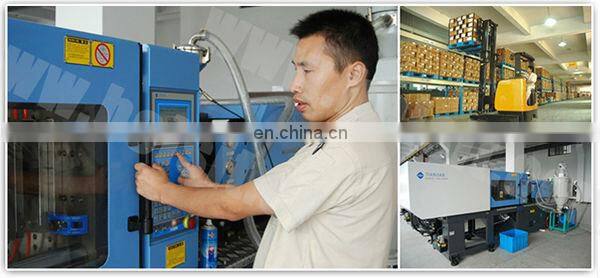

Production of cable sleeve

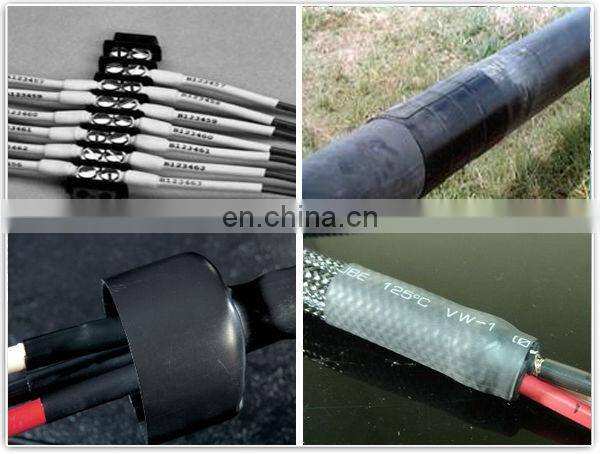

Usage of cable sleeve
Exhibitions in Germany, Dubai, Brazil and Hong Kong
Company image
