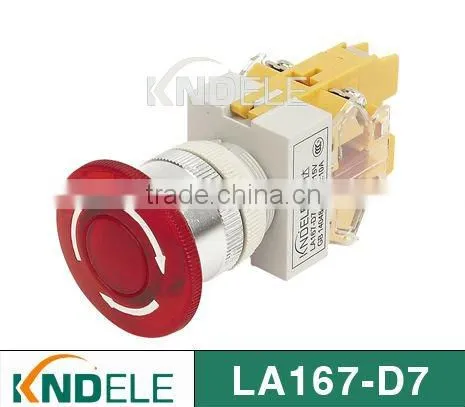

Help CenterMushroom Head Emergency Stop Push Button Switch Silver Contact Grade A D7-11ZSD
Related Products
-
Double Push Button Waterproof Switch Silver Contact Grade A LA167-B2-BLNegotiableMOQ: 10 Pieces -
Control Switch Ten Word Lords Silver Contact Grade A LA167-B2-PA14NegotiableMOQ: 10 Pieces
-
Control Switch Ten Word Lords Silver Contact Grade A LA167-C402NegotiableMOQ: 10 Pieces
-
Control Switch Ten Word Lords Silver Contact Grade ANegotiableMOQ: 10 Pieces
-
Double Push Button Switch With Light,direct Type Silver Contact Grade A LA167-B2-BWNegotiableMOQ: 10 Pieces
Specifications
our companyis certified as Yellow Supplier by Zhejiang CHINT Electric Co.,LtdDescription
Zhejiang Kenaida push button CO.,LTD is a professional push button and indicator manufacturer,Through years of painstaking operation and development , we had own more than 30 series of push button and accessories , and researched 1-2 series of new products.
please remind us which type and color you want .thank you .If you want one piece ,please contact us.
| Technical Parameters | |||||
| Nominal insulation voltage Ui(V) | 380V | ||||
| Rated current lth(A) | 10A | ||||
| Rated operational voltage ue(v) | 380 | 250 | 240 | 125 | |
| Rated operationalcurrent le(A) | AC-15 | 2.5 | 3 | ||
| DC-13 | 0.27 | 0.55 | |||
| Environment Features | |
| Match a standard | CB14048 5-2008,IEC 60947-5-1 |
| Ambient temperature | |
| Protection level | IP40 |
| Contact Features | |
| Contact action | slow move NO or NC |
| Contact resistance | ≤ 50mQ |
| Mechanical life | ≥1000000 |
| Electrical durability | AC ≥100000 |
| Short-circuit protection | RT16-10A |
| mushroom head push button | ||||
| Elucidation | Color | Contact type | Model number | |
|
|
|
white | 1NO+1NC | D7-11ZSD |
| green | 1NO+1NC | D7-11ZSD | ||
| red | 1NO+1NC | D7-11ZSD | ||
| yellow | 1NO+1NC | D7-11ZSD | ||
| blue | 1NO+1NC | D7-11ZSD | ||
PACKAGING
1 If the quantity is big enough ,we can do the packaging according to your requirement and in your brand .There is no extra charge for you.
2 Each product is sealed by polythelene bag .It can be always in good condition no matter how long it is in stock.
3 Every box also is sealed by polythelene bag,protecting the goods from water.Even though it is shipped by sea.
4 The goods are using standard packaging.
EXPORTING
1 Our customers are all around the world and the quantity demand is large.After the payment ,the samples will be sent ASAP.
2 After confirming the payment ,the samples will be sent by DHL,UPS,FEDEX and so on .
3 We can help your agent which in china to deal with the exporting process.
4 The goods also can be exproting by your trading company .
5 You can contact our sale department for more details
