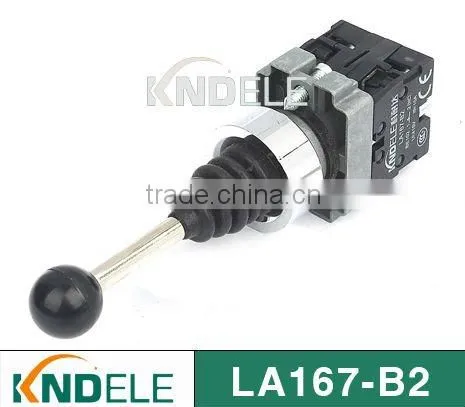

Double Push Button Switch With Light,direct Type Silver Contact Grade A LA167-B2-BWNegotiableMOQ: 10 Pieces -
Rotary Switch, 2 or 3 Position Selector Switch With a Key,silver Contact XB5-AGNegotiableMOQ: 10 Pieces
-
Momentary on off Push Button Switch ,silver Contact ,XB5-ALNegotiableMOQ: 10 Pieces
-
Flat Momentary Press Push Button Reset Switch ,silver Contact B5-AANegotiableMOQ: 10 Pieces
-
Rotary Switch, 2 or 3 Position Selector Switch ,silver Contact ,XB5-ADNegotiableMOQ: 10 Pieces
Specifications
1. many kinds2. our companyis certified as Yellow Supplier by Zhejiang CHINT Electric Co.,Ltd
Description

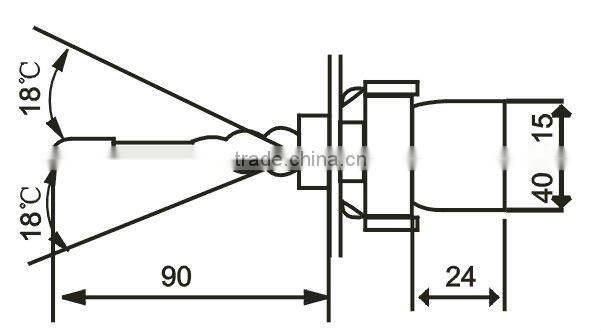

These are our company's models in the picture , you can add X before the models. If you want one for sample ,please contact us .thank you.
| Technical Parameters | |||||
| Nominal insulation voltage Ui(V) | 380V | ||||
| Rated current lth(A) | 10A | ||||
| Rated operational voltage ue(v) | 380 | 250 | 240 | 125 | |
| Rated operationalcurrent le(A) | AC-15 | 2.5 | 3 | ||
| DC-13 | 0.27 | 0.55 | |||
| Environment Features | |
| Match a standard | CB14048 5-2008,IEC 60947-5-1 |
| Ambient temperature | -25°c- +55°c |
| Vibration resistance | ≤ 500HZ , amplitude about 1.0mm |
| Shock resistance | ≥10g |
| Protection level | IP40,IP65 |
| Contact Features | |
| Contact action | NO or NC |
| Contact resistance | ≤ 50mQ |
| Mechanical life | ≥1000000 |
| Electrical durability | AC ≥100000 |
| Short-circuit protection | RT16-10A |
| Elucidation | Contact Type | Reference | ||
|
Locked | 2NO | B2-PA12 | |
| Spring leset | 2NO | B2-PA22 | ||
| Locked | 2NO+2NC | B2-PA14 | ||
| Spring leset | 2NO+2NC | B2-PA24 | ||
| 4NO | C402 | |||
| 4NO | C4022 | |||
| 2NO | C201 | |||
| 2NO | C2011 | |||
| Key | 4NO | KKD-FW14 | ||
| auto-reset | 2NO | KKD-FW24 | ||
PACKAGING
1 If the quantity is big enough ,we can do the packaging according to your requirement and in your brand .There is no extra charge for you.
2 Each product is sealed by polythelene bag .It can be always in good condition no matter how long it is in stock.
3 Every box also is sealed by polythelene bag,protecting the goods from water.Even though it is shipped by sea.
4 The goods are using standard packaging.
EXPORTING
1 Our customers are all around the world and the quantity demand is large.After the payment ,the samples will be sent ASAP.
2 After confirming the payment ,the samples will be sent by DHL,UPS,FEDEX and so on .
3 We can help your agent which in china to deal with the exporting process.
4 The goods also can be exproting by your trading company .
5 You can contact our sale department for more details.
