Help CenterDouble Push Button Switch With Light,direct Type Silver Contact Grade A LA167-B2-BW
Related Products
-
Rotary Switch, 2 or 3 Position Selector Switch With a Key,silver Contact XB5-AGNegotiableMOQ: 10 Pieces -
Momentary on off Push Button Switch ,silver Contact ,XB5-ALNegotiableMOQ: 10 Pieces
-
Flat Momentary Press Push Button Reset Switch ,silver Contact B5-AANegotiableMOQ: 10 Pieces
-
Rotary Switch, 2 or 3 Position Selector Switch ,silver Contact ,XB5-ADNegotiableMOQ: 10 Pieces
-
Push-pull Mushroom Emergency Push Button Switch ,silver Contact XB5-ATNegotiableMOQ: 10 Pieces
Specifications
1. Double push button switch with light2. CCC,CE ,ISO9001:2008,IAF,UKAS
3. certified as Yellow Supplier by CHINT
Description

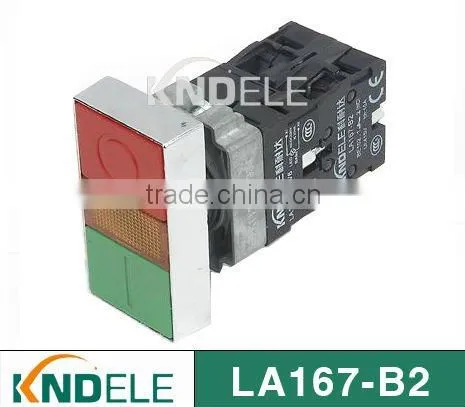

These are our company's double push button switch with light models in the picture , you can add X before the double push button switch with light models. If you want one double push button switch with light for sample ,please contact us .thank you.
| double push button switch with light Technical Parameters | |||||
| Nominal insulation voltage Ui(V) | 380V | ||||
| Rated current lth(A) | 10A | ||||
| Rated operational voltage ue(v) | 380 | 250 | 240 | 125 | |
| Rated operationalcurrent le(A) | AC-15 | 2.5 | 3 | ||
| DC-13 | 0.27 | 0.55 | |||
| double push button switch with light Environment Features | |
| Match a standard | CB14048 5-2008,IEC 60947-5-1 |
| Ambient temperature | -25°c- +55°c |
| Vibration resistance | ≤ 500HZ , amplitude about 1.0mm |
| Shock resistance | ≥10g |
| Protection level | IP40,IP65 |
| double push button switch with light Contact Features | |
| Contact action | NO or NC |
| Contact resistance | ≤ 50mQ |
| Mechanical life | ≥1000000 |
| Electrical durability | AC ≥100000 |
| Short-circuit protection | RT16-10A |
| Elucidation | Contact Type | Reference | ||
|
|
|
1NO+1NC | B2-BW8365 | |
| 1NO+1NC | B2-BW8465 | |||
Our double push button switch with light have waterproof function
Our double push button switch with light use the fireproof material which can protact it from burning
Our double push button switch with light screw is done by environmental protection plating,after the special technology,it is better to stand wear and tear
The double push button switch with light contact is done by silver alloy ,which is riveting full-automatic and the working life is more than one hundred thousand times.
