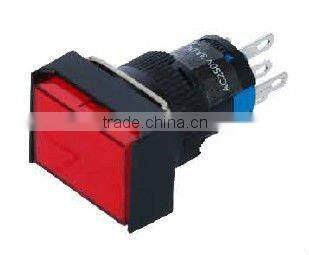

16MM Rectangle Head Mini Push Button Switch With Light 2NO+2NC KD16-11JD KD16-22JD

Specifications

Description

           Zhejiang Kenaida push button CO.,LTD is a professional push button and  indicator manufacturer,Through years of painstaking operation and development , we had own more than 30 series of push button and accessories , and researched 1-2 series of new products.

       These are our company's models in the picture .please remind us which type and color you want .whether you want neutral(no brand) or our brand on the goods? also remind us . if you don't remind , we will sent the goods at  random .thank you .If you want one piece ,please contact us.

Performance Characteristics
Operational temperation			-25°c  - +55°c  (No frozen)
			Make Airiness around the product
Operational humidity			45- 85%RH (No frost)
Contact Resistance			≤50MΩ
Insulation Resistance			≥100MΩ
	between the contact and the lamp pin		2000V,AC50HZ,1min
	between the homopolar terminal		1000V,AC50HZ,1min
	between different terminal		2000V,AC50HZ,1min
Endure Dibratility			50HZ,1.2mm
Endure Impact			≥10g
Life	auto-return button		1000000
	auto-return button,selector button		500000
	emergency stop button , key button		100000

Elucidation	Color		Contact	Reference
Take a light square head button
		clean	1NO+1NC	KD16-11JD
		green	1NO+1NC	KD16-11JD
		red	1NO+1NC	KD16-11JD
		yellow	1NO+1NC	KD16-11JD
		blue	1NO+1NC	KD16-11JD
		clean	2NO+2NC	KD16-22JD
		green	2NO+2NC	KD16-22JD
		red	2NO+2NC	KD16-22JD
		yellow	2NO+2NC	KD16-22JD
		blue	2NO+2NC	KD16-22JD

PACKAGING

1 If the quantity is big enough ,we can do the packaging according to your requirement and in your brand .There is no extra charge for you.

2 Each product is sealed by polythelene bag .It can be always in good condition no matter how long it is in stock.

3 Every box also is sealed by polythelene bag,protecting the goods from water.Even though it is shipped by sea.

4 The goods are using standard packaging.

EXPORTING

1 Our customers are all around the world and the quantity demand is large.After the payment ,the samples will be sent ASAP.

2 After confirming the payment ,the samples will be sent by DHL,UPS,FEDEX and so on .

3 We can help your agent which in china to deal with the exporting process.

4 The goods also can be exproting by your trading company .

5 You can contact our sale department for more details
