CCA wire making machines
- 100 Set / Sets per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
- Fully automatic double-end single-head inserting machine
- Automatic single-head insert shell single-head dipping machine
- Fully automatic double end terminal inserting machine
- Center wire drawing machine with continuous annealing equipment
- Center wire drawing machine with continuous annealing equipment
- Copper wire drawing machine
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | Jiacheng | Model Number: | 3000A/5000A/8000A copper coating machine |
Usage: | Coating |
Product Description
Specifications
CCA wire making machine1,Double floor tank,save space
2,tractor made of SS
3, inverter control,torque motor winding

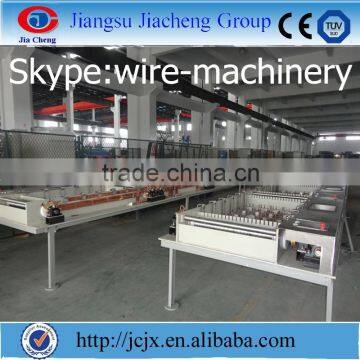

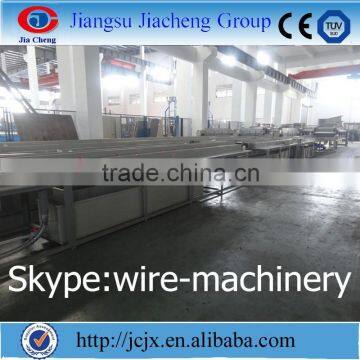

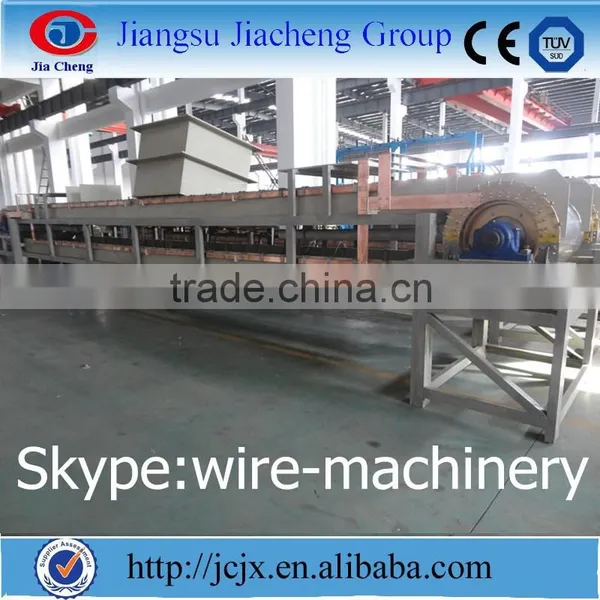

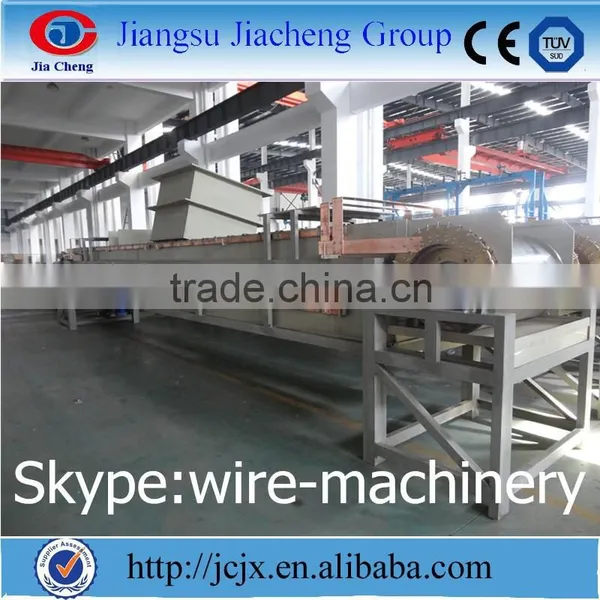

CCA wire making machine is used to make copper electroplating aluminium(CCA) wires in various sizes.
Main feature of copper coating machine
1.Double floor water tank, save space.
2.Six rollers, the whole rack made of stainless steel.
3.Main motor by frequency control.
4.Take-up part controlled by torque motor, stable tension.
Technical parameter of copper coating machine
Machine model | JCJX-3000A | JCJX-5000A | JCJX-8000A |
Control system | Button type | ||
Main power control | Controlled by electric motor | ||
Take-up power control | Controlled by torque motor | ||
Wire diameter | 1.0-1.4mm | 1.20-1.80mm | 1.2-2.2mm |
Main motor | 2.2KW | 3.3/ 4KW | 4KW/ 5.5KW |
Take-up motor | YLJ112-12 | YLJ112-12/ | YLJ132-16 |
Spool reel size | 300mm/ 400mm or according to customers requirement | ||
Take-up type | Shaftless take-up M/C | ||
Traversing type | Plam shaft type | ||
Transmission type | Tri-angle belt, chain | ||
Line speed | 10m/min 120m/min | ||
Rectifier | 3000A | 5000A | 8000A |
Dimension(mm) | 15000*1200*1400 | 18000*1600*1600 | 20000*1800*1600 |
Weight | 3500KG | 5000KG | 6000KG |
Wordwild markets of copper coating machine: India,Iran,Pakistan,Vietnam,Malaysia,Kenya,Syria,Russia,Brazil,Egypt,Bangladesh Burma and so on.
About us:
Jiangsu jiacheng machinery CO.LTD was founded in 1990,owing a technical team formed by many experts and engineers,our company is concentrated on making the best products in china and many other countries. we are professional manufacturer in making all kinds of high speed wire drawing machine,rigid frame standing machine,annealing and tinning machine,bunching machine,extruder and so on.
Sincerely welcome you visit our factory !
