Electroforming Machine

Electroforming Machine photo-1
US$ 3 - 3 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
JCJX
Model Number:
3000A/5000A/8000A
Payment & Shipping
Payment Methods:
Port of Shipment:
ShangHai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Jiangsu, China
Brand Name JCJX
Model Number 3000A/5000A/8000A
Usage Coating

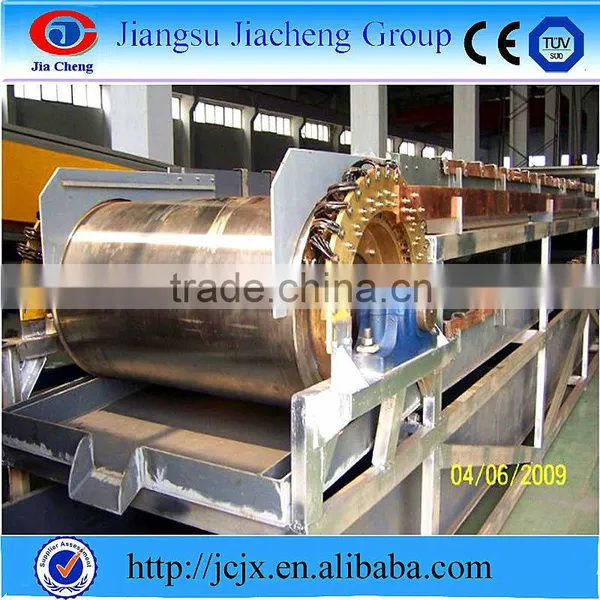

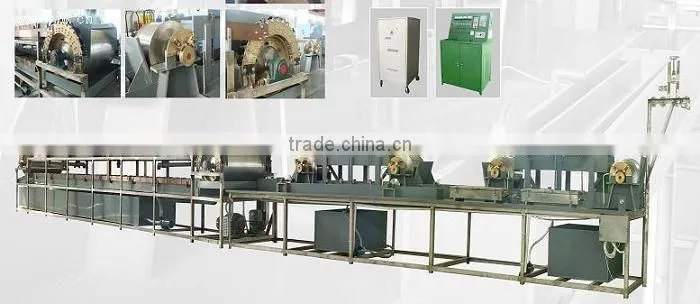

JCJX-3000A/5000A/8000A copper coating machine (production line machine)









Main usage:the Copper wire can  be  coated a layer of steel outside









Main feature:

1.Double floor water tank, save space.

2.Six rollers, the whole rack made of stainless steel.

3.Main motor by frequency control.

4.Take-up part controlled by torque motor, stable tension.



 electroforming machine



Technical parameter:



Machine model

JCJX-3000A

JCJX-5000A

JCJX-8000A

Control system

Button type

Main power control

Controlled by electric motor

Take-up power control

Controlled by torque motor

Wire diameter

1.01.4mm

1.201.80mm

1.22.2mm

Main motor

2.2KW

3.3/ 4KW

4KW/ 5.5KW

Take-up motor

YLJ112-12

YLJ112-12/

YLJ132-16

Spool reel size

300mm/ 400mm  or according to customers requirement

Take-up type

Shaftless take-up M/C

Traversing type

Plam shaft type

Transmission type

Tri-angle belt, chain

Line speed

10m/min 120m/min

Rectifier

3000A

5000A

8000A

Dimension(mm)

15000*1200*1400

18000*1600*1600

20000*1800*1600

Weight

3500KG

5000KG

6000KG





Pre-sale training:

in order to guarantee the customers are able fully to operate the machine,if the customer need,

we can help customer training,includes:

rrect operationg mode;

rrect maintenance way;

3.remove simple problem;

our company for our machine product,since the shipment date,our company free after-sale

maintenance service guarantee period is:

1.1 year for mechanical part;

2.6 months for electrical part;





we have our own factory and we can custom the machine according to you requirements ,we also

can control :

1.the price;

2.the quality;

3.the delivery time;





Jiacheng has some world famous parts suppliers,machines have high price prefprmance ratio;
Body and other key components are produced by our own factory,quality is reliable;
 Jiacheng has more than 20 years of experiences in wire and cable machine;
Driving to Shanghai,we only need one and a half hours;
