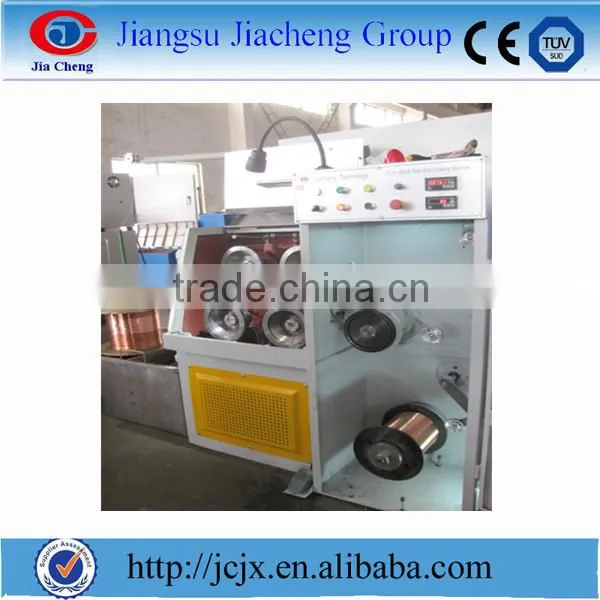

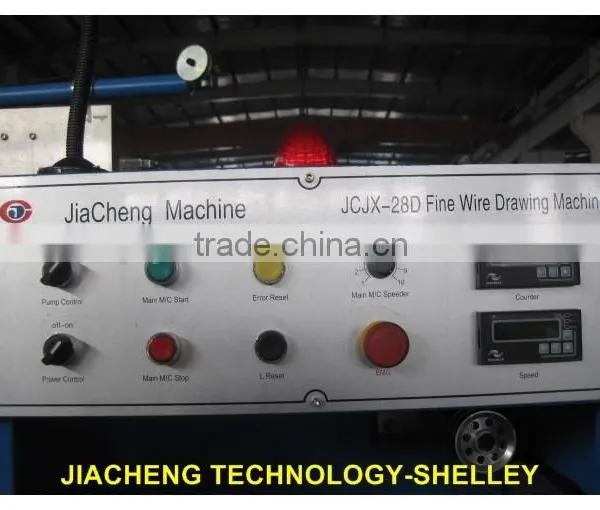

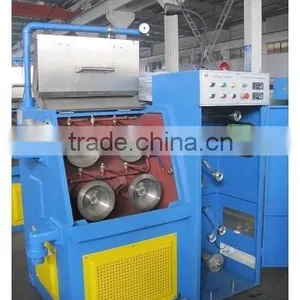

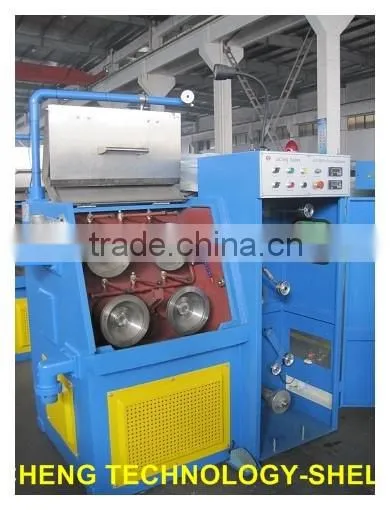

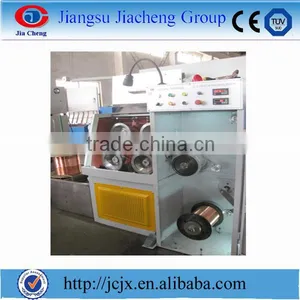

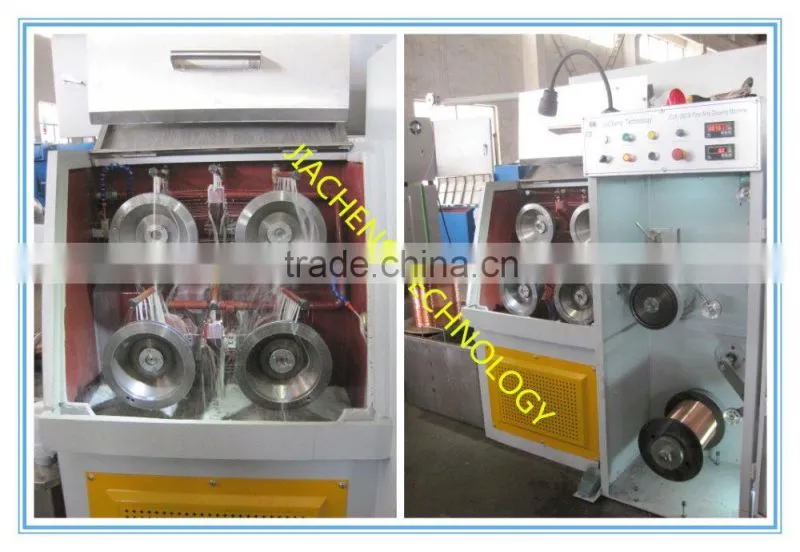

JCJX-28D Copper Wire Drawing Machine
1-Simple description:
1). Popular product in Middle East area
2). Inlet wire: Φ1.38mm, outlet wire: Φ0.152-Φ0.173mm
3). Raw material: copper wire
2-Usage:
The machine is used for drawing copper wire from 1.38mm to 0.152-0.173mm.
The outlet wire is wounded by the steel bobbin 300mm.
3-Main spec

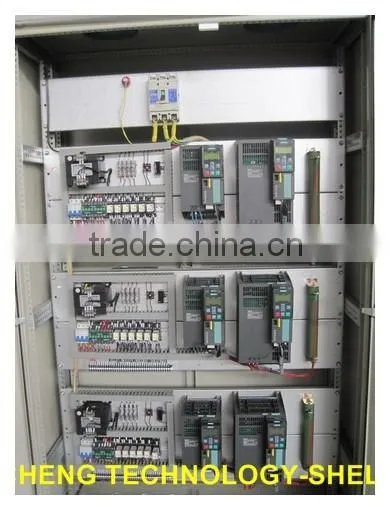

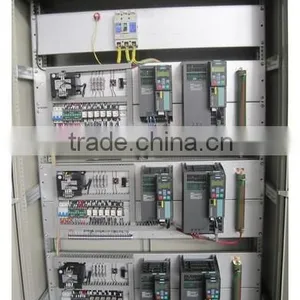

Inverter Control |
Double inverter control |
Max. Die No. |
28 |
Max. Inlet Dia.(mm) |
Φ1.38mm |
Outlet Dia.(mm) |
Φ0.152—Φ0.173 mm |
Max.Line Speed(m/min) |
2000-2500m/min |
Slip ratio of m/c(%) |
13% |
Fix speed capstan of m/c(%) |
10% |

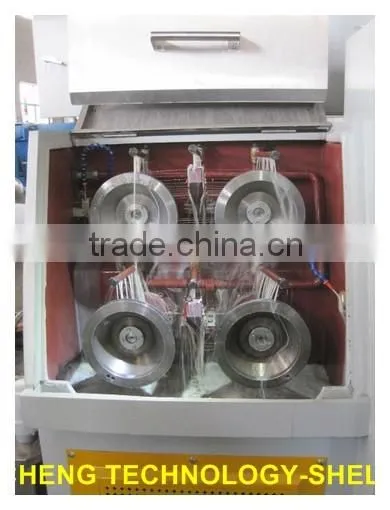

Drawing capstan |
Ceramic plasma capstan |
Main motor power(kw) |
15 KW |

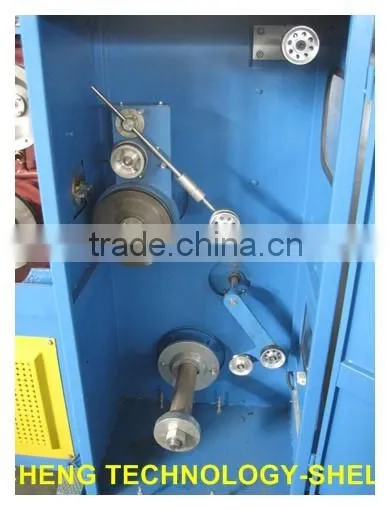

Take-up motor(kw) |
4KW |
Fix speed capstan Dia.(mm) |
Φ206mm |
Take-up bobbin size |
Φ300mm or according to the customer |
4-Advantage:
1) Max. Inlet wire size 1.38mm is designed for Middle East area.
2) 28 dies ensure can reach the size 0.152mm by one step.
3) Save space, easily operation.
5-1. Pre-sale training:
In order to guarantee the customers are able fully to operate the machine, if the customer need, we can help customer training, includes:
(1) Correct operating mode
(2) Correct maintenance way
(3) Remove simple problem
5-2. Guarantees
2. Guarantees
Since the shipment date, 12 months(exclude spare parts)

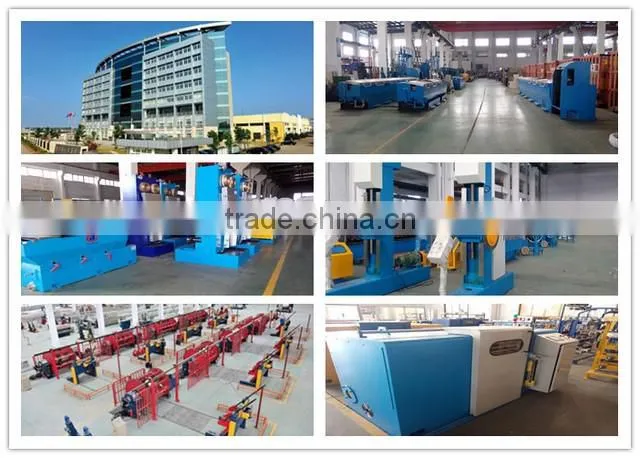

1-Public stock company, stock No: 830957
2-ISO9001:2008 and CE certificated company
3-With more than 24 years experiences in wire and cable machinery
4-Complete producing line can meet different wire and cable field project
5-Great sales team will offer the quick and professional service.
1-How could find the most suitable machine?
Tell us your request in details: inlet wire and out wire diameter range, production capacity.
2-How could find the reliable supplier?
1) Check the background information which is assured and certificated.
2) Visit the factory, have a face to face meeting.
3- Why there are big differences price between different suppliers?
After visiting factory, compare the price based on same quality and service.
If need more details, please call or send mail to me !!!
