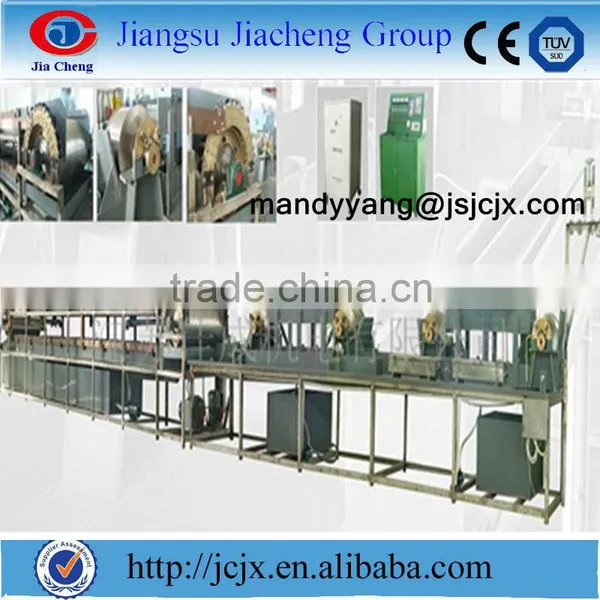

JCJX-3000A/5000A/8000A copper coating machine (production line machine)
Main usage:the Copper wire can be coated a layer of steel outside
Main feature:
1.Double floor water tank, save space.
2.Six rollers, the whole rack made of stainless steel.
3.Main motor by frequency control.
4.Take-up part controlled by torque motor, stable tension.
Technical parameter:
Machine model |
JCJX-3000A |
JCJX-5000A |
JCJX-8000A |
Control system |
Button type |
||
Main power control |
Controlled by electric motor |
||
Take-up power control |
Controlled by torque motor |
||
Wire diameter |
1.01.4mm |
1.201.80mm |
1.22.2mm |
Main motor |
2.2KW |
3.3/ 4KW |
4KW/ 5.5KW |
Take-up motor |
YLJ112-12 |
YLJ112-12/ |
YLJ132-16 |
Spool reel size |
300mm/ 400mm or according to customers requirement |
||
Take-up type |
Shaftless take-up M/C |
||
Traversing type |
Plam shaft type |
||
Transmission type |
Tri-angle belt, chain |
||
Line speed |
10m/min 120m/min |
||
Rectifier |
3000A |
5000A |
8000A |
Dimension(mm) |
15000*1200*1400 |
18000*1600*1600 |
20000*1800*1600 |
Weight |
3500KG |
5000KG |
6000KG |
our shanghai exhibition:
Our advantage:
Enterprise honour:
Workshop:
After-sell service:
Pre-sale training:
In order to guarantee the customers are able fully to operate the machine, if the customer need, we can help customer training, includes:
(1) Correct operating mode
(2) Correct maintenance way
(3) Remove simple problem
our company for our machine product, Since the shipment date, our company free after sale maintenance service guarantee period is one year.
Welcome to visit our Jiangsu Jiacheng Group
Driving to Shanghai,we only need one and a half hours
