Specifications
Laser Cut CNC Wood1.Cutting speed:20m/min
2.Motion system:Servo motor
3.Compatible CorelDraw, AutoCAD
4.CO2 laser cutting
Laser Cut CNC Wood/CNC Laser Cutting Machine for Wood
---When Email me for Price List,Videos,Picutre,Package,Delivery Time and Specifications,Please kindly let me know:
(1) What kind of laser machine you are interested in ? Laser Cutting or Laser Engraving or Laser Marking Machine?
(2) Which Material will be processed?
(3) What is the size and thickness of the material?
(4)What is your business scope? Are you distributor or end-user?

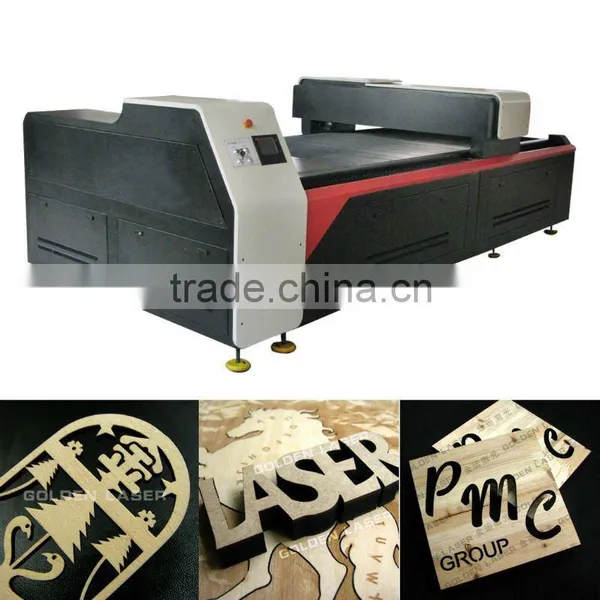

CJG-130250DT CO2 Laser Cutting Machine
——Working size and laser power can be customized as your requirement.
Specification:
(1) Working area: 1300mmX2500mm (4ftX8ft)
(2) Working table: Strip panel working table / Zinc-iron honeycomb working table
(3) Laser type:
CO2 glass laser tube 80W, 100W, 130W
CO2 RF metal laser tube: 100W, 150W, 200W, 300W, 400W
(4) Cutting (no-load) speed: 20m/min (depending on materials, pattern, thickness)
(5) Repeating location accuracy: ±0.1mm
(6) Cooling mode: Constant temperature water cooling chiller
(7) Controlling system: 5 inches LCD display digital system
(8) Motion system: Servo motor motion system, high precision ball screw
(9) Focus lens: All lens and mirror are all from American company II-VI
(10) Air blow: normal air blow with air pressure can be adjust from the cutting head
(11) Top Exhaust: attached to the lens mount
(12) Bottom Exhaust: following exhaust system (The bottom exhaust is fixed under the laser head and move together with the laser head)
(13) Electricity Requirement: AC220V or 380V, 50HZ
(14) Format support: AI, BMP, PLT, DXF, DST, etc.
(15) Standard collocation: Following top & bottom exhaust system, medium pressing exhaust device, 550W exhaust fans, mini air compressor
Can be perfectly cut with CO2 lasers:
- Laser cutting with high precision
- Neither tool wear nor tool change necessary in comparison to routing, drilling or sawing
- Contactless processing, therefore no stressing or damaging of the material – no clamping necessary
- Uneven materials can be easily processed without quality loss due to tactile focus tracking
- Laser cutting and laser engraving of different material thicknesses and combinations in one process step.
- High repeatability and consistent quality
Application Field:
Applicable Materials: Wood, Plywood, Bamboo, MDF, HDF, Fibreboard, Balsa, Veneer Inlays, Acrylic, Acryl, PMMA, Perspex, Plexiglas, Plexiglass, Organic Glass, ABS, Double Color Board, Foam, Rubber Sheet, Plastic, Industrial Plastics (PP, PE, PET, PVC, ABS, PA, PS, PC, etc.), Paper, Corrugated Paper, Cardboard, Pressboard, Paperboard, Chipboard, Thin Sheet Metal, etc.
Applicable Industries: Advertising Industry, Advertising Signs, Advertising Letters, Metal Letters, Nameplates, LED light guide panels (LGP), Plastic Industry, Printing & Packing Industry, Gifts & Crafts, Promotional Items, Plaques, Trophies, Awards, Bangles, Badges, Tags, Decorations, Souvenirs, Precise Ornaments, Models, Architectural Models, Furniture Marquetry, Parquet Floors, etc.
GoldenLaser’s Software Presentation:
a. Our software is compatible with BMP, AI, PLT, DST, DXF formats;
b. Seamless connection process for different designs from CorelDraw, AutoCAD.
c. Offline control and large memory for data storing, realize the offline control and batch of
production work;
d. One computer control multi-machines for decreasing the invest costing and labor force;
e. 5 inches LCD display screen for easy and convenient operations.
Laser Cutting Samples Gallery:
