Specifications
Wood/metal/acrylic CO2 laser cutting system1.CO2 RF metal laser
2.cutting metal and nonmetal
3.ball screw
4.servo motor

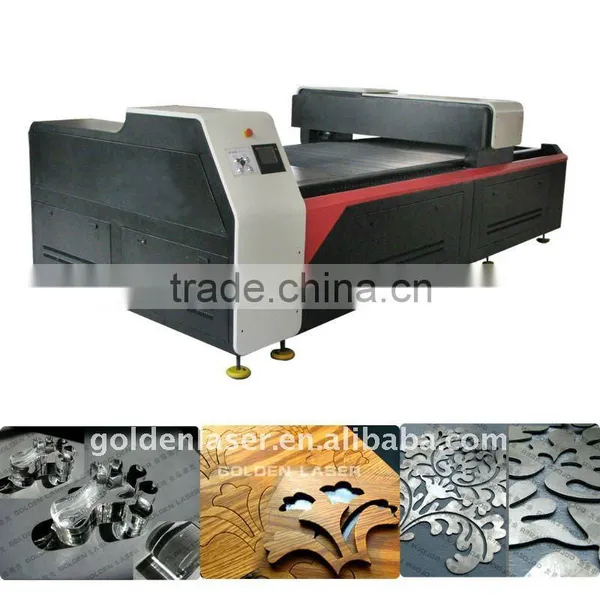

Wood/metal/acrylic CO2 laser cutting system
Advantages of GOLDEN LASER Solution for metal and solid materials:
1. Cost efficiency by the application of low maintenance technologies and maintenance-free lasers
2. Engrave and cut a wide variety of materials
3. One machine cutting both metal and non-metal
4. Faster speed and higher precision
5. Global pioneer for double core laser processing system
6. Particular ultrasonic auto-focus system
7. High efficiency engraving and cutting separated system
8. High efficiency galvanometer engraving and cutting integrated technology
9. International leading laser motion control system
10. Auto-nesting
11. Fast pattern digitizing
12. Complete exhaust and filtering of cutting emissions possible
13. Ergonomic loading and unloading system without time-consuming
Application
Applicable Materials: Perfectly cutting metal and non-metal plates, such as stainless steel, mild steel, carbon steel, acrylic, wood, MDF, plywood, veneer, plastic, rubber, sponge, paper, cardboard, etc.
Applicable Industries: sheet metal processing factories, advertising & sign firms, crafts, decoration, modelling, furniture manufacturing and those which are in need of cutting both metal and non-metal materials.
Features
1) Large format working area with steel girder structure.
2) Precision ball screw driving system and servo motor system ensure high cutting precision.
3) Coherent / Synrad CO2 RF metal laser tube produces high quality laser beam, stable power and long working life. Low use-cost, maintenance-free and high efficiency.
4) Strip panel working table reduces contacting area with work pieces, which ensures high quality cutting.
5) Following exhaust system has good performance, saving energy consumption.
6) Smart nesting function enhances utilization rate of processing material.
7) 5 inches CNC system provides online and offline for your choice, easy to use.
8) Wide application. Suitable for cutting metal and non-metal.
|
Main Technical Parameter | |
Laser Type: |
Coherent / Synrad CO2 RF metal laser tube |
Laser Power: |
100W / 150W / 200W / 300W / 400W |
Working Area: |
1300mm×2500mm / 1300mm×1600mm / 1300mm×900mm |
Working Table: |
Strip panel working table |
Working Speed: |
Adjustable |
Repeating Positioning Accuracy: |
±0.1mm |
Cooling System: |
Constant temperature water chiller |
Motion System: |
Servo motor, LCD display, Ball screw driving system |
Power supply: |
AC110V-220V 50/60Hz |
Standard collocation: |
Mini air compressor, Automatic control high pressure blow valve |
|
Working size and laser power can be customized according to requirement. | |
