Specifications
1.laser cutting balsa2.fast,clean cutting
3.laser power 50W 65W 80W 100W
4.cutting speed 0-24000mm/min
st-efficient

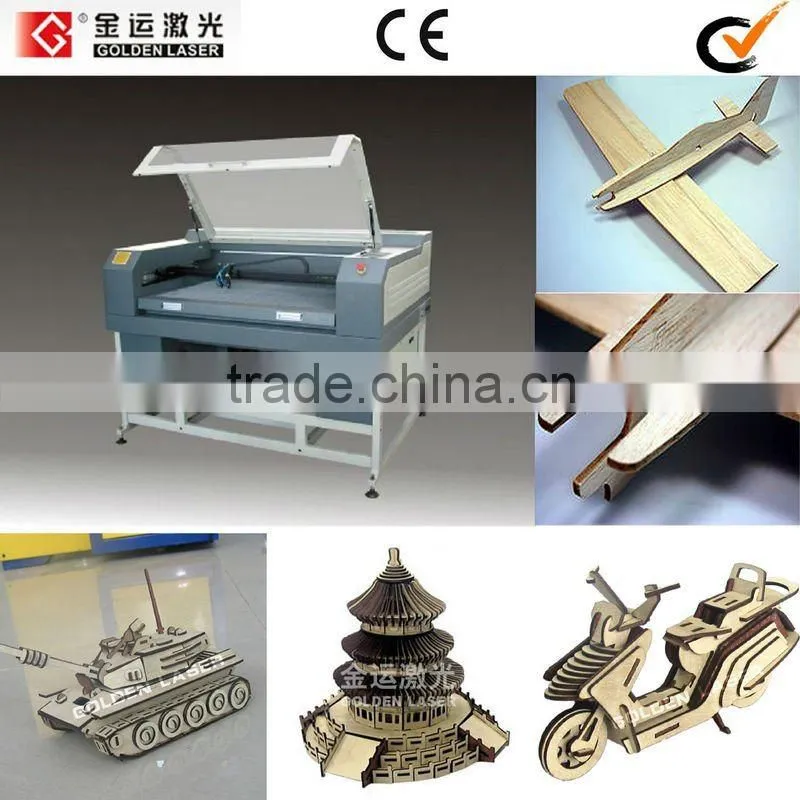

Small Wood Balsa Laser Cutter
Laser cutting, Laser engraving and Laser marking of wood, balsa, plywood, etc
Benefits of laser processing - fast and clean cutting wood with the laser
- No chips, therefore no cleaning of the machine surrounding necessary
- Laser cutting of extremely fine contours and practically radius-free inner contours
- Contactless processing, therefore no stressing or damaging of the material – no clamping necessary
- Uneven materials can be easily processed without quality loss due to tactile focus tracking
- Laser cutting and laser engraving of different material thicknesses and combinations in one process step.
Wood drill, CNC milling machine and saw were yesterday. The wood processing can take place on all GoldenLaser systems. The model JG-10060/JGSH-10060 is perfectly suited especially for smaller application sizes.
JG-10060/JGSH-10060 Laser Cutting Machine
| |
Product Features: | |
| |
Applicable Material: | Suitable for cutting/engraving a variety of non-metal material, such as wood, balsa, plywood, ABS plastic, acrylic, plexiglas, plexiglass, PMMA, paper, paper board, cardboard, rubber sheet, leather, marble, tile, etc. |
Applicable Industry: | advertising, decoration, crafts & gifts. model making, scale/miniature model-making, model airplane kit, architecture models, miniatures, etc. |
Technical Parameter: | |
Laser type | CO2 glass laser tube |
Laser power | 50W/65W/80W/100W |
Cutting area | 1000mmX600mm |
Cutting table | Zinc-Fe honeycomb working table |
No-load max speed | 0-24000mm/min |
Repeating location accuracy | ±0.1mm |
Motion system | Offline stepping motor system |
Cooling system | Water-cooling and protection system |
Power supply | AC220V ± 5%/50Hz |
Format support | AI, BMP, PLT, DXF, DST, etc. |
Standard collocation | Mini air compressor, 550W up & down exhaust fan |
Optional collocation | Double core system (JGSH-10060), Constant temperature water-chiller, Automatic control high pressure blower valves, Strip panel working table, Automatic up & down working table (JG-10060SG), Rotary attachment (JG-10060SG) Servo system. |
Working area and laser power can be customized as your requirement. | |
Related Laser Cutting Machine Models:
(1) JG-13070DT/JGSH-13070DT
Working area: 1300mmX700mm, Laser power: 50W/65W/80W/100W
(2) JGSH-12560SG
Working area: 1250mmX600mm, Laser power: 65W/80W/100W(Cutting);50W(Engraving)
(3) JG-13090DT
Working area:: 1300mmX900mm. Laser power: Co2 glass tube: 80W/100W/130W; CO2 RF tube 100W/150W
(4) CJG-130250DT
Working area: 1300mmX2500mm. Laser power: Co2 glass tube 100W/130W; CO2 RF tube: 100W/150W

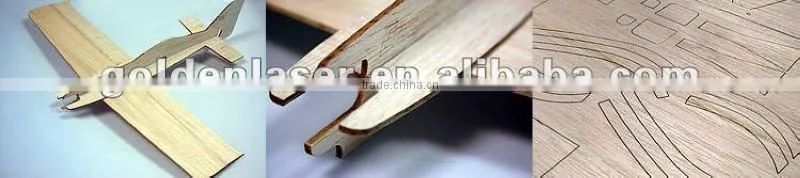

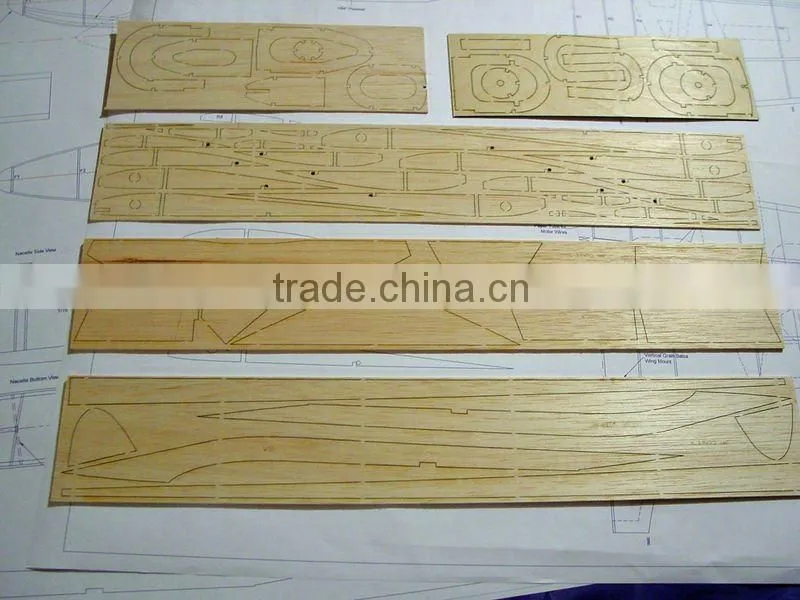

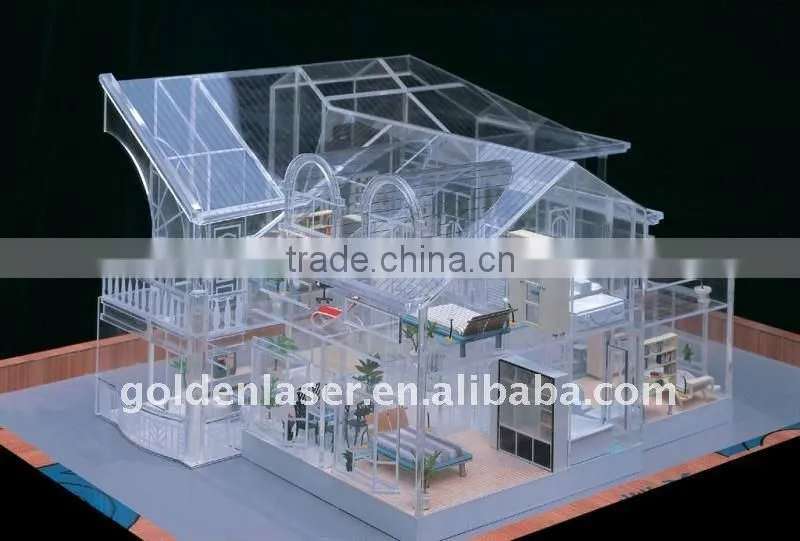

Samples of Laser Cutting Balsa,Wood,Acrylic,etc.:
