Laser Cutting Wood Veneer for Inlays/Crafts

Wooden Case Package

Specifications

Laser Cutting Wood Veneer

1.Finest details by laser
2.Servo motor, Ball Screw
3.Cut crafts,inlays,marquetry,parquet
4.CE,FDA

Laser cutting, laser engraving and laser marking machine for veneer:

1.Finest details by laser technology

2.Clean and perfect cuts

3.No chips, therefore no cleaning of the machine surrounding necessary

4.Laser cutting of extremely fine contours and practically radius-free inner contours

5.Contactless processing, so the material is not stressed or damaged – no clamping necessary

6.High repeating accuracy at best quality

7.No tool wear due to contactless laser processing

8.Suitable for cutting wood veneer crafts, veneer inlays, furniture marquetry, parquet floor, model, etc.

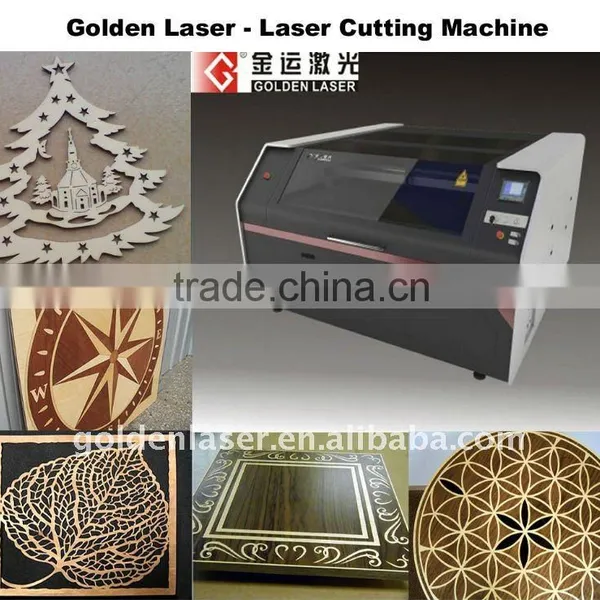

High Precision CO2 Laser Cutting Machine with Ball Screw

Machine Features

1) Large format working area with steel girder structure.

2) Precision ball screw driving system and servo motor system ensure high cutting precision.

3) Coherent / Synrad CO2 RF metal laser tube produces high quality laser beam, stable power and long working life. Low use-cost, maintenance-free and high efficiency.

4) Strip panel working table reduces contacting area with work pieces, which ensures high quality cutting.

5) Following exhaust system has good air suction performance, saving energy consumption.

6) Smart nesting function enhances utilization rate of processing material.

7) 5 inches LCD CNC system provides online and offline for your choice, easy to use.

8) Wide application. Suitable for cutting metal and non-metal. It is a multi-purpose machine that can cut up to 30mm thick non-metal materials like acrylic and wood and also can cut up to 3mm thick metal sheets.

Main Technical Parameter

Laser Type:    Coherent / Synrad CO2 RF metal laser tube

Laser Power:  100W / 150W / 200W / 300W / 400W / 600W

Working Area:        1300mm×2500mm / 1300mm×1600mm / 1300mm×900mm

Working Table:       Strip panel working table

Working Speed:     Adjustable

Repeating Positioning Accuracy:  ±0.1mm

Cooling System:    Constant temperature water chiller

Motion System:     Servo motor, LCD display, Ball screw driving system

Power supply:        AC110V-220V  50/60Hz

Standard collocation:     Mini air compressor, Automatic control high pressure blow valve

(We also provide with Chinese CO2 laser tube 65W / 80W / 100W / 130W, etc.)

Working size and laser power can be customized according to requirement.

Advantages of GOLDEN LASER Solution for metal and solid materials:

Cost efficiency by the application of low maintenance technologies and maintenance-free lasers

Engrave and cut a wide variety of materials

One machine cutting both metal and non-metal

Faster speed and higher precision

Global pioneer for dual core laser processing system

Particular ultrasonic auto-focus system

High efficiency engraving and cutting in one machine (two independent systems)

High efficiency galvanometer engraving and cutting integrated technology

International leading laser motion control system

Auto-nesting

Fast pattern digitizing

Complete exhaust and filtering of cutting emissions possible

Ergonomic loading and unloading system without time-consuming

Application

Applicable Materials: Perfectly cutting metal and non-metal materials, such as stainless steel, mild steel, carbon steel, acrylic, wood, MDF, plywood, veneer, plastic, Plexiglas, plexiglass, Perspex, PMMA, ABS, sponge, paper, cardboard, paperboard, cardstock, etc.

Applicable Industries: sheet metal processing, advertising & signs, LED letters, decorative letters, advertising letters, metal sign letters, crafts, decoration, printing and packaging industry, modelling, furniture & floor manufacturing, Inlays, Parquet, Marquetry and those which are in need of cutting both metal and non-metal materials.

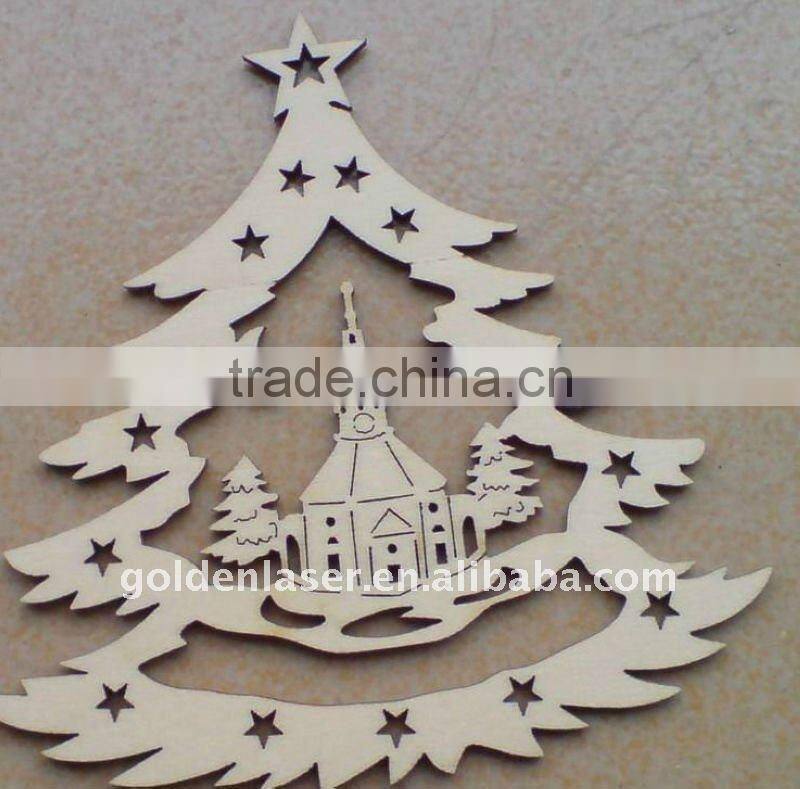

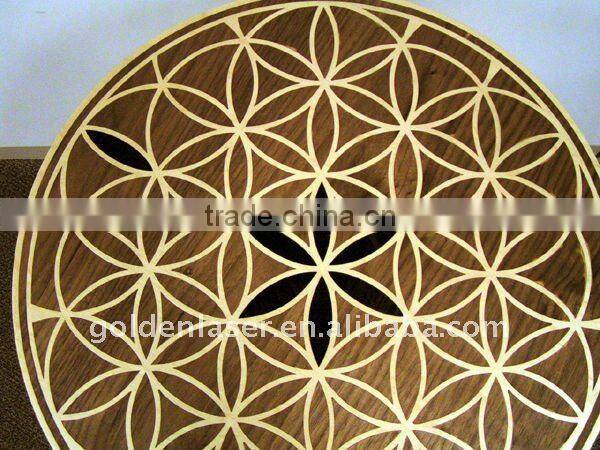

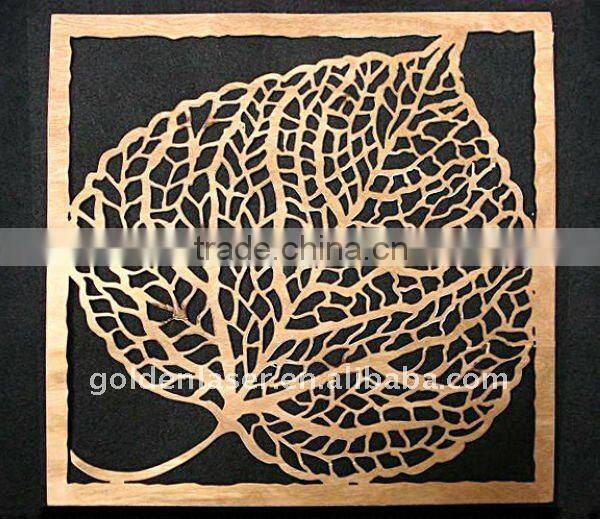

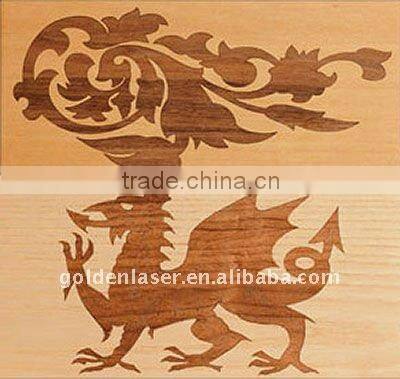

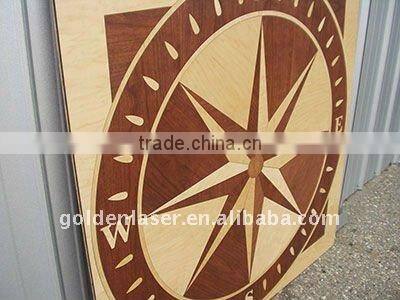

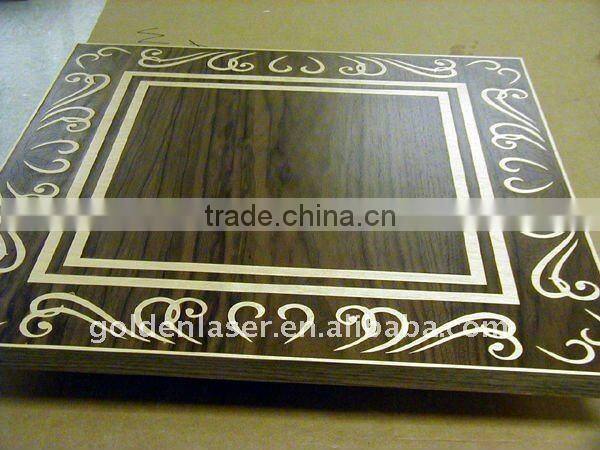

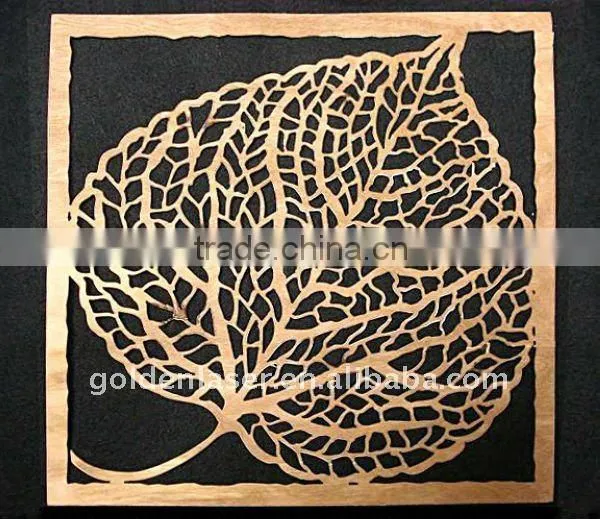

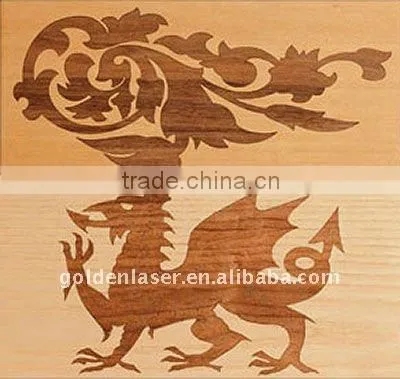

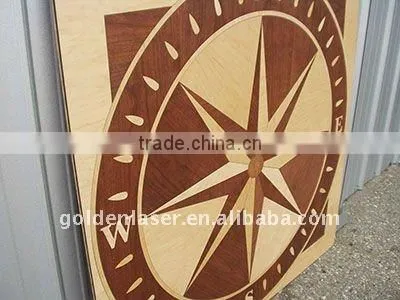

Samples of Laser Cutting Wood Veneer:

Please confirm us below when sending enquiry:

1. What kind of machine do you need? Laser cutting or laser engraving or laser marking?

2. What materials do you need to process? The size and thickness?

3. What is your business scope? Are you an end user or distributor?

We will be very happy to help you in any way we can.
