Specifications

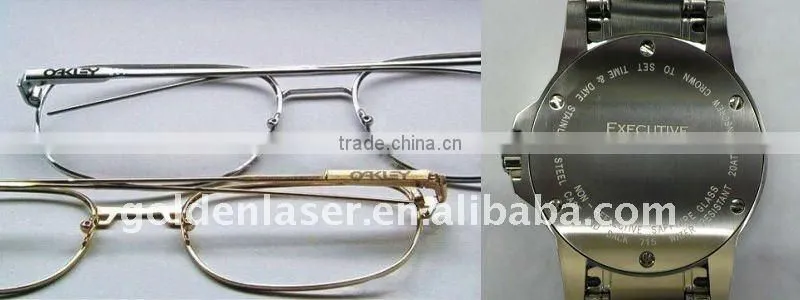

Laser Engraving Machine for Glasses Frame1.high quality permanent mark
2.custom engraving logo,letter,text
3.high soeed
Laser Engraving Machine for Glasses Frame
Laser engraving provides a permanent message on an in-process or finished components.
Our laser engraving machines can engrave text, serial and part numbers, company logos, bar codes, or 2D codes on all plain, painted, powder coated, anodized, or plated metal surfaces, whether they are flat sheets, curved surfaces, or cylinders.
Laser engraving also produces very high quality permanent mark on most plastic and metal materials. A character as small as 0.010 inch and as large as 12 inches can be laser etched with our laser engravers.
Laser marking is the favored marking method when permanency or aesthetics are desired. Laser marking is also favored when the part to be marked is too small or has too complex a shape to be marked with anything but laser marking.
Applications of Laser Marking/Engraving:
Laser Marking and Engraving on Plastic: Plastic, Delrin and Ceramic laser engraving. Logos, Bar Code and serialization engraving.
Electronic Components: From serializing silicon wafers to laser engraving metal and plastic packaging for microelectronic circuits, GOLDEN LASER offers a complete marking solution for the electronics industry.
Medical Instruments: GOLDEN LASER’s medical engraving machines are popular with medical device manufacturers due to the clarity and permanency of the mark.
Industrial Components: For industrial applications, laser engraving is the favored marking method, offering permanency and the ability to etch small parts & complex shapes.
Promotional Items: GOLDEN LASER’ engraving/marking machines allow personalization and custom engraving of a wide spectrum of personalized promotional items at resolutions up to 800dpi. E.g. laser engraving personalized custom design, logo, letter and text on cell phone, iPad, iPod & IPhone, USB flash disk, USB drive, Key chains, etc.

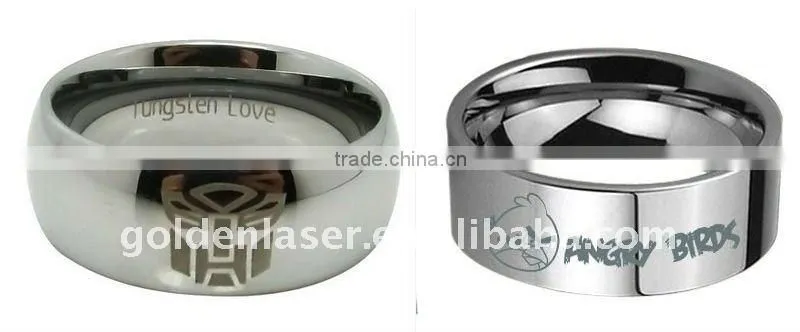

Jewellery Laser Engraving:
Applications: Laser Engraving & Deep Engraving of Jewelery, Rings, Pendant. Laser Engrave on Gold, Platinum, Titanium, Silver & Stainless Steel.
Laser Engraving on the Inside & Outside of Jewellery Rings
Laser Engrave Jewellery Serial Numbers, Logos & Photos
Preview Position with Red Pointer on Jewellery before Engraving

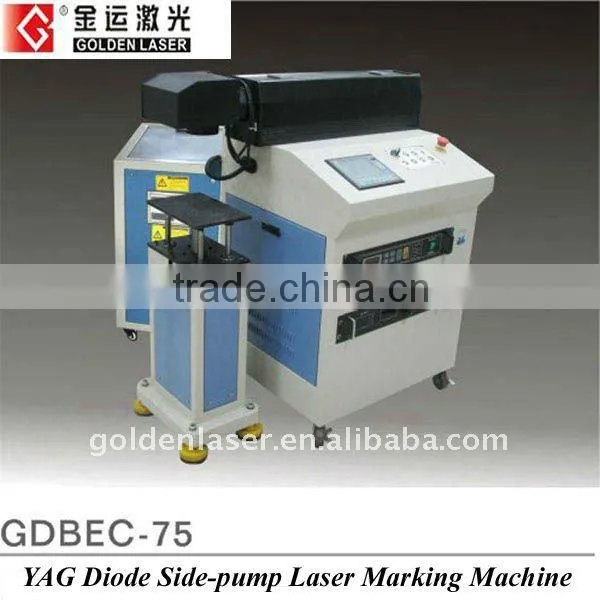

GDBEC-75 Diode Pump Laser Marking Machine
Machine Features
1. High speed Germany Galvo head. High photoelectric conversion efficiency.
2. Fast marking speed, permanent and precise marking result without any distortion.
3. Sealed optical path, low failure rate and maintenance-free.
4. With Diode side-pump YAG laser, it can satisfy diversified marking requirements.
[In appearance, there are integrated model and detached model for choice.]
Technical Parameter
Laser type |
YAG diode side-pump laser |
Laser power |
75W |
Standard marking area |
70mm×70mm |
Optional marking area |
35mm×35mm / 110mm×110mm / 130mm×130mm / 175mm×175mm |
Working table |
Height-adjustable working table |
Marking speed |
0-2000mm/s |
Cooling system |
1.6KW water chiller |
Control system |
Digital offline control |
Galvo positioning precision |
±0.05mm |
Power supply |
AC220V ± 5% / 50/60Hz |
Format support |
AI, BMP, PLT, DXF, DST, etc. |
Optional collocation |
50W / 100W YAG diode side-pump laser, Rotary attachment |
Working size and laser power can be customized as your requirement.

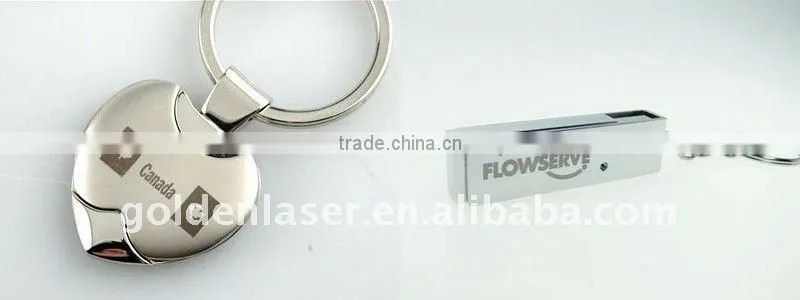

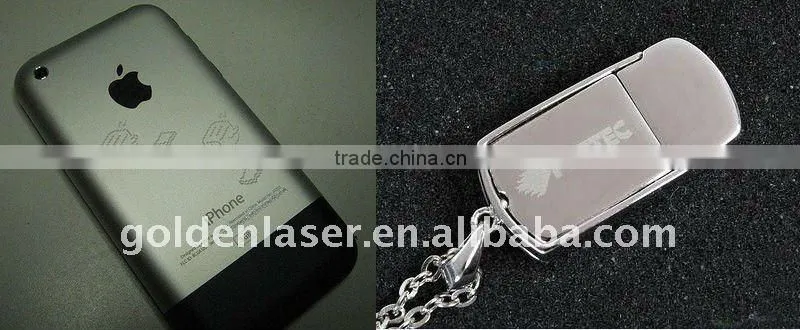

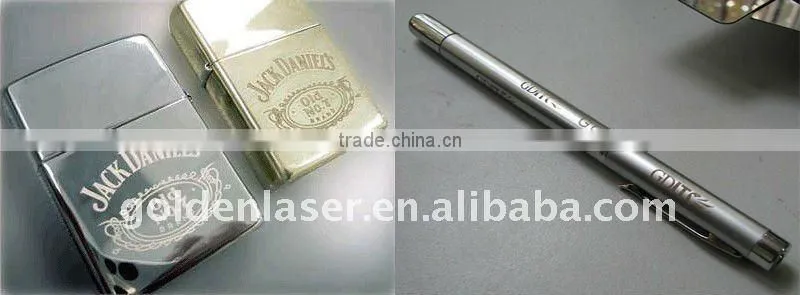

Samples as following:
