Specifications
fiber laser marker for metal1.Germany Scan Lab Galvo head
2.England Q-switch
3.Supreme precision
4.High speed
laser marking machine 10w 20w 30w IPG fiber laser marker for metal
Laser marking provides a permanent message on an in-process or finished components.
Our laser marking machines can engrave text, serial and part numbers, company logos, bar codes, or 2D codes on all plain, painted, powder coated, anodized, or plated metal surfaces, whether they are flat sheets, curved surfaces, or cylinders.
Laser marking also produces very high quality permanent mark on most plastic and metal materials. A character as small as 0.010 inch and as large as 12 inches can be laser etched with our laser markers.
Laser marking is the favored marking method when permanency or aesthetics are desired. Laser marking is also favored when the part to be marked is too small or has too complex a shape to be marked with anything but laser marking.
How our laser marking machine works:
@ Fiber Laser Marking Machine, Demo Video: http://youtu.be/yUaKvcWXbNQ

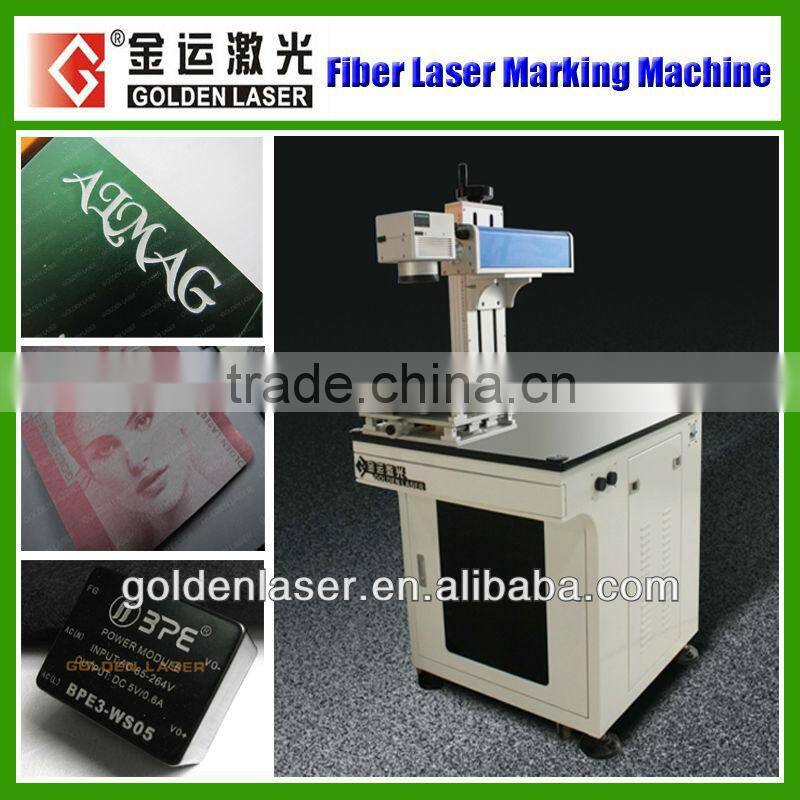

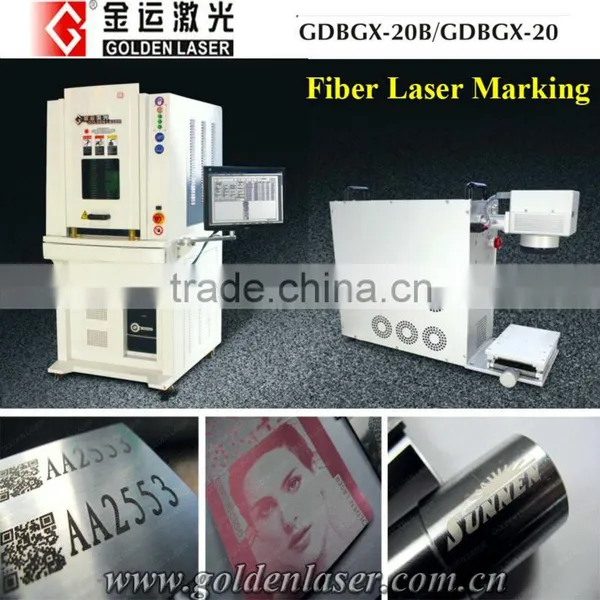

GDBGX-20 Fiber Laser Marking Machine:
The most effective marking technology available on the market today is laser marking. It is a fast marking technology that can even be used on hardest materials such as carbides. Laser marking offers you a marking solution of the highest quality and contrast.
Laser Marking Machine Features:
- High Speed precision FIBER laser marking machine
- Supreme precision engraving for ultra small characters
- Long lasting life time (100,000 hours) of the laser module. (IPG laser source)
- Wide range of frequency band width (2k-1,000khz)
- Germany Scan Lab Galvo head, England Q-switch
- Automatically generates serial numbers and dates
- Multifunctional marking software
- Easy to install and move
- Lowest maintenance cost and energy-consumption
Laser Marking Machine Specifications:
- Imported fiber laser generator and high-speed galvanometer scanning system. Good beam quality, long working life (100,000 hours). Stable performance and maintenance-free.
- With the features of High speed, high precision and high efficiency.
- Precision, fine and permanent marks. Easy to use.
- This model can achieve automatic arrangement and modification of text, logo, symbols ,images, graphics, bar code, two dimensional barcode, serial number automatically increasing, etc.
- With a wide range of application.

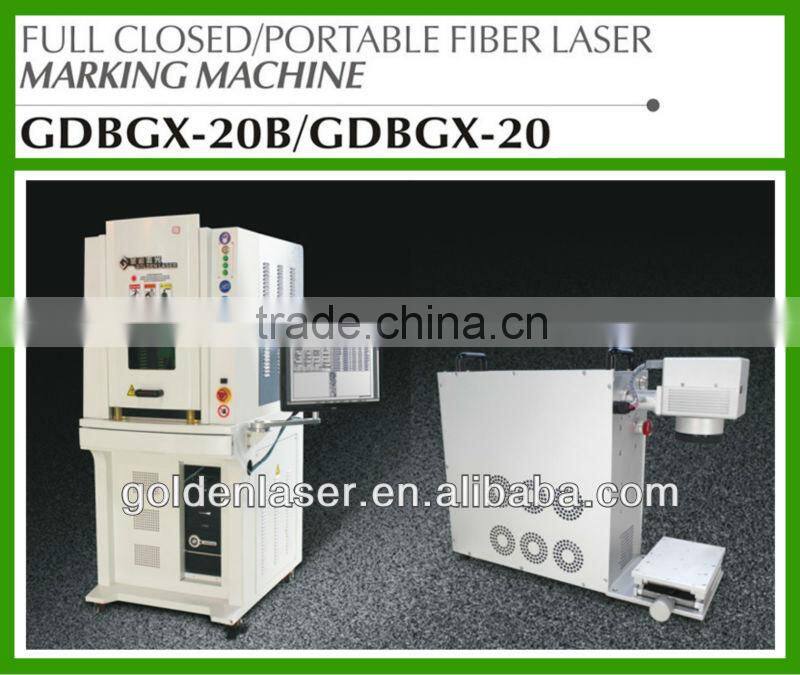

- [In appearance, there are integrated model and detached model for choice.]
Laser Marking Machine Application Field:
This model can permanently mark a wide range of materials such as ordinary metals and alloys (steel, stainless steel, iron, copper, brass, aluminum, magnesium, zinc, etc.), rare metals and alloys (gold, silver, titanium, etc.), metal oxides, plastic, ABS material (electrical appliances shell, daily necessities), ink (translucent keypads, printed products), epoxy resin (electronic components, packaging, insulation layer), electroplating materials, coating materials, spraying materials, serial numbers and barcode marking, electric parts, mobile phone keypad, cell phone covers, surgical instruments, hardware metals, watch covers, rubber, ceramic, etc.
Laser Marking Machine Technical Parameter:
Laser Type |
Fiber laser generator |
Laser wavelength |
1064nm |
Laser Mode |
TEM00 |
Laser Power |
20W |
Standard Marking Area |
70mmX70mm |
Optional Marking Area |
35mmX35mm, 110mmX110mm, 130mmX130mm, 170mmX170mm, 175mmX175mm, 195mmX195mm |
Working Table |
Manual up and down aluminum alloy working table |
Repetition accuracy |
±0.01mm |
Control System |
Digital offline control system |
Cooling System |
Air cooling |
Power Supply |
AC220V ± 5% / 50Hz |
Format support |
AI, BMP, PLT, DXF, DST, etc. |
Option |
10W/30W fiber laser generator, Rotary device |

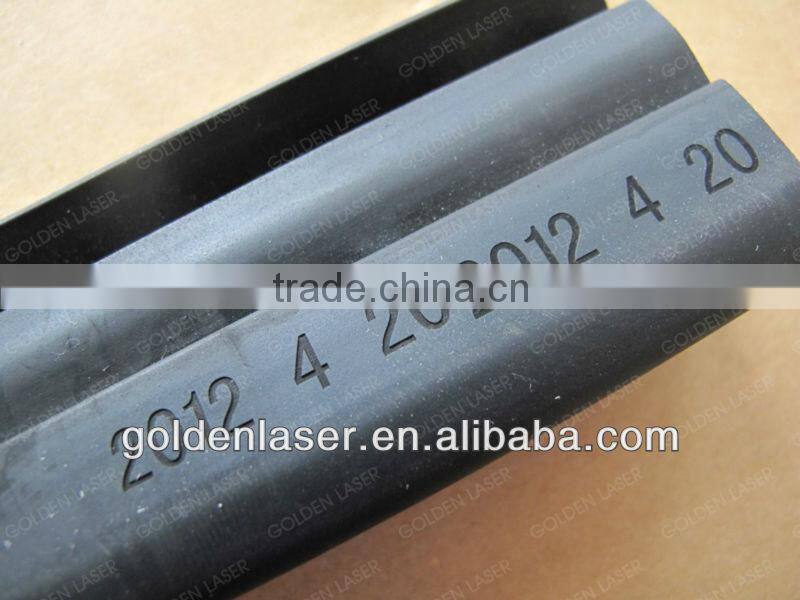

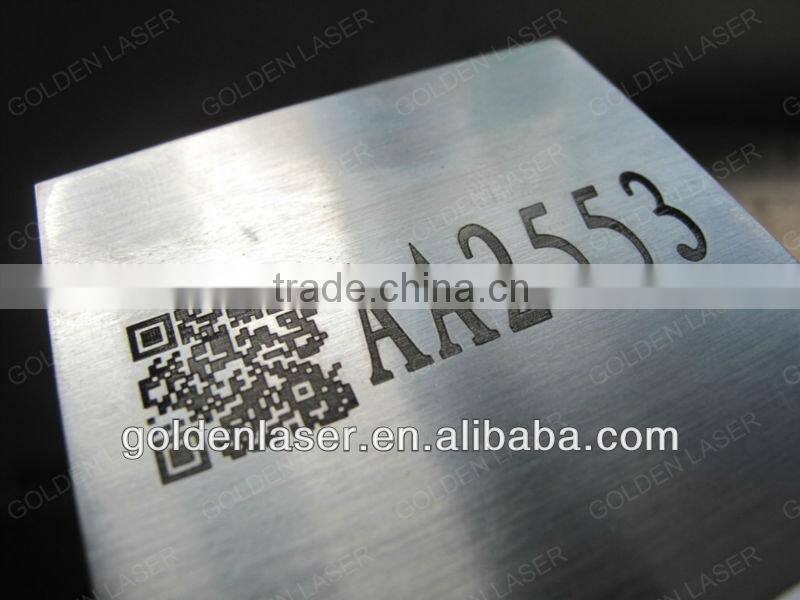

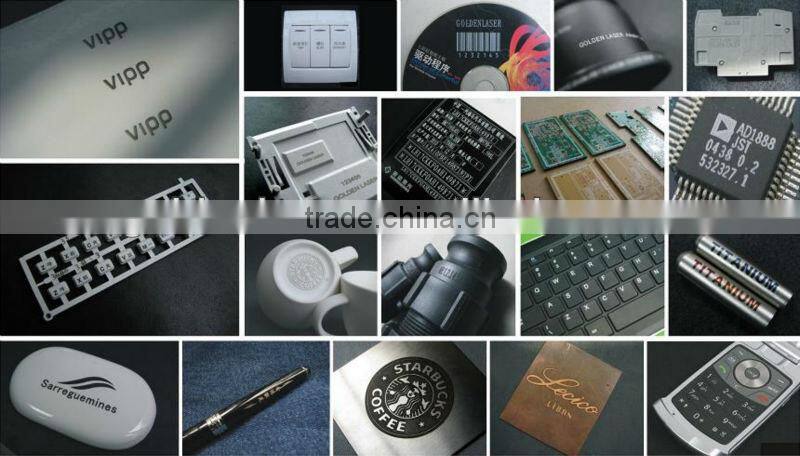

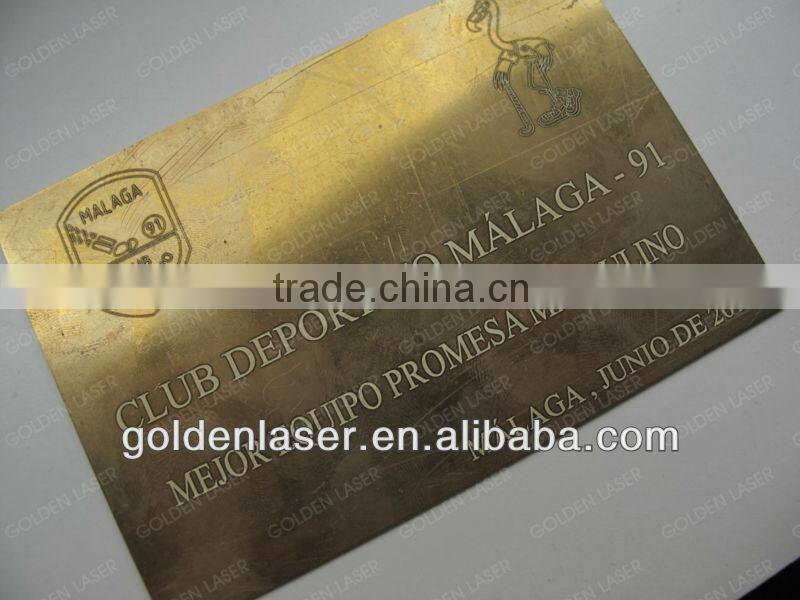

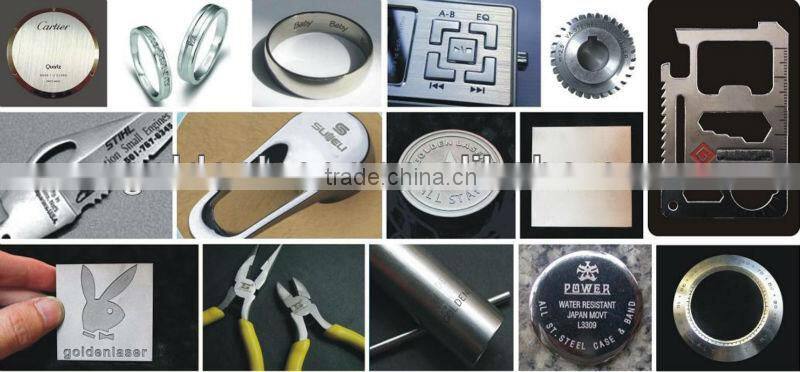

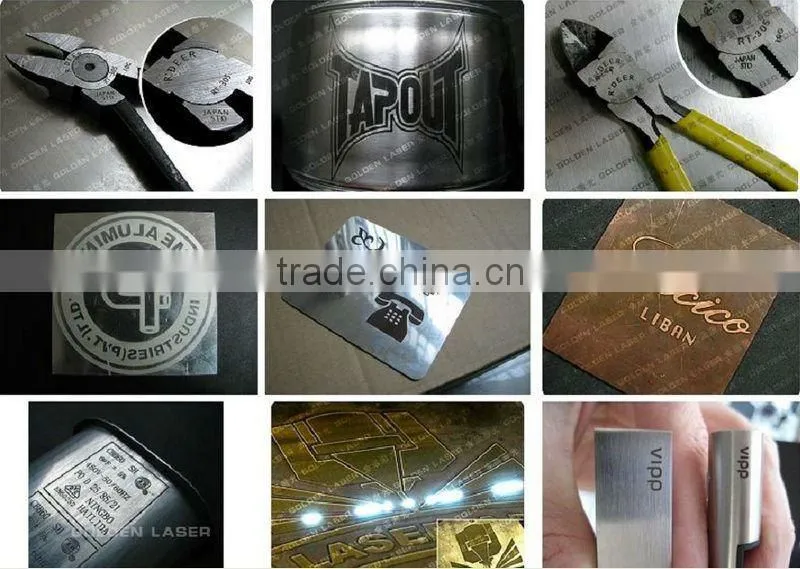

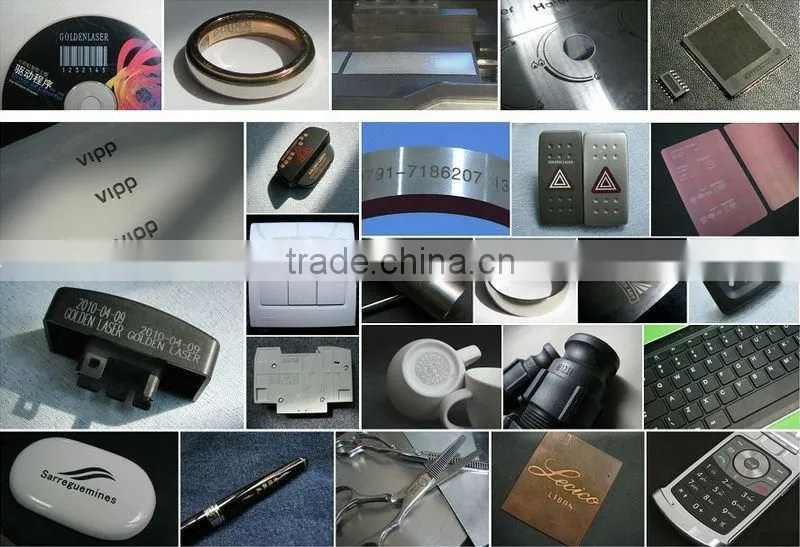

Laser Marking Sample Gallery:
Why choose Golden Laser
- More than 10 years experience in laser industry
- Excellent after-sales service
- Laser-World of Photonics Exhibitors since 2005
- Offers Customized Laser Solutions, Seeking Distributors & Partners Globally
- Attn: Ms. Yoyo Ding
- E-M-A-I-L: yoyo(at)
- Site:
- YouTube Channel: /user/Goldenlaservideo
