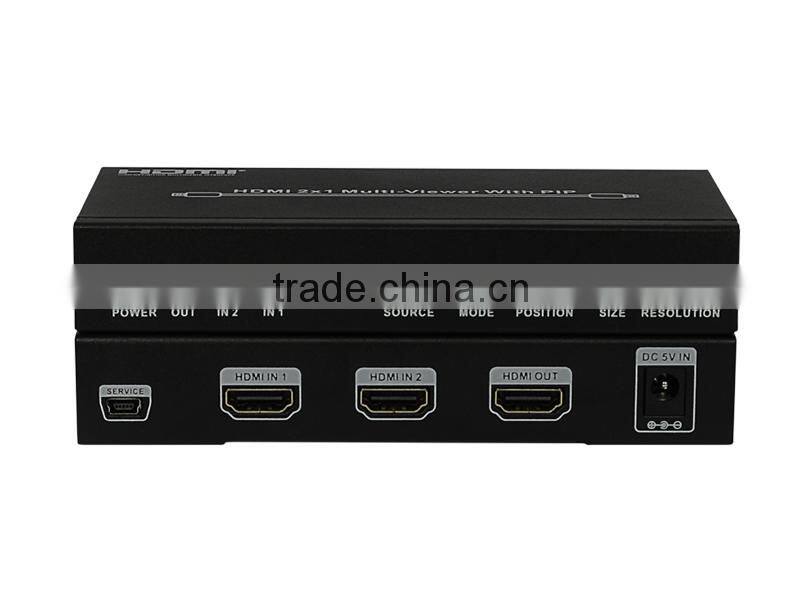

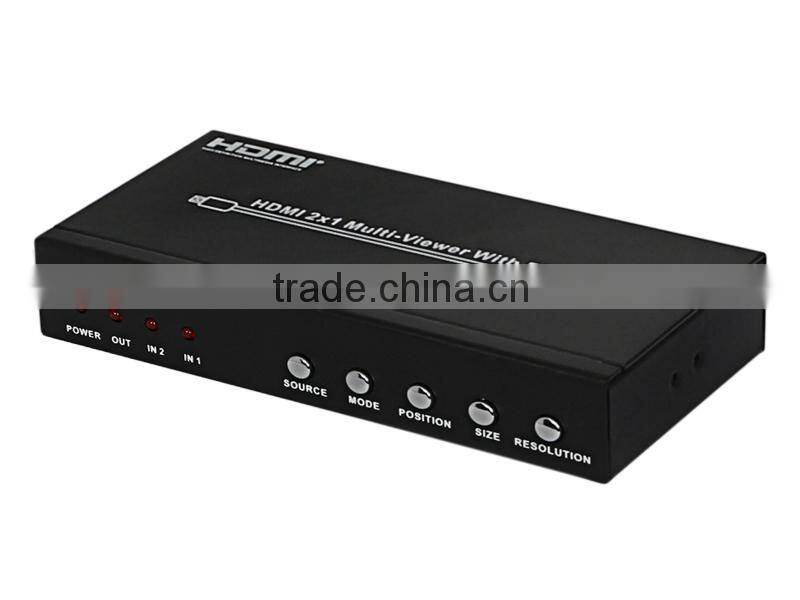

HDMI 2x1 Multi-Viewer With PIP

Introduction

This product is a high performance 2 by 1 Multi-Viewer. It supports two High definition input source display on one screen. As a Multi-Viewer, it can display on one screen in 4 modes.

Features

1.           Compliant with HDMI 1.3a,HDCP 1.2;

2.           Supports multiplexed HDMI 2-input and 1-output and 4 display modes;

3.           Supports up to 1080p High Definition resolution;

4.           Support scaler up, scaler down function;

5.           Support multi output resolution;

6.           Support digital audio format LPCM/AC3/DTS

Specifications

1.           Video Bandwidth                          225MHz[6.75Gbps]

2.           Input Ports                                   2 × HDMI (Female type)

3.           Output Ports                                1 × HDMI (Female type),

4.           Audio output                                PCM2, 5.1, 7.1CH, Dolby 5.1, DTS5.1

5.           Input Resolution                           480i60Hz,480p60Hz,576i50Hz,576p50Hz,720p50/60Hz,

                                                                  1080i50/60Hz,1080p24/30/50/60Hz,800x600@60,

                                                                  1024x768@60,1280x720@60,1920x1080@60;

6.           Output Resolution                       1080p,1080i,720p,1024x768,1360x768

7.           ESD Protection                            Human Body model:   ±8 kV (air-gap discharge)

                                                                                                     ±4 kV (contact discharge)

8.     Power Supply                                    5V/1A DC (US/EU standards, CE/FCC/UL certified)

9.     Dimensions                                       70 mm (W)×140mm (D)×25 mm (H)

10.    Weight                                              300 g

11.    Chassis Material                               Metal

12.    Silkscreen Color                               Black

13.    Operating Temperature                   0 °C~40 °C/ 32 °F~104 °F

14.    Storage Temperature                      −20 °C ~ 60 °C/−4 °F ~140 °F

15.    Relative Humidity                             20~90 % RH (non-condensing)

16.    Power Consumption (Max)               10W

Operation controls and Functions

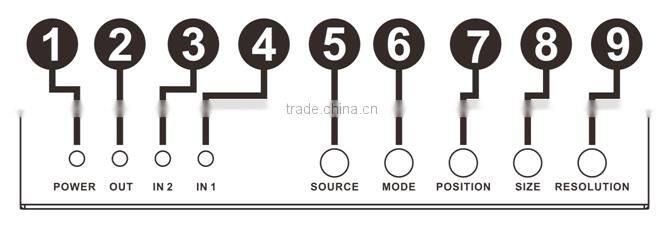

Front Panel

1.         POWER LED:This red LED illuminates when the device is connected with power supply.

2.         OUTPUT LED: Thisred LED illuminates when the TV plug in corresponding HDMI output

              Port.

3.         IN2 LED:This red LED illuminates when the HDMI IN2 is selected as main image.

4.         IN1 LED:This red LED illuminates when the HDMI IN1 is selected as main image.

5.         SOURCE: Press the button to select the input source as main image, and the LED will indicate the                     corresponding input source.

6.         MODE: Press the button to select display mode.See the description 1.

7.         POSITION: Press the button to select the position of sub image when in PIP mode.

8.         SIZE: Press the button to select the size of sub image when in PIP mode.

9.         RESOLUTION: Press the button to select the output resolution.

NO.

RESOLUTION

1

1080P, Main image audio

2

1080I, Main image audio

3

720P, Main image audio

4

1024x768, Main image audio

5

1360x768, Main image audio

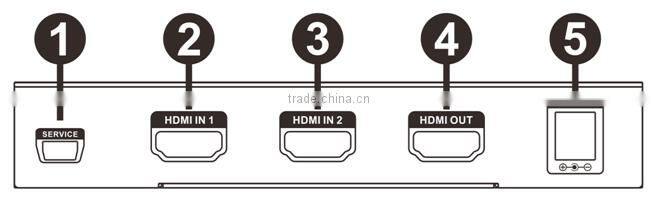

Rear Panel

1.           SERVICE: Connected to computer via RS232 tool, and controlled via host-computer software.

2.           HDMI IN1: This slot is where you connect the HDMI source output from DVD, PS3.

3.           HDMI IN2: This slot is where you connect the HDMI source output from DVD, PS3.

4.           HDMI OUTPUT: This slots is where you connect the HDTV or monitor with HDMI cable.

5.           DC 5V IN: Plug the 5V DC power supply into the unit and connect the adapter to AC wall outlet.

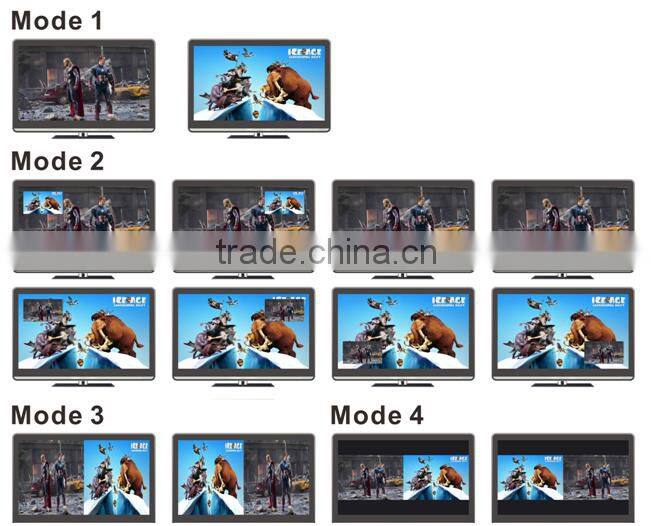

Description 1  Mode Introduction:

1.         Mode 1: One-view mode

2.         Mode 2: PIP mode

3.         Mode3: POP mode A

4.         Mode 4: POP mode B

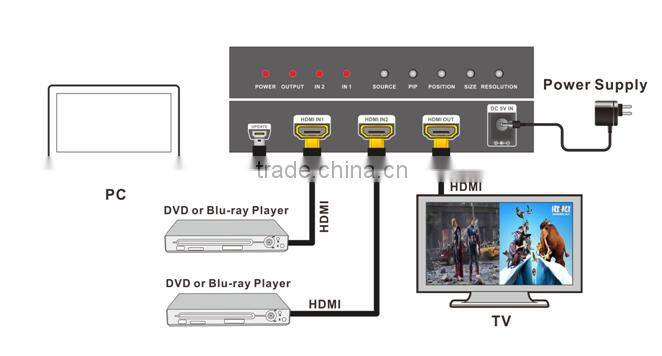

Application Example

Package

1.         HDMI 2x1 Multi-Viewer ------------------------------------------------------------------ 1PC

2.         5V1A DC Power adapter ----------------------------------------------------------------- 1PC

3.         Operation Manual ------------------------------------------------------------------------- 1PC
