High quality 3 by 1 HDMI Switcher with ARC, HDMI 1.4

Specifications

1. The output port supporting Audio Return Channel (ARC)
2. HDMI v1.4 supports:- 4Kx2K@30Hz-Audio Return Channel (ARC)- -3D

I. Introduction

This is a high performance HDMI Switcher with three/four HDMI inputs & one output HDMI Switcher, the HDMI Switcher provides an S/PDIF link and earphone to output the HDMI source audio.the S/PDIF link support Audio Return Channel (ARC) from a compaitble ARC TV following the HDMI v1.4 specification.



II. Feature

Supports multiplexed HDMI 3/4-input and 1-output

The output port supporting Audio Return Channel (ARC)

HDMI v1.4 supports:- 4Kx2K@30Hz-Audio Return Channel (ARC)- -3D

Deep Color support 36/30/24-bit

Audio EDID select fuction.

Supports CEC bypass on HDMI out

Support digital audio format ,DTS-HD/Dolby-True HD/LPCM7.1/AC3/DTS/DSD

Super wideband IR control system, IR transport channel can be forward or backward.



III. Package Contents

HDMI Swithcer            1pcs

5V/1A DC power adaptor    1pcs

Remote Control               1pcs

Operation Manual             1pcs

38KHz IR Receiver           1pcs

HDMI IR adaptor(option)      1pcs

Wideband IR Tx/Rx(option)     1pcs





IV. Specification

Video Bandwidth        300MHz/10.2 Gbps

Input Ports            3/4 × HDMI (Female type)

Output Ports        1 × HDMI (Female type)

Output Resolution      480i ~1080p50/60, 4Kx2K@24/30, VGA~UXGA

HDMI Cable In             1080p/12bits (15m)

HDMI Cable Out         1080p/12bits (15m)

ESD Protection            Human Body model:  ±8 kV (air-gap discharge)

                                                   ±4 kV (contact discharge)

Power Supply              5 V/1A DC (US/EU standards, CE/FCC/UL certified)

Dimensions          70 mm (W) × 145 mm (D) × 25 mm (H) (3 by 1 switcher)

                 82 mm (W) × 190 mm (D) × 26 mm (H) (4 by 1 switcher)

Weight                          350 g (3 by 1 switcher)

                        430 g (4 by 1 switcher)

Chassis Material                 Metal

Silkscreen Color                 Black

Operating Temperature             0 °C~40 °C/ 32 °F~104 °F

Storage Temperature           −20 °C ~ 60 °C/−4 °F ~140 °F

Relative Humidity             20~90 % RH (non-condensing)

Power Consumption          1.5 W



V. Remote Control

1. Input source select botton,the panel LED will indicate the input source status .

2. Audio EDID select botton,the panel LED will indicate the select EDID status.

2.0CH: the switcher will modify the HDMI audio      part EDID for support 2.0CH to source.

5.1CH: the switcher will modify the HDMI audio part EDID for support 5.1CH to source.

7.1CH: the switcher will modify the HDMI audio part EDID for support 7.1CH to source.

AUTO: the switcher will copy the sink EDID to source.

ARC: open/close the ARC fuction.

3. No fuction

VI. Connect and Operate

Connect the signal sources such as Blu-Ray Player, Play Station 3, audio/video receiver, satellite receivers and computers equipped with HDMI output interfaces with a short high-speed HDMI cable to the HDMI Switcher inputs.

Connect the HDMI output from the HDMI Switcher to a high-definition display device such as HD-LCD, HD-DLP and HD projectors with HDMI input interfaces. Use high-speed HDMI cables that are recommended for the distances that are required for each connection.

The Switcher is powered by an external power supply which is included. Connect power first to the source, then to the Switcher and then to HD TV or projector.

The input source can be controlled from the display. This is accomplished by using an optional IR Receiver pigtail pointing away from the display(s), which can be connected with the optional HDMI IR Adapter , and inserted between the HDMI cable connector and the display with the toggle switcher at the “IR” position. The IR Transmitter pigtail is then connected to the switcher and pointed to the source(s). The switcher also have the capability of being controlled via Remote control.

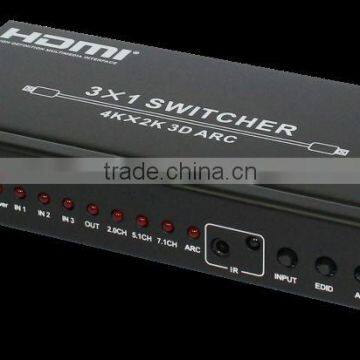

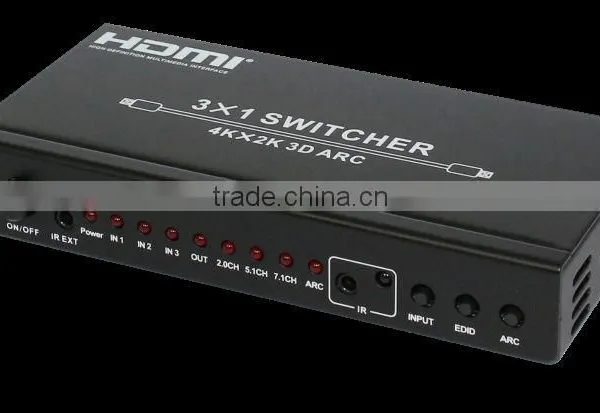

1. 3 by 1 HDMI Switcher

ON/OFF: Power on/off switch.

IR EXT: This 3.5mm phone for super IR control system extend.

POWER LED: This red LED illuminate when the device is connected with power supply.

IN1,2,3 LED: These red LED illuminate when the output select to the corresponding input.

OUT LED: This red LED illuminate when the HDMI output plug to HDTV.

2.0,5.1,7.1 LED: These red LED illuminate when the audio EDID select to corresponding audio.

ARC LED: This red LED illuminate when the ARC fuction open.

IR : Remote control receiver,the 3.5mm phone for HDMI switcher IR extend.

INPUT BUTTON:Press this button to select the input source.

EDID BUTTON: Press this button to select the 2.0CH,5.1CH,7.1CH,Auto audio EDID mode.

ARC BUTTON:Press this button to open or close the ARC fuction.

ARC fuciton : If you need use ARC,your HDTV must support this fuction, When you open the ARC fuciton,the Toslink of the Matrix will output the HDTV current display content audio. Otherwise will output the Matrix input source audio.

Input Source: These slot is where you connect the HDMI or Display Port source output from DVD, PS3,Set-top Box and Note Book.

OUTPUT: This slot is where you connect the HDTV or monitor with HDMI cable for input source display.

Toslink OUT: This slot is where you connect to the amplifier with optical fiber cable.

Stereo OUT: This slot is where you connect to the speaker with 3.5mm earphone cable. The audio support LPCM only,When HDMI input is compress audio format(Dolby,DTS,DTS-HD,etc),the stereo audio out will mute.

DC 5V: Plug the 5V DC power supply into the unit and connect the adaptor to AC wall outlet.

2. 4 by 1 HDMI Switcher

ON/OFF: Power on/off switch.

POWER LED: This red LED illuminate when the device is connected with power supply.

IN1,2,3,4 LED: These red LED illuminate when the output select to the corresponding input.

OUT LED: This red LED illuminate when the HDMI output plug to HDTV.

2.0,5.1,7.1 LED: These red LED illuminate when the audio EDID select to corresponding audio.

ARC LED: This red LED illuminate when the ARC fuction open.

IR : Remote control receiver,the 3.5mm phone for HDMI switcher IR extend.

IR EXT: This 3.5mm phone for super IR control system extend.

INPUT BUTTON:Press this button to select the input source.

EDID BUTTON: Press this button to select the 2.0CH,5.1CH,7.1CH,Auto audio EDID mode.

ARC BUTTON:Press this button to open or close the ARC fuction.

ARC fuciton : If you need use ARC,your HDTV must support this fuction, When you open the ARC fuciton,the Toslink of the Matrix will output the HDTV current display content audio. Otherwise will output the Matrix input source audio.

RST BUTTON: Press this button the switcher will reset to factory state(INPUT1, Auto EDID MODE,ARC FUCTION CLOSED)

Input Source: These slot is where you connect the HDMI or Display Port source output from DVD, PS3,Set-top Box and Note Book.

OUTPUT: This slot is where you connect the HDTV or monitor with HDMI cable for input source display.

Toslink OUT: This slot is where you connect to the amplifier with optical fiber cable.

Stereo OUT: This slot is where you connect to the speaker with 3.5mm earphone cable. The audio support LPCM only,When HDMI input is compress audio format(Dolby,DTS,DTS-HD,etc),the stereo audio out will mute.

DC 5V: Plug the 5V DC power supply into the unit and connect the adaptor to AC wall outlet.





VII. Connection Diagram
