HDMI 1.4a ,HDMI Matrix Switch 2 x 2, 4k x 2k, 3D,Newest

HDMI 1.4a ,HDMI Matrix Switch 2 x 2, 4k x 2k, 3D,Newest thumbnail-1
HDMI 1.4a ,HDMI Matrix Switch 2 x 2, 4k x 2k, 3D,Newest photo-1
Negotiable MOQ: 10 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Play vision
Model Number:
HDM-922
Contact Supplier Request Quote Chat Now
Shenzhen HDCVT Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Play vision
Model Number HDM-922

Specifications

1. Support display resolutions up to 4K x 2K@30Hz,1080P@120Hz,and 1080P 3D@60Hz
2. 3D HDMI 1.4a video format support.


Product Description

  • Introduction

    HDM-922 is a 2-by-2 DVI/HDMI matrix with 4Kx2K. It allows any source (Blue-Ray player, HD DVD player, satellite receiver, game system, etc.) to be shown on the any of the two displays simultaneously, no matter the source is HDCP or not. Extra infrared receiver port is supplied for remote control. HDM-922 offers solutions for digital entertainment center, HDTV retail and show site, HDTV, STB, DVD and projector factory, noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments, etc.

Features

  1. Support display resolutions up to 4K x 2K@30Hz,1080P@120Hz,and 1080P 3D@60Hz

  2. 3D HDMI 1.4a video format support.

  3. 3D video support including Frame packing for all 3D formats up to a 297MHz TMDS clock.

  4. Supports deep color up to 48-bit per pixel.

  5. HDCP 1.4 support (INPUT), HDCP v1.4a protocol compliant (OUTPUT).

  6. Supports the reception of any audio data conforming to the HDMI specification 1.4 such ad L-PCM at up to 192kHz,compressed audio(IEC 61937),DSD,DST,DTS and HBR

  7. Full colorimetry including sYCC601,Adobe RGB, Adobe YCC601,xvYCC extended gamut color

  8. Operates for TMDS clock frequencies up to 300MHz

Package

  1. HDMI Matrix ------------------------------------------------------------------------------ 1PCS

  2. 5V1A DC Power Supply adaptor ------------------------------------------------------- 1PCS

  3. Operation Manual ------------------------------------------------------------------------- 1PCS

  4. Remote controller---------------------------------------------------------------------------1PCS

Specifications

  1. Frequency Bandwidth                             2.97Gbps

  2. Input Ports                         2 x HDMI Female input ports

  3. Output Ports                       2 x HDMI Female output ports

  4. Power Supply                       DC 5V 1A

  5. ESD Protection Human Body Model:   ± 8kV (air-gap discharge)

    ± 4kV (contact discharge)

  6. Dimensions (mm)                   70(W) X 145 (D) X 25 (H)

  7. Weight(g)                         300

  8. Power Consumption (Max)       5W

Operation controls and Functions

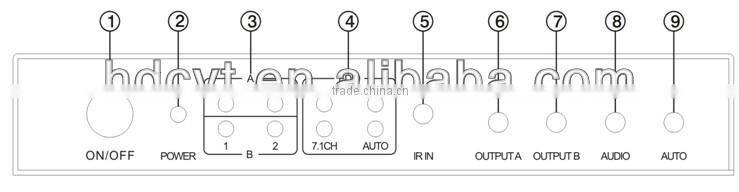

Front Panel

HDMI 1.4a ,HDMI Matrix switch 2 x 2, 4k x 2k, 3D,Newest

  1. ON/OFF: Power on/off switch.

  2. POWER LED:This red LED illuminate when the device is connected with power supply.

  3. INPUT LED: These red LED illuminate when the output select to the corresponding input.

  4. EDID LED: These red LED illuminate when the EDID select to corresponding items.

             2.0CH LED illuminate indicate that force to output 2.0CH audio.

               5.1CH LED illuminate indicate that force to output 5.1CH audio.

               7.1CH LED illuminate indicate that force to output 7.1CH audio

               AUTO LED illuminate indicate that in AUTO mode.

  5. IR IN: Remote control signal receive.

  6. OUTPUT A: Press this button to select the input source to HDMI OUT A.

  7. OUTPUT B: Press this button to select the input source to HDMI OUT B.

  8. AUDIO:Press this button to select the 2.0CH, 5.1CH, 7.1CH audio output mode.

  9. AUTO:Press this button to into AUTO mode.

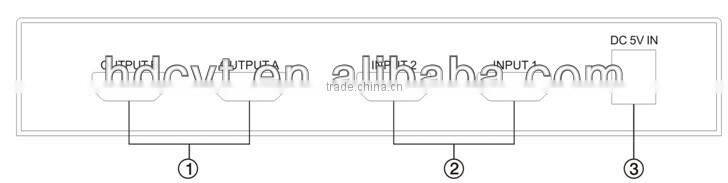

Rear Panel

HDMI 1.4a ,HDMI Matrix switch 2 x 2, 4k x 2k, 3D,Newest

  1. HDMI OUTPUT: These slots are where you connect the HDTV or monitor with HDMI cable.

  2. HDMI INPUT: These slots are where you connect the HDMI source output from DVD, PS3.

  3. DC IN: Plug the 5V DC power supply into the unit and connect the adaptor to AC wall outlet.

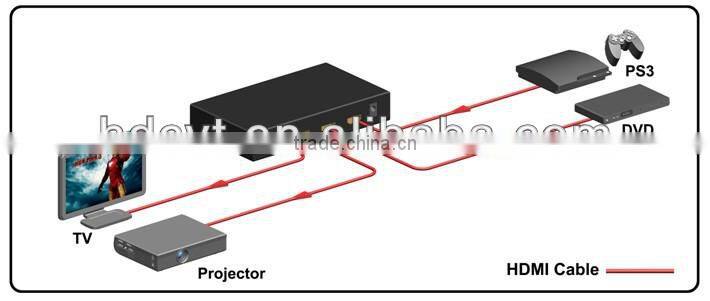

Application Example

HDMI 1.4a ,HDMI Matrix switch 2 x 2, 4k x 2k, 3D,Newest

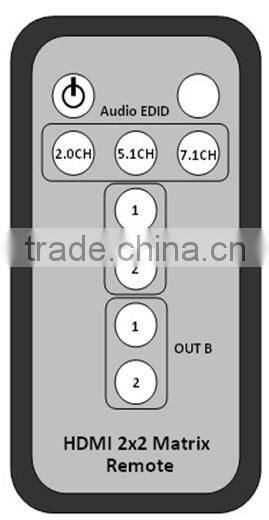

Remote control

HDMI 1.4a ,HDMI Matrix switch 2 x 2, 4k x 2k, 3D,Newest

STANDBY: Press this button will standby or power on the matrix.

AUTO: Press this button will set output A and B to read and compare the EDID from TV, and then get the same parameter to display on TV. When in auto mode the AUTO LED will illuminate.

2.0CH: Press this button will force A and B output 2.0CH audio HDMI signal.

5.1CH: Press this button will force A and B output 5.1CH audio HDMI signal.

7.1CH: Press this button will force A and B output 7.1CH audio HDMI signal.

OUTA: Press these buttons will fast switch to select input source to HDMI OUTB, and the LED will indicate the corresponding input source.

OUTB: Press these buttons will fast switch to select input source to HDMI OUTB, and the LED will indicate the corresponding input source.
