Specifications

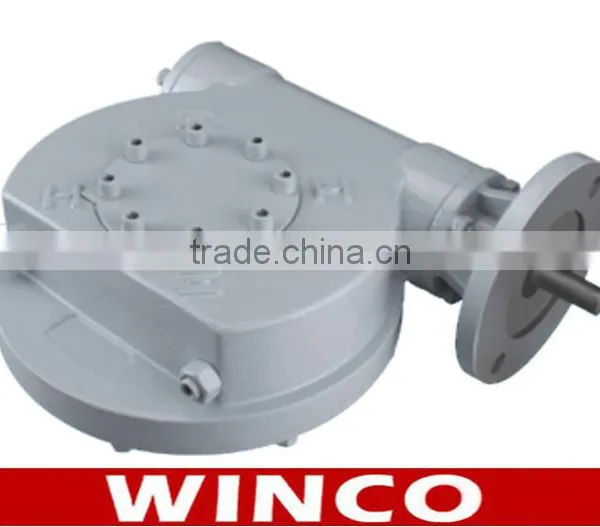

RW series part-turn gearboxes are used for manual and motorised applications of ball,butterfly,plug values and dampers.1.Introduction
Roysol RW series Part-turn Gearbox is precison device with high quality and safety,intended to reduce the speed and increase the torque.It is easy to process axis hole and key groove because of the removable sleeve.
2.Characters
1.Totally enclosed gearing
2.Grease filled for longer life
3.Comprehensive gear ratios for different application
4.Removable output sleeve
5.Optional travelling sleeve
6.Adjustable stopper( ±5°)
7.Optional flange to suit for different type of valve
3.Options
IP68 Radial arm
Stage reducer Travelling nut
Stopper Input flanges suit for electric actuator
4.Connect with valve
The flange connecting to valve is according to ENISO5210 or DIN3210(Customization).

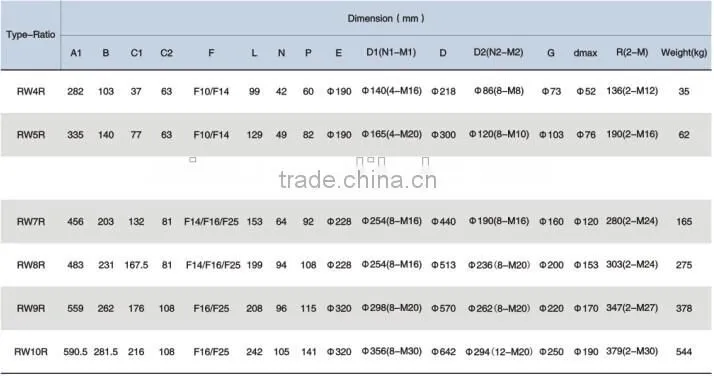

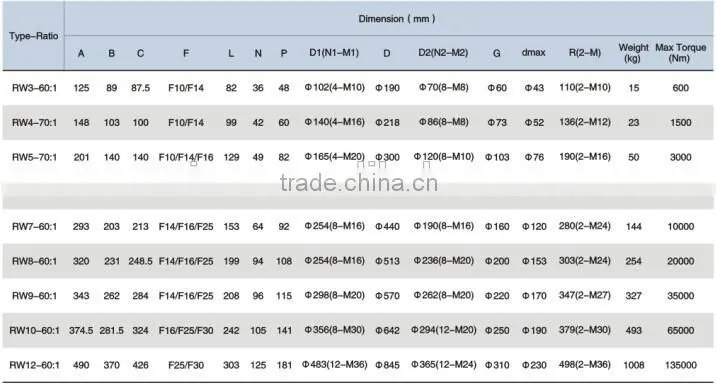

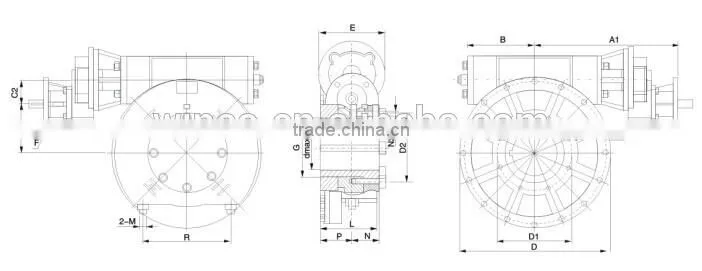

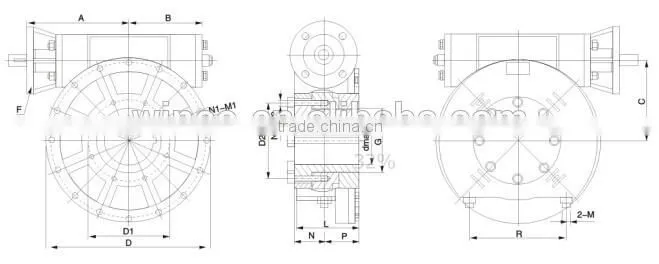

5.Drawing
