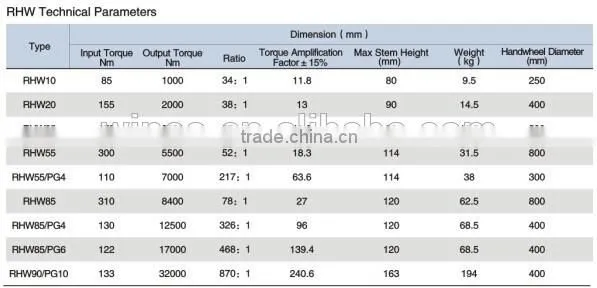

Specifications

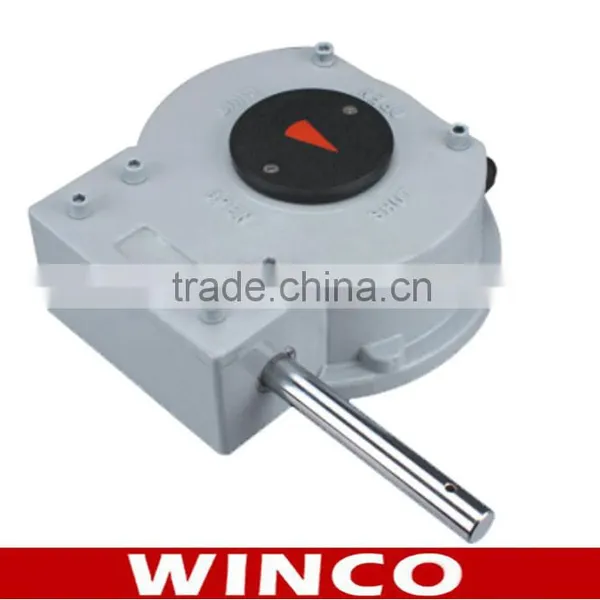

RHW part turn gearboxes are applied to dampers,ball,butterfly valves ect.1.Introduction
Roysol RHW series Part-turn Gearboxes use worm and worm wheel revolute pairs,which can satisfy the thrust requirements with high performance needle roller bearing assembled on both ends of the worm in compact structure.It is in high mechanical efficiency,small size,convenient operation,has reliable self-locking performance which can also withstand big torque.
2.Characters
1.Ductile iron housing(Cast steel for option)
2.Optional output torque,range up to 32000Nm
3.High efficient needle roller bearing
4.High strength steel input shaft
5.Stroke 0°- 90°( ±5°)6.Compact structure
7.Grease filled for longer life
8.Adjustable stopper ( ±5°)
9.Good seal
3.Connect with valve
The flange connecting to valve is according to ENISO5210 or DIN3210(Customization).

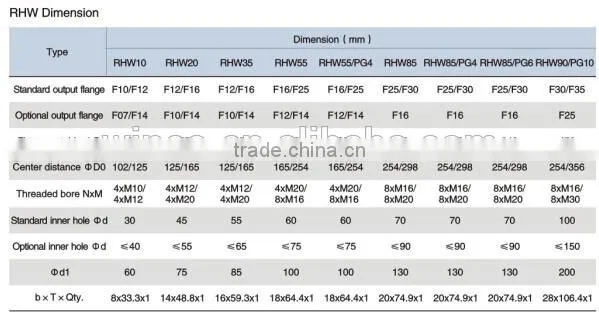

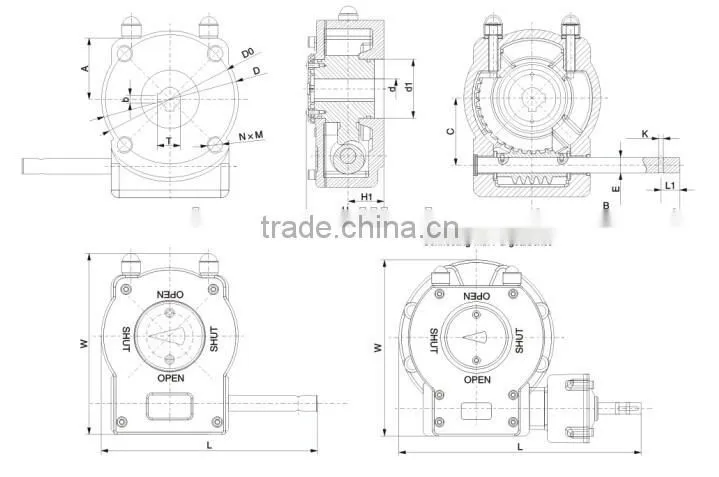

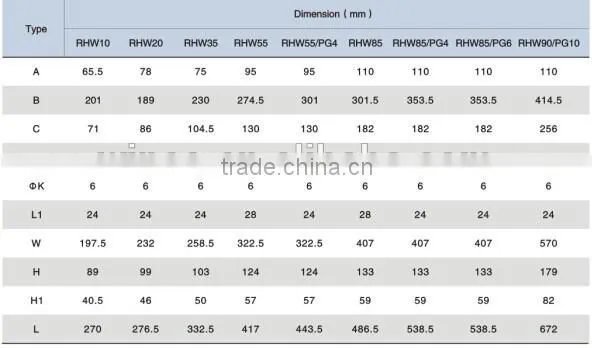

4.Drawing
