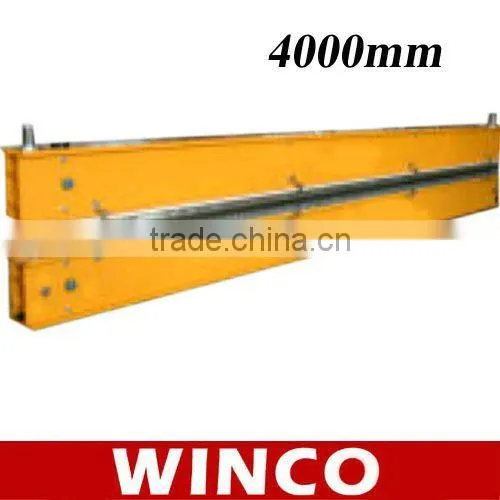

Beltwin 5 Bar 4000mm Width Air Press for Jointing PVC Belt

Beltwin 5 Bar 4000mm Width Air Press for Jointing PVC Belt thumbnail-1
Beltwin 5 Bar 4000mm Width Air Press for Jointing PVC Belt photo-1
US$ 2,000 - 20,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Vulcanizer
Place of Origin:
Zhejiang, China
Contact Supplier Request Quote Chat Now
Wenzhou Winco Imp&Exp Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shangai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Vulcanizer
Place of Origin Zhejiang, China
Brand Name Beltwin
Model Number DLPVC-4000mm
Voltage 220V 380V
Power(W) 9600
Dimension(L*W*H) 4350x200x760
Weight 430kgs
Certification ISO9001
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.Special for PVC PE PU belt
2.Water Cooling system within platens
3.Temperature range: 0~200C
4.Air pressure bag 0~0.7mpa

1. Specification

Splicing PVC, Polyurethane, and Polyester Monofilament synthetic belting



  • 1200mm width (other width on your request)
  • Easy and quick pressure build-up by means of compressed air, 0~0.3Mpa (can adjust)
  • Used for PVC belt, Polyurethane belt (PU belt) and Polyester Monofilament synthetic belting
  • Rapid Cooling system within platens
  • Reliable and automatic Temperature Control Panel with time control
  • Light weight construction with aluminum profiles
  • Temperature regulation between 0° to 200°C
  • Voltage: 220V or 380V, 400V, 415, 480V etc., other voltages on request.
  • Integrated air control with pressure gauge and safety valve
  • Packing Dimension: 2430*580*590mm
  • Gross Weight: 200KGS
Technical Datasheet:
Model Heating plate size LxW (mm) Width of the belt (mm) Total Power (W) Dimension (LxWxH) mm Total Weight KGS
DLPVC – 100×200 100×200 200 560 330 x 135 x 180 7
DLPVC – 150×250 150×250 250 1000 350 x 192 x 180 10
DLPVC -160×400 160×400 400 2200 550 x 215 x 200 20
DLPVC – 200×500 700×200 500 2300 700x200x 230 40
DLPVC – 200×600 800×200 600 2400 800x 200x 230 60
DLPVC – 200×800 1000×200 800 2800 100 0x 200x 250 90
DLPVC -200×1000 1050×200 1000 3200 1200x 200x 250 110
DLPVC -200×1200 1250×200 1200 3600 1450 x 200x 250 125
DLPVC -200×1500 1650×200 1500 4000 1850x200x460 165
DLPVC – 200×1600 1750×200 1600 4800 1950x200x460 175
DLPVC -200×1800 1950×200 1800 5280 2150x200x460 195
DLPVC-200×2000 2150×200 2000 5920 2350x200x460 210
DLPVC-200×2200 2350×200 2200 6800 2550x200x460 230
DLPVC-200×2500 2650×200 2500 8200 2850x200x620 275
DLPVC-200×3000 3150×200 3000 8800 3350x200x660 320
DLPVC-200×4000 4150×200 4000 9600 4350x200x760 430

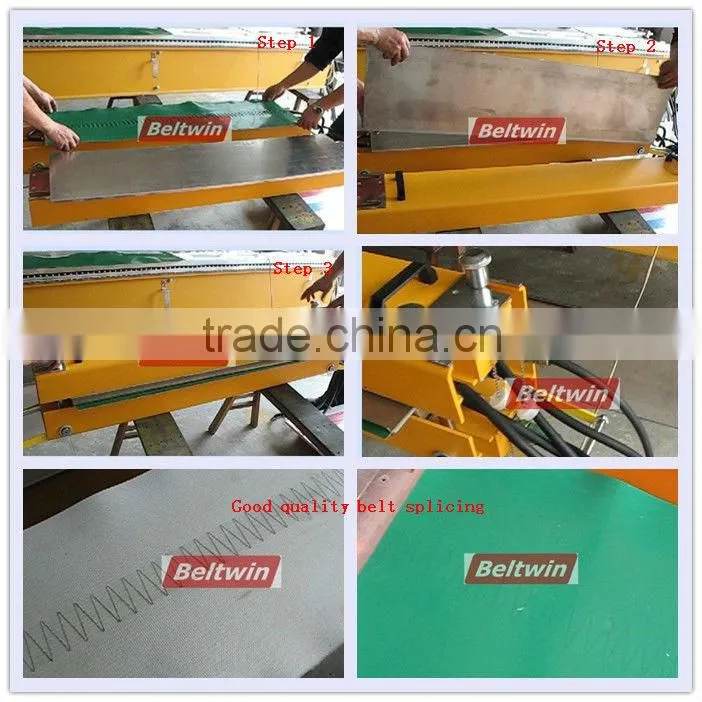

How to work:

Beltwin 5 Bar 4000mm width Air Press for jointing PVC Belt

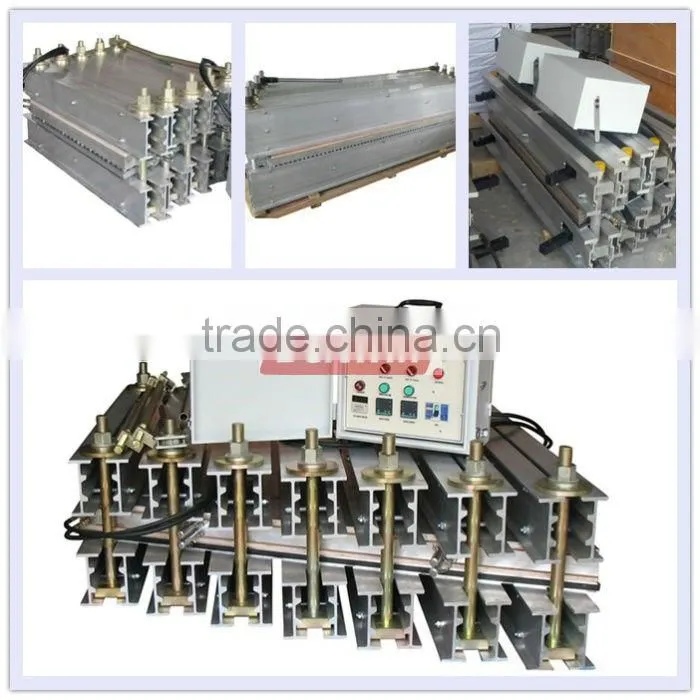

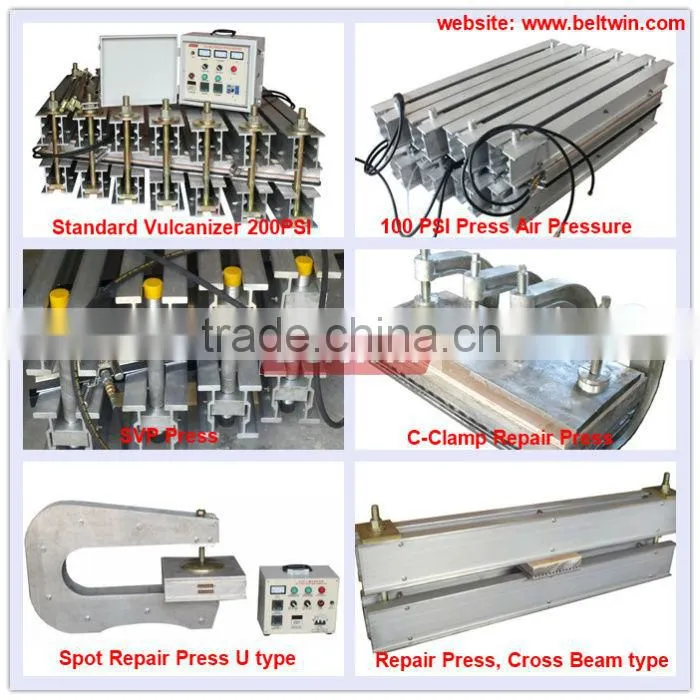

5. Other machines we can supply: more information pls freely to visit our website

Beltwin 5 Bar 4000mm width Air Press for jointing PVC Belt

Beltwin 5 Bar 4000mm width Air Press for jointing PVC Belt Beltwin 5 Bar 4000mm width Air Press for jointing PVC Belt

Beltwin 5 Bar 4000mm width Air Press for jointing PVC Belt

6. Packing:

Beltwin 5 Bar 4000mm width Air Press for jointing PVC Belt

7. Some shipping records, air shipment and sea shipment bill of ladings

 Beltwin 5 Bar 4000mm width Air Press for jointing PVC Belt

8. Working photos from customers

  Beltwin 5 Bar 4000mm width Air Press for jointing PVC Belt
