Help CenterBeltwin 2016 New Plate Vulcanisateur Machine for Jointing Rubber Belting
Related Products
-
Beltwin SVP Platen Vulcanizer Press OEM for Rubber Conveyor Belt SpliceUS$ 5,000 - 50,000MOQ: 1 Piece -
Beltwin ODM Svp Vulcanizing Equipment for Rubber Conveyor Belt SpliceUS$ 5,000 - 50,000MOQ: 1 Piece
-
Beltwin Industral Connecting Fabric Steelcord Belt Splicing VulcanizerUS$ 5,000 - 50,000MOQ: 1 Piece
-
Beltwin 100psi200psi Effective Belt Splicing Vulcanizer for Jointing Fabric, SteelcordUS$ 5,000 - 50,000MOQ: 1 Piece
-
Plate Vulcanizer Press Manufature for Bonding Rubber Conveyor BeltUS$ 5,000 - 20,000MOQ: 1 Unit
More Considerate; More Professional
All our services just go for you
Beltwin’s rich experience in conveyor belt vulcanizing industry
allows for higher technical requirements of customers
1.Convertor Belt Repairs Almex svp pro nilos fonmar
2.Conveyor Belt Splicing on Steel Cord Belts
3.Conveyor Belt Splicing,Fabric Belts,PVC
4.Transmission Belts, Tangential Belt, Spindle Tape Splicing

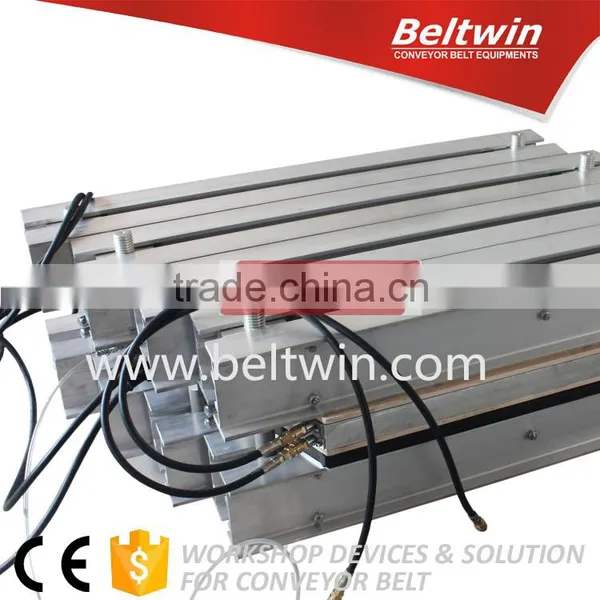

Beltwin plate vulcanisateur machine for jointing rubber belting
Packaging Details: |
Wooden box |
Delivery Detail: |
20 working days |
ex svp pro nilos fonma
1.When order or inquiry, pls offer below informaiton:
(FRENCH:Quand l'ordre ou de l'enquête, pls offrir informations ci-dessous)
| 1.Heating platen length | (A=?) |
| 2.Belt max width | (B=?) |
| 3.Working pressure | 100PSI / 200PSI |
| 4.Working voltage | 380V/ 660V / 480V / 440V / 415V / 400V or 20V |
| What kind of press | normal type or 2pcs type |
Any other special requirement pls contact us.
More informaiton pls freely to visit our website:
Belt width: from 650mm to 3000mm
Degree of the heating platen: 22 °/17 °/ 20 ° (rectangle and other degree is optional)
Surface pressure for textile and steel cord belts, Up to 1.8Mpa.
Waterbag/ air pressure Press for 100PSI, 200PSI etc.
- 100 p.s.i. (7 kg/cm sq.) units suitable for splicing fabric ply belting
- 200 p.s.i. (14 kg/cm sq.) units suitable for splicing steel cord conveyor belting
- Customization/OEM:Different heating platen size and combination
2. Technical Parameters
- Vulcanizing temperature:
145℃ (adjustable 0~200℃)
- Temperature-rising time (from normal temp to vulcanizing temp):
≤50 mins(around 25~30 mins normally)
- Improved cooling system: using pressure pump for cooling:
only 5mins (cooling from 145 to 75 degrees)
3. Specification Beltwin platen vulcanizer press OEM for rubber conveyor belt splice
1. 100 p.s.i. (7 kg/cm sq.) units suitable for splicing fabric ply belting.
2. 200 p.s.i. (14 kg/cm sq.) units suitable for splicing steelcord conveyor belting.

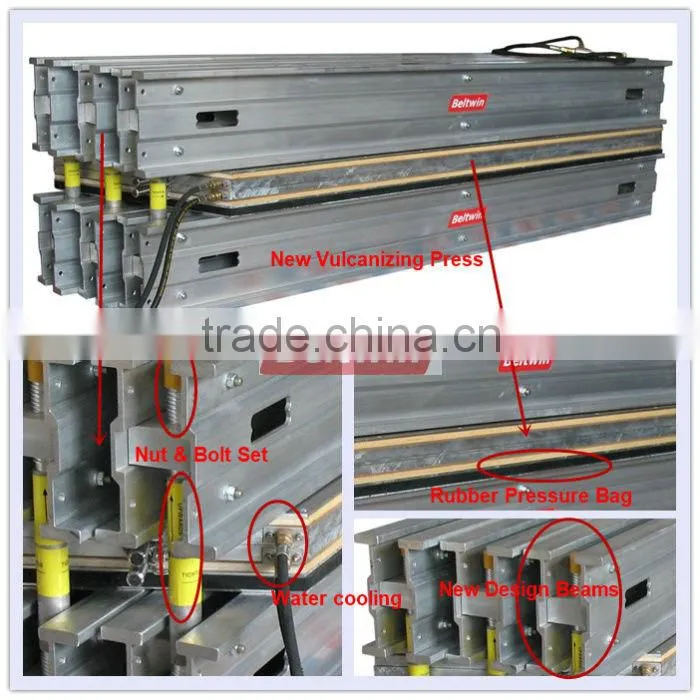

4. Main componets
1. Aluminum Frame (Spanner Bars):
High quality aluminum, designed for any belt width or operating pressure (from EA up to E430)
4.New electric connect system (Old flat plug & socket design: plug pins broken easily)
5. Automaitc control panel
5. CE
|
|
|
|
Sincerely Looking forward to your inquiry
Our products and service are worth of your serious consideration
