Home > Electrical & Electronics > Switch > Other Switches > 1021 T511B C511B Hand Control Toggle Switch
US$ 0.45 - 1.5
MOQ: 20 Pieces
Key Specifications
Get Latest Price
Brand Name:
TENN
Model Number:
1021 T511B C511B
Max. Current:
15A
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo/shanghai/guangdong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1021 T511B C511B Taiwan Standard Toggle SwitchUS$ 0.45 - 1.5MOQ: 20 Pieces -
TZ-7310 AZ-7310 High Temperature Door Limit SwitchesUS$ 1 - 5MOQ: 10 Pieces
-
TZ-7310 AZ-7310 Micro Limit Switch 250VAC 10AUS$ 1 - 5MOQ: 10 Pieces
-
Limit Swith TZ-7310 AZ-7310US$ 1 - 5MOQ: 10 Pieces
-
Waterproof Push Tactile Micro Switches TZ-7310 AZ-7310US$ 1 - 5MOQ: 10 Pieces
Brand Name
TENN
Model Number
1021 T511B C511B
Max. Current
15A
Max. Voltage
250V
Specifications
1. 15A 250V2. Tab terminal is optional
3.Spring return is optional
4.Waterproof cap is optional
1.Series reference
| Toggle Switch 15A | 1021 2P On-Off |
| Toggle Switch 15A | 1121 3P On-On |
| Toggle Switch 15A | 1122 3P On-Off-On |
| Toggle Switch 15A | 1221 4P On-Off |
| Toggle Switch 15A | 1321 6P On-On |
| Toggle Switch 15A | 1322 6P On-Off-On |
2. Specification
- Current: 10A or 15A
- Fixed type and auto-return type (spring return)
- Connect terminal normal is screw terminal, also can select solder terminal and tab terminal (pin type)
- Rainproof cap, water-proof and oil-proof
- Mounting hole: 12mm
- Contact resistance: 15MQ max. (initial)
- Insulation resistance: 100M Q above under 500VDC
- Dielectric strength: 2000VAC, 50/60HZ For 1 minute
- Frequency: 10 to 55Hz, 1.5mm double amplitude
- Ambient temperature: -25C~+80C
- Humidity: 85% RH max.
- Mechanical Life time: 500,000 operations/min.
- Electrical Life time: 100,000 operations/min.
type | AC Load | DC Load |
10A | 10A 250V 15A 125V | 0.4A 250V 0.8A 125V |
15A | 15A 250V 20A 125V | 0.5A 250V 0.9A 125V |
10A | 10A 250V 15A 250V | 0.2A 250V 0.4A 125V |
15A | 15A 250V 20A 125V | 0.3A 250V 0.5A 125V 15A 30V |
10A | 300W 100V 500W 200V | - |
15A | 400W 125V 800W 250V | 7A 30V |
10A | 200W 125V 300W 250V | - |
15A | 400W 125V single phase | |
10A | 550W 250V three phase | |
15A | 750W 250V three phase |

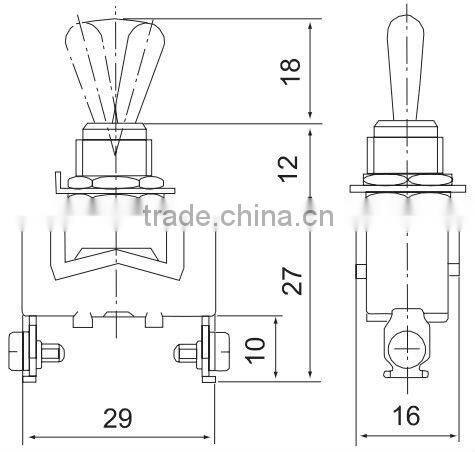

3. Dimension

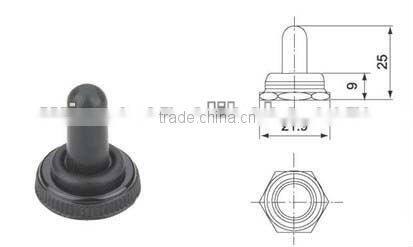

4. Waterproof Cap
5. Tab Terminal

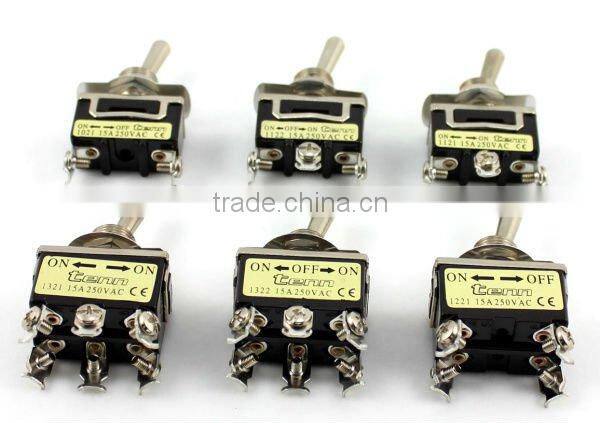

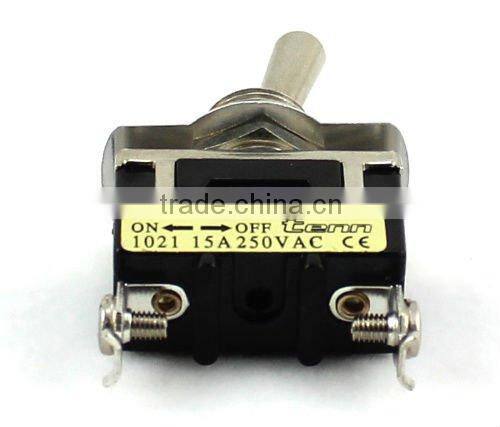

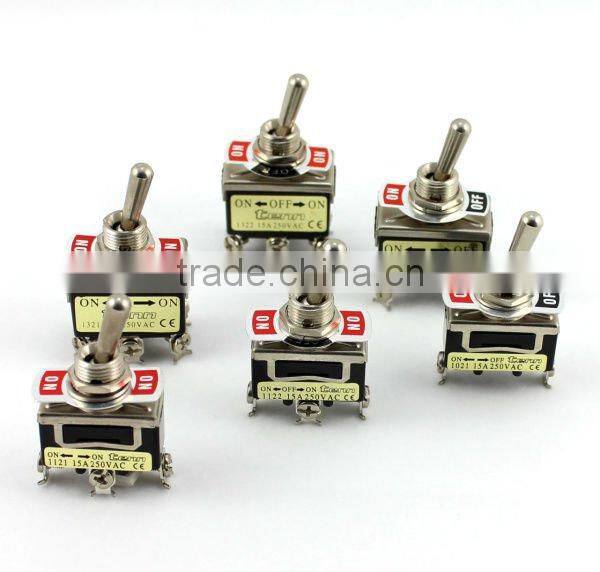

6.Product Photos
