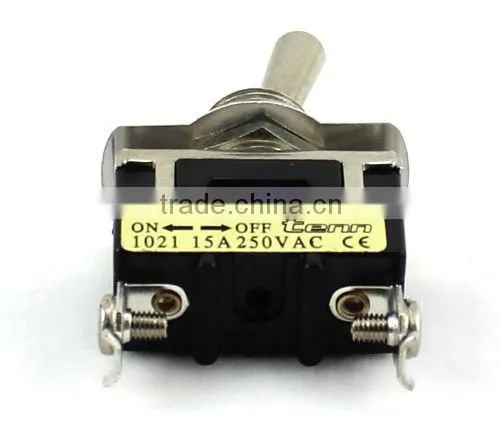

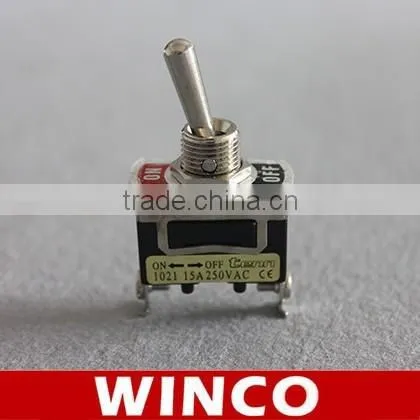

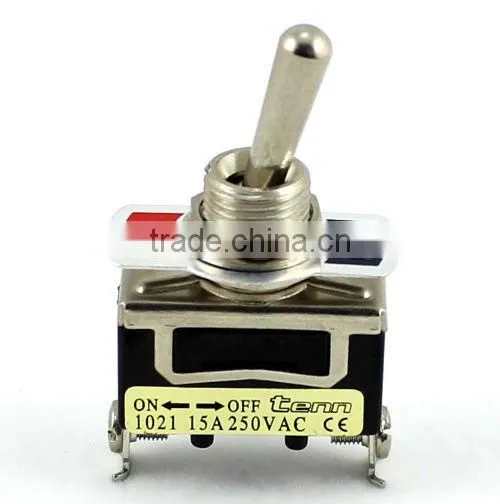

1021 T511B C511B taiwan standard Toggle Switch

Specifications

1. 15A 250V
2. Tab terminal is optional
3.Spring return is optional
4.Waterproof cap is optional

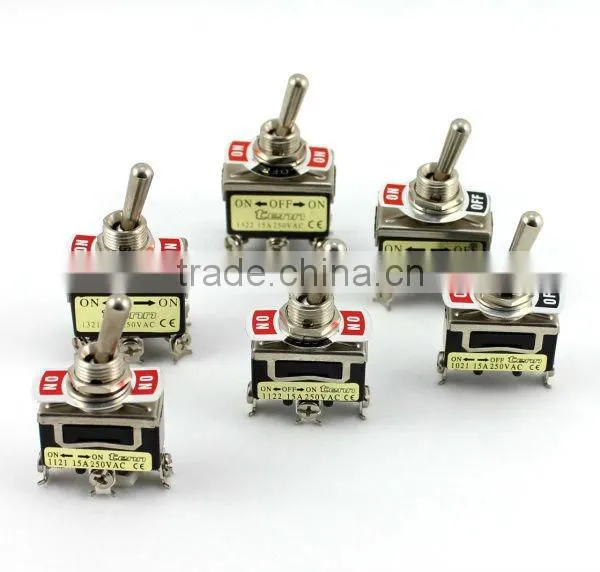

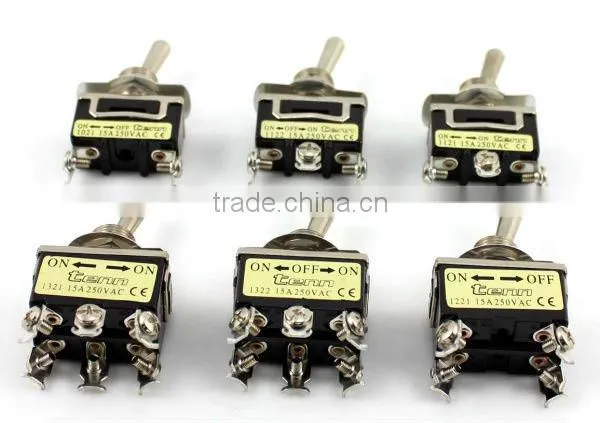

1.Series reference

Toggle Switch 15A	1021 2P On-Off
Toggle Switch 15A	1121 3P On-On
Toggle Switch 15A	1122 3P On-Off-On
Toggle Switch 15A	1221 4P On-Off
Toggle Switch 15A	1321 6P On-On
Toggle Switch 15A	1322 6P On-Off-On



2. Specification

• Current: 10A or 15A
• Fixed type and auto-return type (spring return)

• Connect terminal normal is screw terminal, also can select solder terminal and tab terminal (pin type)

• Rainproof cap, water-proof and oil-proof

• Mounting hole: 12mm

• Contact resistance: 15MQ max. (initial)

• Insulation resistance: 100M Q above under 500VDC

• Dielectric strength: 2000VAC, 50/60HZ For 1 minute

• Frequency: 10 to 55Hz, 1.5mm double amplitude

• Ambient temperature: -25C~+80C

• Humidity: 85% RH max.

• Mechanical Life time: 500,000 operations/min.

• Electrical Life time: 100,000 operations/min.

type	AC Load	DC Load
10A	10A 250V 15A 125V	0.4A 250V 0.8A 125V
15A	15A 250V 20A 125V	0.5A 250V 0.9A 125V
10A	10A 250V 15A 250V	0.2A 250V 0.4A 125V
15A	15A 250V 20A 125V	0.3A 250V 0.5A 125V 15A 30V
10A	300W 100V 500W 200V	-
15A	400W 125V 800W 250V	7A 30V
10A	200W 125V 300W 250V	-
15A	400W 125V single phase
10A	550W 250V three phase
15A	750W 250V three phase

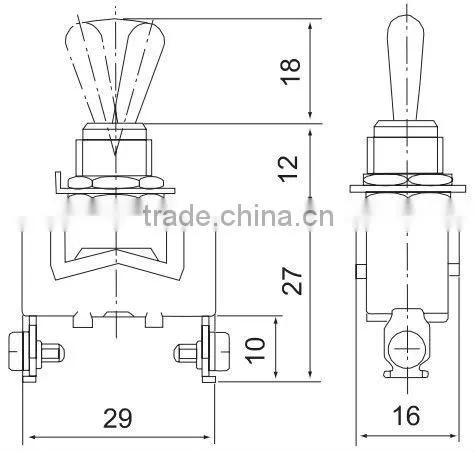

3. Dimension

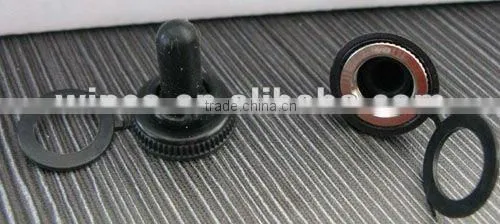

4. Waterproof Cap

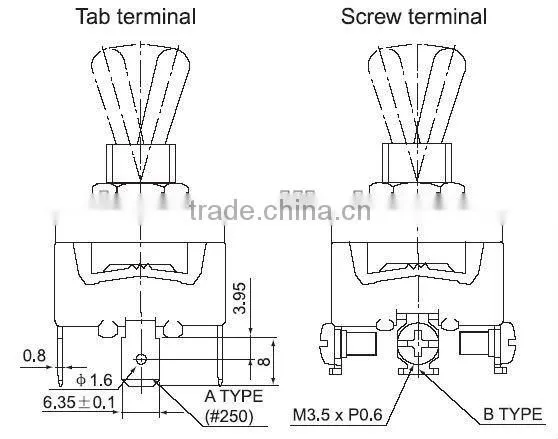

5. Tab Terminal
